102TL1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH TOGGLE DPDT 15A 125V

Part	Actuator Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Ingress Protection	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Actuator Length [x]	Mounting Type	Switch Function	Bushing Thread	Illumination	Circuit	Features
Honeywell Sensing and Productivity Solutions 102TL1-3G	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	15 A	12.4 mm	Locking Lever	IWTS	26.67 mm	Panel Mount	On-On	15/32-32	Non-Illuminated	DPDT
Honeywell Sensing and Productivity Solutions 102TL1-6	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	10 A	12.4 mm	Standard Round	IWTS	17.27 mm	Panel Mount	Off-Mom	15/32-32	Non-Illuminated	DPST-NO
Honeywell Sensing and Productivity Solutions 102TL1-10	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	15 A	12.4 mm	Standard Round	IWTS	17.27 mm	Panel Mount	On-On-On	15/32-32	Non-Illuminated	SP3T	Jumper needed to achieve triple throw

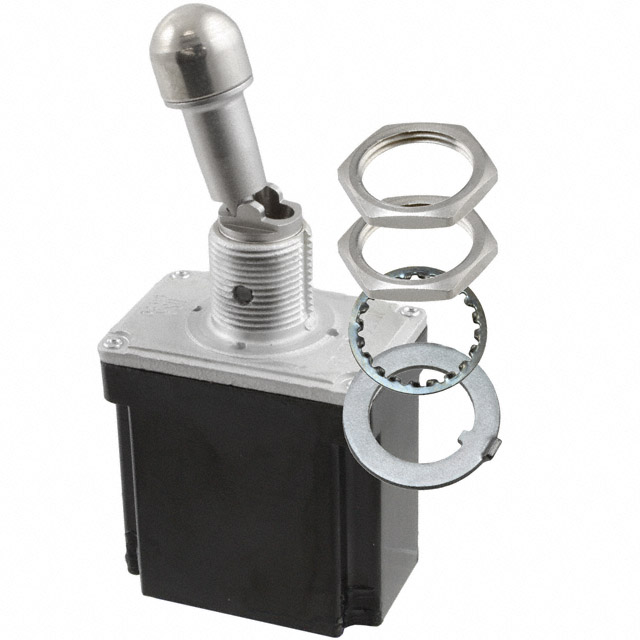

Honeywell Sensing and Productivity Solutions 102TL1-3D	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	15 A	12.4 mm	Locking Lever	IWTS	26.67 mm	Panel Mount	On-On	15/32-32	Non-Illuminated	DPDT
Honeywell Sensing and Productivity Solutions 102TL1-5	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	10 A	12.4 mm	Standard Round	IWTS	17.27 mm	Panel Mount	On-Off-Mom	15/32-32	Non-Illuminated	DPDT
Honeywell Sensing and Productivity Solutions 102TL1-1	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	15 A	12.4 mm	Standard Round	IWTS	17.27 mm	Panel Mount	On-Off-On	15/32-32	Non-Illuminated	DPDT
Honeywell Sensing and Productivity Solutions 102TL1-3F	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	15 A	12.4 mm	Locking Lever	IWTS	26.67 mm	Panel Mount	On-On	15/32-32	Non-Illuminated	DPDT
Honeywell Sensing and Productivity Solutions 102TL1-5K	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	10 A	12.4 mm	Locking Lever	IWTS	26.67 mm	Panel Mount	On-Off-Mom	15/32-32	Non-Illuminated	DPDT
Honeywell Sensing and Productivity Solutions 102TL1-8	Nickel Plated	-65 ░C	71 °C	125 V	Environment Sealed	10 A	12.4 mm	Standard Round	IWTS	17.27 mm	Panel Mount	On-Mom	15/32-32	Non-Illuminated	DPDT
