2178710 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN RCPT 4POS 0.1 TIN PCB

Part	Connector Type	Applications	Insulation Height [custom]	Insulation Height [custom]	Voltage Rating	Number of Positions	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Material	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Number of Positions Loaded	Insulation Color	Style	Contact Type	Fastening Type	Contact Length - Post	Contact Length - Post	Termination	Number of Positions

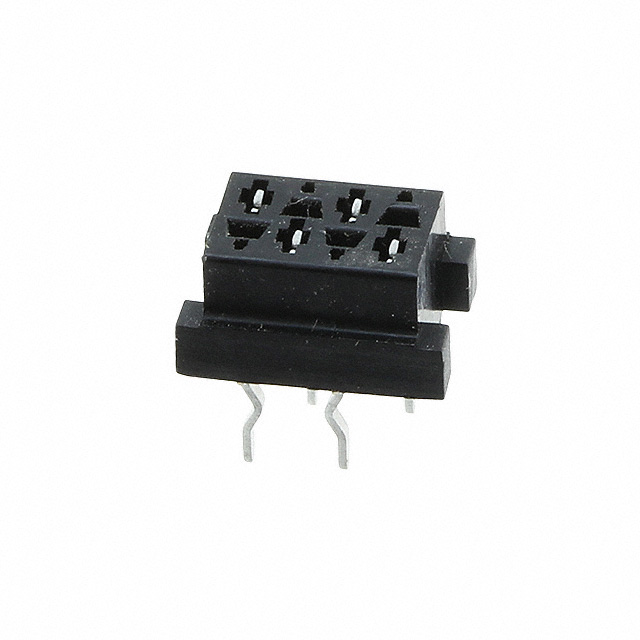

TE Connectivity Raychem Cable Protection 2178710-4	Receptacle	General Purpose Telecommunications	0.157 in	4 mm	100 V	4	0.1 in	2.54 mm	Through Hole	Brass	Tin	3 µm	118.1 µin	2.54 mm	0.1 in	118.1 µin	3 µm	-30 ░C	85 °C	2	Polybutylene Terephthalate (PBT)	All	Black	Board to Board Cable	Forked	Push-Pull	0.122 "	3.1 mm	Kinked Pin Solder

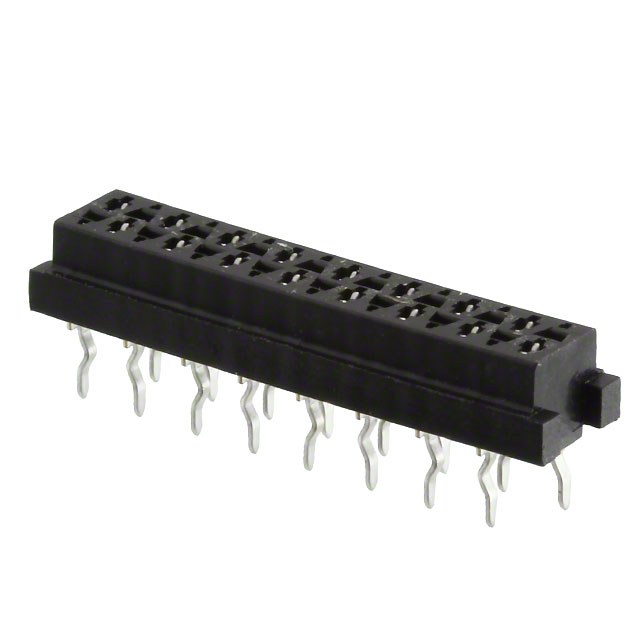

TE Connectivity Raychem Cable Protection 1-2178710-6	Receptacle	General Purpose Telecommunications	0.157 in	4 mm	100 V		0.1 in	2.54 mm	Through Hole	Brass	Tin	3 µm	118.1 µin	2.54 mm	0.1 in	118.1 µin	3 µm	-30 ░C	85 °C	2	Polybutylene Terephthalate (PBT)	All	Black	Board to Board Cable	Forked	Push-Pull	0.122 "	3.1 mm	Kinked Pin Solder	16
TE Connectivity Raychem Cable Protection 2178710-6	Receptacle	General Purpose Telecommunications	0.157 in	4 mm	100 V	6	0.1 in	2.54 mm	Through Hole	Brass	Tin	3 µm	118.1 µin	2.54 mm	0.1 in	118.1 µin	3 µm	-30 ░C	85 °C	2	Polybutylene Terephthalate (PBT)	All	Black	Board to Board Cable	Forked	Push-Pull	0.122 "	3.1 mm	Kinked Pin Solder
