26PC Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

BOARD MOUNT PRESSURE SENSORS 5 PSI, UNAMP, NEEDLE PCB, 10 VDC, DIFFER

Part	Mounting Type	Operating Pressure	Operating Pressure	Pressure Type	Output	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Accuracy	Output Type	Package / Case	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Port Style	Port Size	Port Size	Port Size	Features	Maximum Pressure	Maximum Pressure	Port Size [diameter]	Port Size [diameter]	Operating Pressure	Operating Pressure	Output
Honeywell Sensing and Productivity Solutions 26PCBFJ6G	Through Hole	5 PSI	34.47 kPa	Compound	10 V	50 mV	2.5 V	16 V	0.5 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Needle	Male Tube	1.78 mm	0.07 in	Temperature Compensated
Honeywell Sensing and Productivity Solutions 26PCDFS2G	Through Hole	30 PSI	206.84 kPa	Compound	10 V	100 mV	2.5 V	16 V	0.2 %	Wheatstone Bridge	4-DIP Module	Board Mount	85 °C	-40 C	PC Pin	No Port				Temperature Compensated	60 PSI
Honeywell Sensing and Productivity Solutions 26PCDFA6G	Through Hole	30 PSI	206.84 kPa	Compound	10 V	100 mV	2.5 V	16 V	0.2 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Barbless	Male Tube	5.08 mm	0.2 in	Temperature Compensated	60 PSI

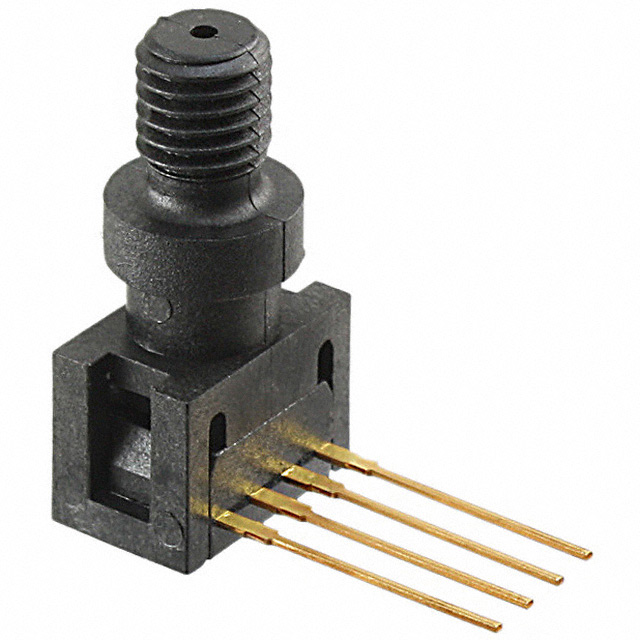

Honeywell Sensing and Productivity Solutions 26PCDFM6G	Through Hole	30 PSI	206.84 kPa	Compound	10 V	100 mV	2.5 V	16 V	0.2 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Threaded	Male UNF	0.25 in		Temperature Compensated	60 PSI
Honeywell Sensing and Productivity Solutions 26PCFFH6G	Through Hole	100 PSI	689.48 kPa	Compound	10 V	100 mV	2.5 V	16 V	0.6 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Threaded	M5 Male			Temperature Compensated	200 PSI	1378.95 kPa
Honeywell Sensing and Productivity Solutions 26PCCFG5G	Through Hole	15 PSI	103.42 kPa	Compound	10 V	100 mV	2.5 V	16 V	0.5 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Barbed	Male Tube	3.56 mm	0.14 in	Temperature Compensated	45 PSI	310.26 kPa
Honeywell Sensing and Productivity Solutions 26PCJFU5G	Through Hole	38 PSI	262 kPa	Compound	10 V	39.5 mV	2.5 V	16 V	0.5 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Barbless	Male Tube			Temperature Compensated	60 PSI		0.35 "	8.89 mm
Honeywell Sensing and Productivity Solutions 26PCDED2G	Through Hole	30 PSI	206.84 kPa	Compound	10 V	100 mV	2.5 V	16 V	0.2 %	Wheatstone Bridge	4-DIP Module	Board Mount	85 °C	-40 C		No Port				Temperature Compensated	60 PSI
Honeywell Sensing and Productivity Solutions 26PCAFA2G	Through Hole			Compound	10 V	16.7 mV	2.5 V	16 V	0.5 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Barbless	Male Tube	5 mm	0.2 in	Temperature Compensated					±1PSI (±6.89kPa)
Honeywell Sensing and Productivity Solutions 26PCGFA6G	Through Hole		250 PSI	Compound		150 mV	2.5 V	16 V	0.7 %	Wheatstone Bridge	4-SIP Module	Board Mount	85 °C	-40 C	PC Pin	Barbless	Male Tube	5 mm	0.2 in	Temperature Compensated	500 PSI	3447.38 kPa				1723.69 kPa	10V
