C850 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
MODULAR CONNECTORS / ETHERNET CONNECTORS
| Part | Shield Material | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Tab Direction | Features | Number of Ports | LED Color | Termination | Mounting Type | Height Above Board [z] | Height Above Board [z] | Connector Type | Applications | Orientation | Number of Cores per Jack | Contact Material | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Number of Rows [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

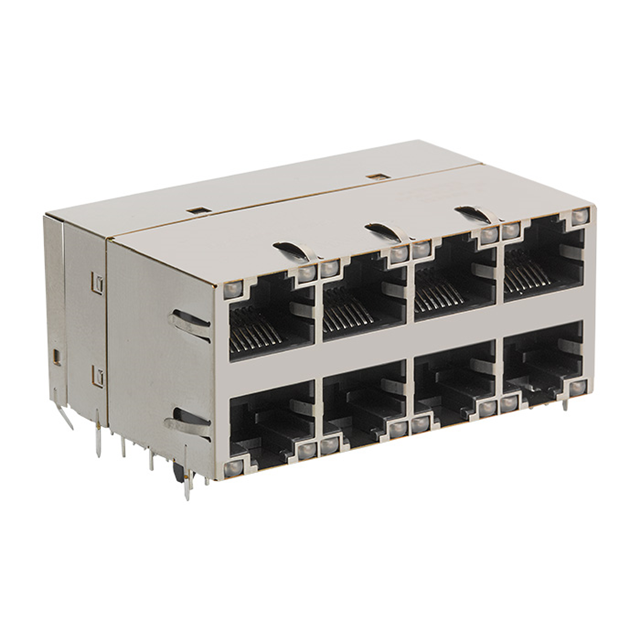

 Bel Fuse Inc. | Copper Alloy | 30 Áin | 0.76 Ám | Polybutylene Terephthalate (PBT) | Up and Down | Board Guide | 8 | Green - Green | Solder | Board Edge Through Hole | 19.69 mm | 0.775 in | RJ45 | 10/100/1000 Base-T AutoMDIX | 90 ° | 8 | Copper Alloy | Gold | 70 °C | 0 °C | EMI Finger Shielded | 2 |

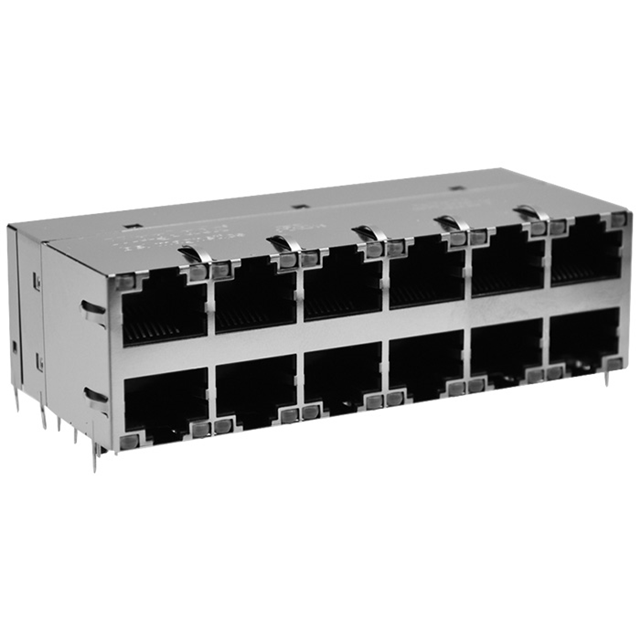

 Bel Fuse Inc. | Copper Alloy | 30 Áin | 0.76 Ám | Polybutylene Terephthalate (PBT) | Up and Down | Board Guide | 12 | Green - Green | Solder | Board Edge Through Hole | 19.69 mm | 0.775 in | RJ45 | 10/100/1000 Base-T AutoMDIX | 90 ° | 8 | Copper Alloy | Gold | 70 °C | 0 °C | EMI Finger Shielded | 2 |
