VF4 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 40A 24V
| Part | Coil Resistance | Release Time | Termination Style | Mounting Type | Coil Type | Must Release Voltage | Contact Material | Contact Form | Switching Voltage | Coil Voltage | Operate Time | Contact Rating (Current) | Relay Type | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Current | Features | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

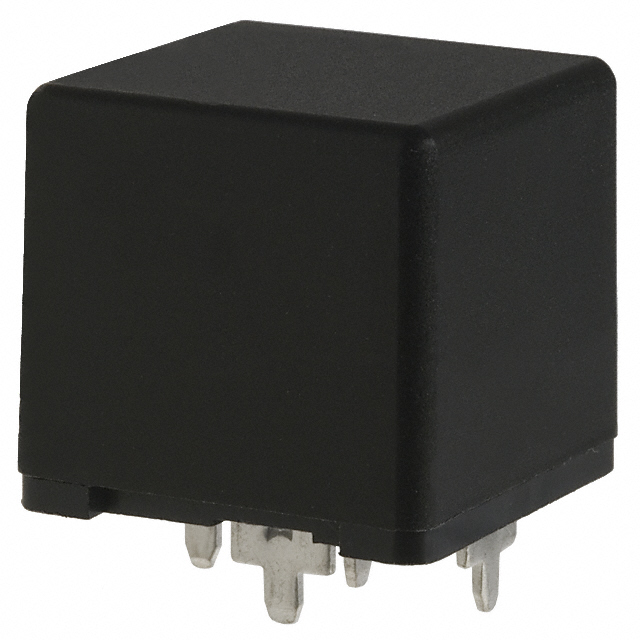

 TE Connectivity AMP Connectors | 360 Ohms | 2 ms | PC Pin | Through Hole | Non Latching | 2.4 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | 14 VDC | 24 VDC | 7 ms | 40 A | General Purpose | 125 °C | -40 C | 14.4 VDC | 16.7 mA | ||

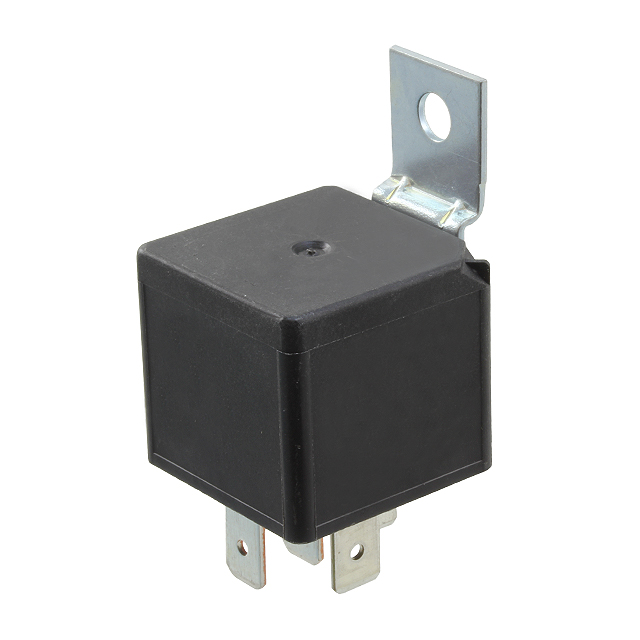

 TE Connectivity AMP Connectors | 79.5 Ohms | 2 ms | Plug In Quick Connect - 0.250" (6.3mm) | Chassis Mount | Non Latching | 1.2 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | 14 VDC | 12 VDC | 7 ms | 40 A | General Purpose | 125 °C | -40 C | 7.2 VDC | 16.7 mA | Resistor | |
TE Connectivity AMP Connectors | 90 Ohms | 2 ms | PC Pin | Through Hole | Non Latching | 1.2 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | 14 VDC | 12 VDC | 7 ms | 40 A | General Purpose | 125 °C | -40 C | 7.2 VDC | 16.7 mA | ||
 TE Connectivity AMP Connectors | 90 Ohms | 2 ms | Plug In Quick Connect - 0.250" (6.3mm) | Socketable | Non Latching | 1.2 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | 14 VDC | 12 VDC | 7 ms | 40 A | General Purpose | 125 °C | -40 C | 7.2 VDC | 16.7 mA | Resistor | |
 TE Connectivity AMP Connectors | 360 Ohms | 2 ms | Plug In Quick Connect - 0.250" (6.3mm) | Socketable | Non Latching | 2.4 VDC | Silver (Ag) | SPDT (1 Form C) | 24 VDC | 7 ms | 40 A | General Purpose | 125 °C | -40 C | 14.4 VDC | 16.7 mA | Resistor | Sealed - Fully | |
TE Connectivity AMP Connectors | 90 Ohms | 2 ms | PC Pin | Through Hole | Non Latching | 1.2 VDC | Silver Nickel (AgNi) | SPDT (1 Form C) | 14 VDC | 12 VDC | 7 ms | 40 A | General Purpose | 125 °C | -40 C | 7.2 VDC | 16.7 mA |
