FS75R07 Series

Manufacturer: INFINEON

Catalog

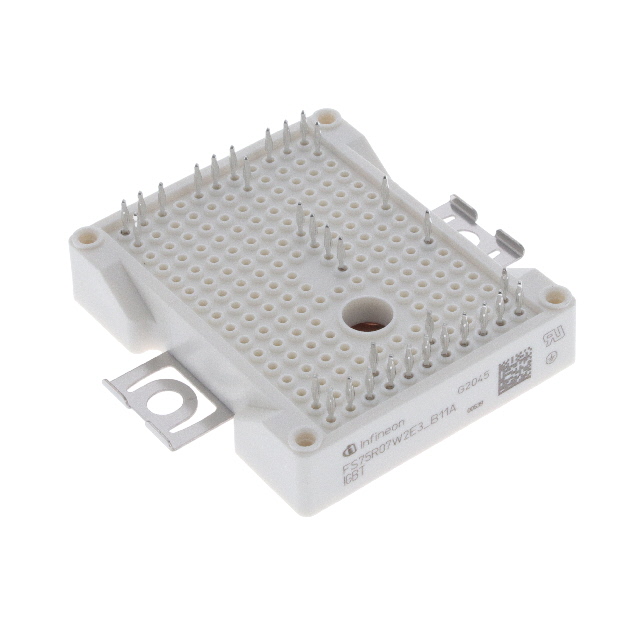

THE FS75R07W2E3_B11A IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT3 - E3 MODULE IN A EASYPACK™ 2B HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 75 A.

Part	Input Capacitance (Cies) @ Vce	Vce(on) (Max) @ Vge, Ic	Current - Collector (Ic) (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Power - Max [Max]	Mounting Type	IGBT Type	Package / Case	Configuration	Current - Collector Cutoff (Max) [Max]	Input
INFINEON FS75R07W2E3B11ABOMA1	4.6 nF	1.9 V	95 A	-40 °C	150 °C	650 V	ACEPACK™ 2	275 W	Chassis Mount	Trench Field Stop	Module	Three Phase Inverter	50 µA	Standard
INFINEON FS75R07N2E4BOSA1	4.6 nF	1.95 V	75 A	-40 C	150 °C	650 V	Module	250 W	Chassis Mount	Trench Field Stop	Module	Three Phase Inverter	1 mA	Standard
INFINEON FS75R07U1E4BPSA1	4.6 nF	1.95 V	100 A	-40 C	150 °C	650 V	Module	275 W	Chassis Mount	Trench Field Stop	Module	Full Bridge	1 mA	Standard
