18782B Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

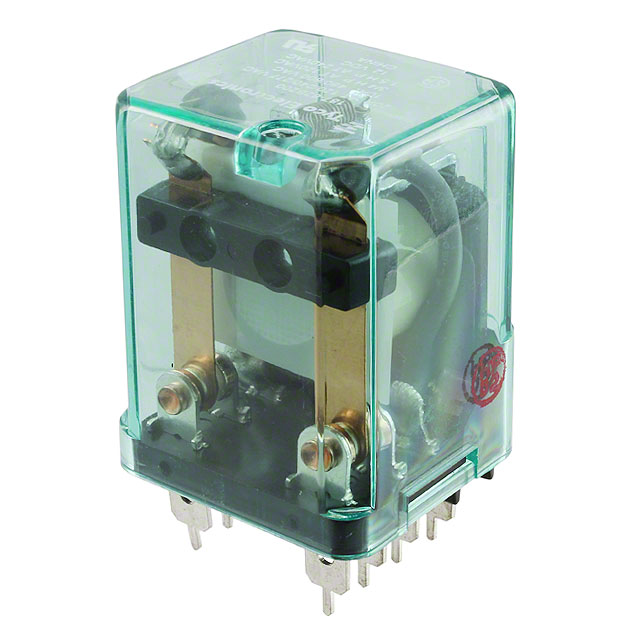

RELAY GEN PURPOSE DPDT 20A 12V
| Part | Coil Resistance | Termination Style | Contact Material | Load - Max Switching | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Coil Voltage | Must Operate Voltage | Coil Insulation | Release Time | Relay Type | Coil Current | Coil Type | Operate Time | Mounting Type | Approval Agency | Switching Voltage [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 120 Ohms | PC Pin | Silver Cadmium Oxide (AgCdO) | 560 W 4800 VA | DPDT (2 Form C) | -45 °C | 70 °C | 20 A | 12 VDC | 9 VDC | Class B | 10 ms | General Purpose | 0.1 A | Non Latching | 20 ms | Through Hole | CSA UR | 28 VDC 240 VAC |
