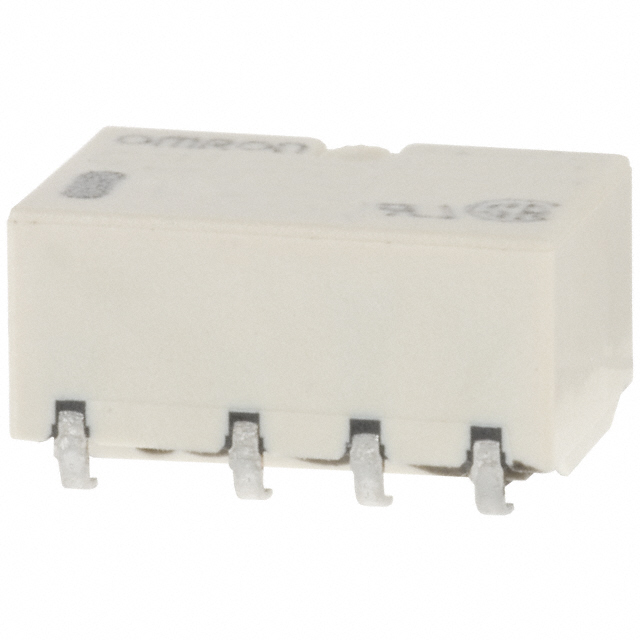

G6K-2G Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY TELECOM DPDT 1A 4.5V
| Part | Contact Rating (Current) | Seal Rating | Coil Resistance | Must Release Voltage | Coil Voltage | Load - Max Switching | Mounting Type | Coil Current | Operate Time | Release Time | Contact Material | Termination Style | Contact Form | Operating Temperature [Min] | Operating Temperature [Max] | Coil Type | Switching Voltage [Max] | Must Operate Voltage | Relay Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 194 Ohms | 0.45 VDC | 4.5 VDC | 60 W 125 VA | Surface Mount | 23.2 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 3.6 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 91 Ohms | 0.3 VDC | 60 W 125 VA | Surface Mount | 33 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 2.4 VDC | Telecom | |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 1.31 kOhms | 1.2 VDC | 12 VDC | 60 W 125 VA | Surface Mount | 9.1 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 9.6 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 795 Ohms | 0.9 VDC | 9 VDC | 60 W 125 VA | Surface Mount | 11.3 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 7.2 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 237 Ohms | 0.5 VDC | 5 VDC | 60 W 125 VA | Surface Mount | 21.1 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 4 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 1.31 kOhms | 1.2 VDC | 12 VDC | 60 W 125 VA | Surface Mount | 9.1 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 9.6 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 194 Ohms | 0.45 VDC | 4.5 VDC | 60 W 125 VA | Surface Mount | 23.2 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 3.6 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 795 Ohms | 0.9 VDC | 9 VDC | 60 W 125 VA | Surface Mount | 11.3 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 7.2 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 1.31 kOhms | 1.2 VDC | 12 VDC | 60 W 125 VA | Surface Mount | 9.1 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 9.6 VDC | Telecom |
Omron Electronics Inc-EMC Div | 1 A | Sealed - Fully | 795 Ohms | 0.9 VDC | 9 VDC | 60 W 125 VA | Surface Mount | 11.3 mA | 3 ms | 3 ms | Gold (Au) Silver (Ag) | J Lead | DPDT (2 Form C) | -40 °C | 70 °C | Non Latching | 60 VDC 125 VAC | 7.2 VDC | Telecom |
