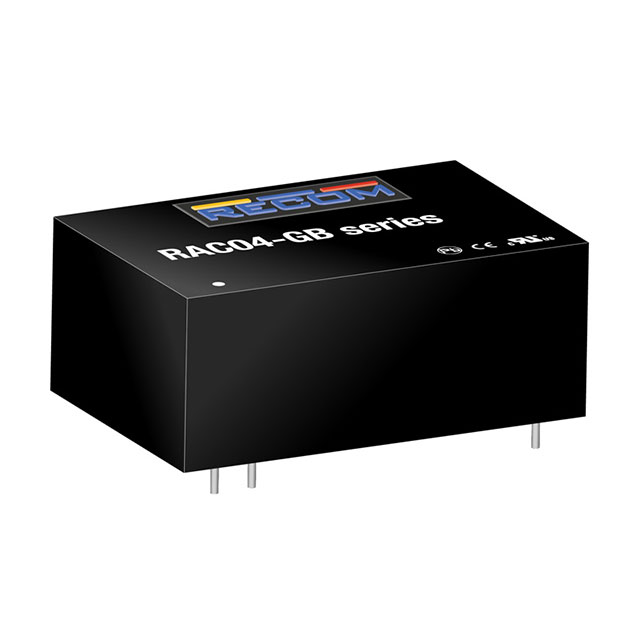

RAC04-GB Series

Catalog

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 1 OUTPUT, 4 W, 3.3 V, 1.21 A

Part	Line Regulation	Weight [custom]	Weight [custom]	Load Regulation	Current - Output (Max) [Max]	Approval Agency	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Applications	Efficiency	Type	Power (Watts)	Package / Case	Mounting Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input [Max]	Voltage - Input [Min]
Recom Power RAC04-3.3SGB	0.5 %	0.044 lb	19.96 g	0.5 %	1.21 A	CE cURus	3.3 V	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Household Appliances ITE (Commercial)	70 %	Enclosed	4 W	16-DIP Module 5 Leads	Through Hole	1	-40 °C	85 °C	305 VAC	85 VAC
Recom Power RAC04-09SGB	0.5 %			0.5 %	440 mA	CE cURus	9 V	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	ITE (Commercial)	77 %	Enclosed	4 W	5-DIP Module	Through Hole	1	-40 °C	85 °C	305 VAC	85 VAC
Recom Power RAC04-15SGB					270 mA	CE cURus	15 V	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Household Appliances ITE (Commercial)	78 %	Enclosed	4 W	16-DIP Module 5 Leads	Through Hole	1	-40 °C	85 °C	305 VAC	85 VAC
Recom Power RAC04-12SGB	0.5 %	0.044 lb	19.96 g	0.5 %	330 mA	CE cURus	12 V	24 mm	0.59 in	37 mm	0.94 in	1.46 in	15 mm	Household Appliances ITE (Commercial)	78 %	Enclosed	4 W	16-DIP Module 5 Leads	Through Hole	1	-40 °C	85 °C	305 VAC	85 VAC
