X7R Series

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT R102 COMMERCIAL

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Mounting Type	Temperature Coefficient	Applications	Capacitance	Tolerance	Package / Case	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Thickness (Max) [Max]	Thickness (Max) [Max]
KYOCERA AVX 1812VC474MAT2A	-55 C	125 °C	250 V	MLCC Surface Mount	X7R	General Purpose	0.47 µF	20 %	1812 (4532 Metric)	0.177 in	4.5 mm	3.2 mm	0.126 in
KYOCERA AVX 1210VC224KAT4A	-55 C	125 °C	250 V	MLCC Surface Mount	X7R	General Purpose	0.22 µF	10 %	1210	0.13 "	3.3 mm	2.5 mm	0.098 in	3225 Metric
KYOCERA AVX 1812VC224KAT2A	-55 C	125 °C	250 V	MLCC Surface Mount	X7R	General Purpose	0.22 µF	10 %	1812 (4532 Metric)	0.18 in	4.57 mm	3.2 mm	0.126 in		0.04 "	1.02 mm

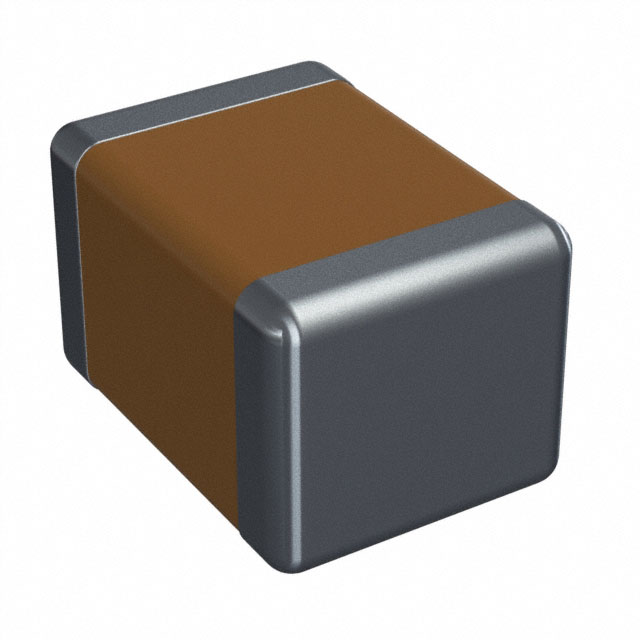

KYOCERA AVX 1812VC474KAT2A	-55 C	125 °C	250 V	MLCC Surface Mount	X7R	General Purpose	0.47 µF	10 %	1812 (4532 Metric)	0.177 in	4.5 mm	3.2 mm	0.126 in		0.11 in	2.79 mm
KYOCERA AVX 1812VC394KAT4A	-55 C	125 °C	250 V	MLCC Surface Mount	X7R	General Purpose	0.39 µF	10 %	1812 (4532 Metric)	0.177 in	4.5 mm	3.2 mm	0.126 in
KYOCERA AVX 1812VC222KAT2A	-55 C	125 °C	250 V	MLCC Surface Mount	X7R	General Purpose	2200 pF	10 %	1812 (4532 Metric)	0.177 in	4.5 mm	3.2 mm	0.126 in

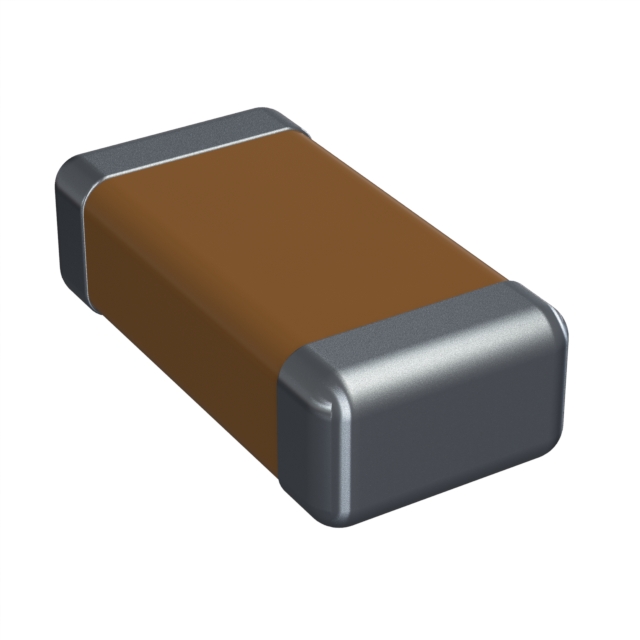

KYOCERA AVX 1206VC563JAT2A	-55 C	125 °C	250 V	MLCC Surface Mount	X7R	General Purpose	56000 pF	5 %	1206 (3216 Metric)	0.126 "	3.2 mm	1.6 mm	0.063 "		0.037 in	0.94 mm
KYOCERA AVX 1210DC106KAT2A	-55 C	125 °C	35 V	MLCC Surface Mount	X7R	General Purpose	10 µF	10 %	1210	0.13 "	3.3 mm	2.5 mm	0.098 in	3225 Metric
KYOCERA AVX 0805DC105KAT2A	-55 C	125 °C	35 V	MLCC Surface Mount	X7R	General Purpose	1 µF	10 %	0805		0.079 in 2.01 mm	0.049 " 1.25 mm
