151220 Series

Catalog

CONN HEADER VERT 20POS 2MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Insulation Color	Contact Finish - Post	Overall Contact Length	Overall Contact Length	Shrouding	Style	Number of Positions Loaded	Number of Rows [custom]	Material Flammability Rating	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Type	Contact Shape	Pitch - Mating	Pitch - Mating	Mounting Type	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Termination	Connector Type	Insulation Height	Insulation Height	Features
3M Electronic Specialty 151220-8422-TB	200 µin	5.08 µm	0.06 in	1.52 mm	3.86 mm	0.152 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin-Lead	0.329 in	8.36 mm	Unshrouded	Board to Board Cable	All	2	UL94 V-0	Push-Pull	0.118 in	3 mm	Male Pin	Square	0.079 "	2 mm	Through Hole	20	2 mm	0.079 in	Solder	Header
3M Electronic Specialty 151220-8422-RB	200 µin	5.08 µm	0.06 in	1.52 mm	3.86 mm	0.152 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin	0.329 in	8.36 mm	Unshrouded	Board to Board Cable	All	2	UL94 V-0	Push-Pull	0.118 in	3 mm	Male Pin	Square	0.079 "	2 mm	Through Hole	20	2 mm	0.079 in	Solder	Header
3M Electronic Specialty 151220-7422-RB	200 µin	5.08 µm			3.86 mm	0.152 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin			Unshrouded	Board to Board Cable	All	2	UL94 V-0	Push-Pull	0.118 in	3 mm	Male Pin	Square	0.079 "	2 mm	Right Angle Through Hole	20	2 mm	0.079 in	Solder	Header	0.165 in	4.2 mm

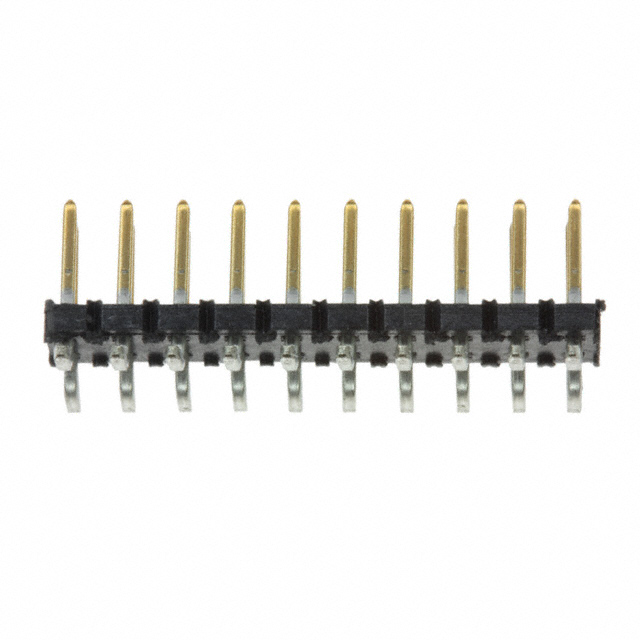

3M Electronic Specialty 151220-2420-RB	200 µin	5.08 µm	0.06 in	1.52 mm	3.86 mm	0.152 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin			Unshrouded		All	2	UL94 V-0	Push-Pull			Male Pin	Square	0.079 "	2 mm	Surface Mount	20	2 mm	0.079 in	Solder	Header
3M Electronic Specialty 151220-2420-RB-WC	200 µin	5.08 µm	0.06 in	1.52 mm	3.86 mm	0.152 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin			Unshrouded		All	2	UL94 V-0	Push-Pull			Male Pin	Square	0.079 "	2 mm	Surface Mount	20	2 mm	0.079 in	Solder	Header			Pick and Place
3M Electronic Specialty 151220-8322-RB	200 µin	5.08 µm	0.06 in	1.52 mm	3.3 mm	0.13 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin	0.307 in	7.8 mm	Unshrouded	Board to Board Cable	All	2	UL94 V-0	Push-Pull	0.118 in	3 mm	Male Pin	Square	0.079 "	2 mm	Through Hole	20	2 mm	0.079 in	Solder	Header
3M Electronic Specialty 151220-7322-RB	200 µin	5.08 µm			3.3 mm	0.13 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin			Unshrouded	Board to Board Cable	All	2	UL94 V-0	Push-Pull	0.118 in	3 mm	Male Pin	Square	0.079 "	2 mm	Right Angle Through Hole	20	2 mm	0.079 in	Solder	Header	0.165 in	4.2 mm
3M Electronic Specialty 151220-7422-TB	200 µin	5.08 µm			3.86 mm	0.152 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin-Lead			Unshrouded	Board to Board Cable	All	2	UL94 V-0	Push-Pull	0.118 in	3 mm	Male Pin	Square	0.079 "	2 mm	Right Angle Through Hole	20	2 mm	0.079 in	Solder	Header	0.165 in	4.2 mm
3M Electronic Specialty 151220-8321-RB	200 µin	5.08 µm	0.06 in	1.52 mm	3.3 mm	0.13 in	-55 C	105 ░C	0.76 Ám	30 Áin	Copper Alloy	Gold	Black	Tin	0.307 in	7.8 mm	Unshrouded	Board to Board Cable	All	2	UL94 V-0	Push-Pull	0.118 in	3 mm	Male Pin	Square	0.079 "	2 mm	Through Hole	20	2 mm	0.079 in	Solder	Header
