TL3303 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Mechanical Life | Actuator Material | Switch Travel | Termination Style | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Circuit | Contact Rating @ Voltage | Mounting Type | Illumination | Operating Force | Outline [y] | Outline [x] | Actuator Orientation | Actuator Height off PCB, Vertical [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

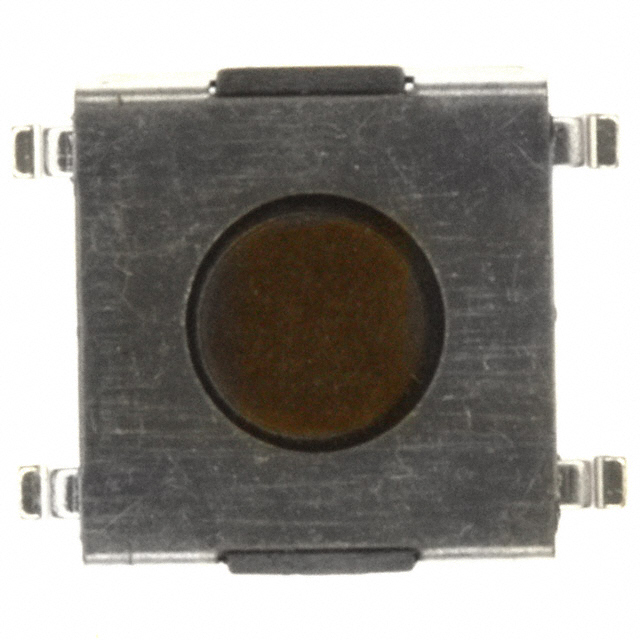

 E-Switch | 100000 Cycles | Polyphenylene Sulfide (PPS) | 0.25 mm | Gull Wing | Off-Mom | -20 ░C | 70 °C | Standard | SPST-NO | 0.05 A 12 VDC | Surface Mount | Non-Illuminated | 100 gf | 6 mm | 6.2 mm | Top Actuated | 3.1 mm |

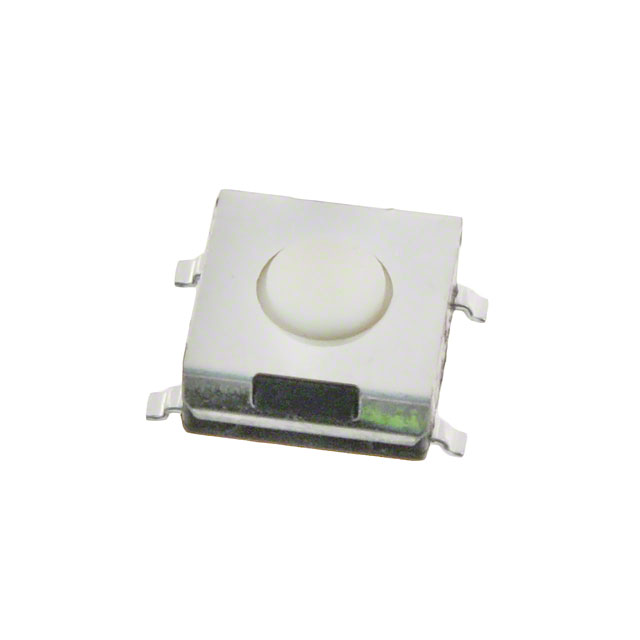

 E-Switch | 100000 Cycles | Polyphenylene Sulfide (PPS) | 0.25 mm | Gull Wing | Off-Mom | -20 ░C | 70 °C | Standard | SPST-NO | 0.05 A 12 VDC | Surface Mount | Non-Illuminated | 160 gf | 6 mm | 6.2 mm | Top Actuated | 3.1 mm |
