R14345 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

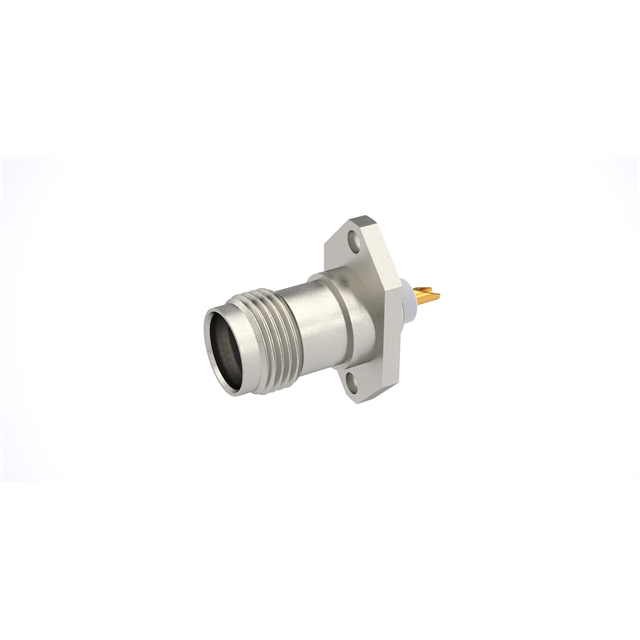

TNC / 2 HOLE FLANGE JACK RECEPTA
| Part | Insertion Loss | Voltage Rating | Mating Cycles | Dielectric Material | Body Finish | Body Material | Center Contact Plating | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Max [Max] | Number of Ports | Shield Termination | Center Contact Material | Connector Type | Housing Color | Impedance | Fastening Type | Connector Style | Features | Mounting Feature | Mounting Type | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 0.18 dB | 500 V | 500 | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Gold | -65 ░C | 165 °C | 11 GHz | 1 | Solder | Beryllium Copper | Female Socket Jack | Silver | 50 Ohms | Threaded | TNC | Extended Insulation | Flange | Panel Mount | Solder Cup |
