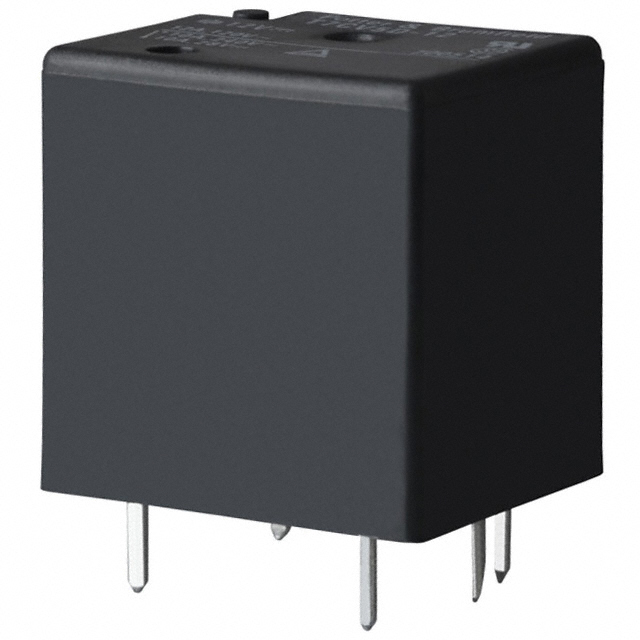

T7CS1 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPST 12A 12V
| Part | Coil Resistance | Operate Time | Release Time | Contact Rating (Current) | Seal Rating | Mounting Type | Contact Form | Termination Style | Must Operate Voltage | Coil Insulation | Contact Material | Coil Current | Must Release Voltage | Coil Type | Coil Voltage | Load - Max Switching | Operating Temperature [Max] | Operating Temperature [Min] | Switching Voltage | Relay Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 400 Ohms | 10 ms | 5 ms | 12 A | Sealed - Fully | Through Hole | SPST-NO (1 Form A) | PC Pin | 9 VDC | Class F | Silver Cadmium Oxide (AgCdO) | 0.03 A | 0.6 VDC | Non Latching | 12 VDC | 288 W 2880 VA | 85 °C | -30 ░C | 24 VDC 240 VAC | General Purpose | UR VDE |
