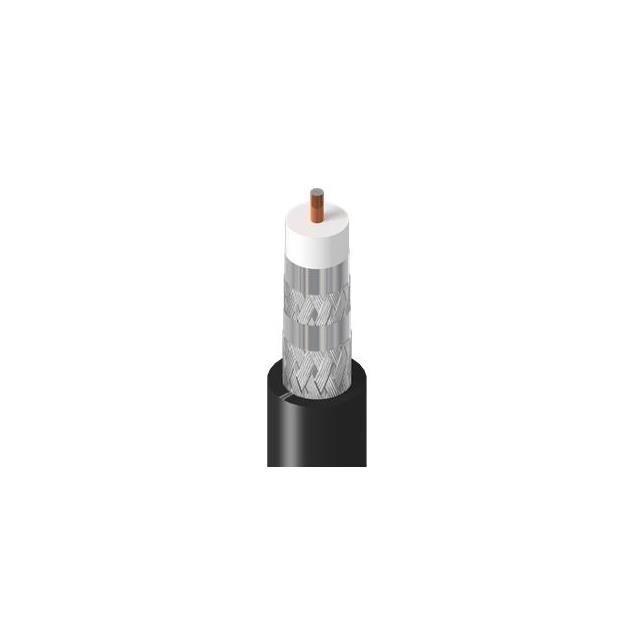

3092A Series
Manufacturer: Belden Inc.
Beta
⌘K
COAX 18AWG 100 OHM
| Part | Shield Coverage | Shield Material | VoP, Velocity of Propagation | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Conductor Material | Dielectric Material | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Group | Jacket Color | Wire Gauge | Features | Length [x] | Length [x] | Impedance | Shield Type | Cable Type | Jacket (Insulation) Material | Shield Coverage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 40 % 60 % 100 % | Aluminum | 82 | 0.18 in | 4.57 mm | Copper Coated Steel | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Solid | 7.57 mm | 0.298 " | RG-6 | Black | 18 AWG | Quad Shield | 2000 ft | 609.6 m | 75 Ohms | Braid Foil | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | |||
 Belden Inc. | 40 % 60 % 100 % | Aluminum | 82 | 0.18 in | 4.57 mm | Copper Coated Steel | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Solid | 7.57 mm | 0.298 " | RG-6 | Blue | 18 AWG | Quad Shield | 500 ft | 152.4 m | 75 Ohms | Braid Foil | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | |||
Belden Inc. | Aluminum | 82 | 0.18 in | 4.57 mm | Copper Coated Steel | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Solid | 7.57 mm | 0.298 " | RG-6 | Black | 18 AWG | 500 ft | 152.4 m | 75 Ohms | Double Braid Foil | Coaxial | Poly-Vinyl Chloride (PVC) | 100% 40% 60% | ||||
Belden Inc. | 40 % 60 % 100 % | Aluminum | 82 | 0.18 in | 4.57 mm | Copper Coated Steel | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Solid | 7.57 mm | 0.298 " | RG-6 | Black | 18 AWG | Quad Shield | 75 Ohms | Braid Foil | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | |||||
Belden Inc. | 40 % 60 % 100 % | Aluminum | 82 | 0.18 in | 4.57 mm | Copper Coated Steel | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Solid | 7.57 mm | 0.298 " | RG-6 | Black | 18 AWG | Quad Shield | 1000 ft | 304.8 m | 75 Ohms | Braid Foil | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | |||
Belden Inc. | 40 % 60 % 100 % | Aluminum | 82 | 0.18 in | 4.57 mm | Copper Coated Steel | Foam Polyethylene (FPE) | 75 ░C | -30 ░C | Solid | 7.57 mm | 0.298 " | RG-6 | Black | 18 AWG | Quad Shield | 75 Ohms | Braid Foil | Coaxial - Riser | Poly-Vinyl Chloride (PVC) | 3048 m | 10000 ft |
