2805-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

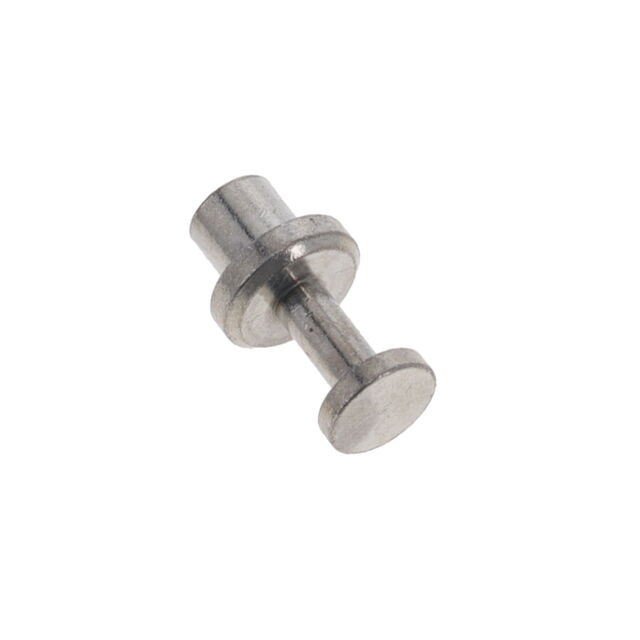

TERM TURRET SINGLE L=5.94MM
| Part | Mounting Type | Contact Finish | Termination | Staking Side ID | Staking Side ID | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Contact Material | Board Thickness | Board Thickness | Length - Above Board [x] | Length - Above Board [x] | Number of Turrets | Terminal Type | Staking Side OD [diameter] | Staking Side OD [diameter] | Length - Overall [x] | Length - Overall [x] | Flange Diameter [diameter] | Flange Diameter [diameter] | Insulation | Contact Finish Thickness | Contact Finish Thickness | Length - Below Flange [x] | Length - Below Flange [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Through Hole | Silver | Swage | 0.078 in | 1.98 mm | 0.116 in | 2.95 mm | 3.68 mm | 0.145 " | Brass Alloy | 1.57 mm | 0.062 " | 5.94 mm | 0.234 in | Single | Single End | 2.84 mm | 0.112 " | 0.339 in | 8.61 mm | 0.187 in | 4.75 mm | Non-Insulated | 7.62 µm | 300 µin | 2.67 mm | 0.105 " |
 Mill-Max Manufacturing Corp. | Through Hole | Tin-Lead | Swage | 0.078 in | 1.98 mm | 0.116 in | 2.95 mm | 3.68 mm | 0.145 " | Brass Alloy | 1.57 mm | 0.062 " | 5.94 mm | 0.234 in | Single | Single End | 2.84 mm | 0.112 " | 0.339 in | 8.61 mm | 0.187 in | 4.75 mm | Non-Insulated | 7.62 µm | 300 µin | 2.67 mm | 0.105 " |
