EPS120100 Series

Manufacturer: CUI Inc.

Catalog

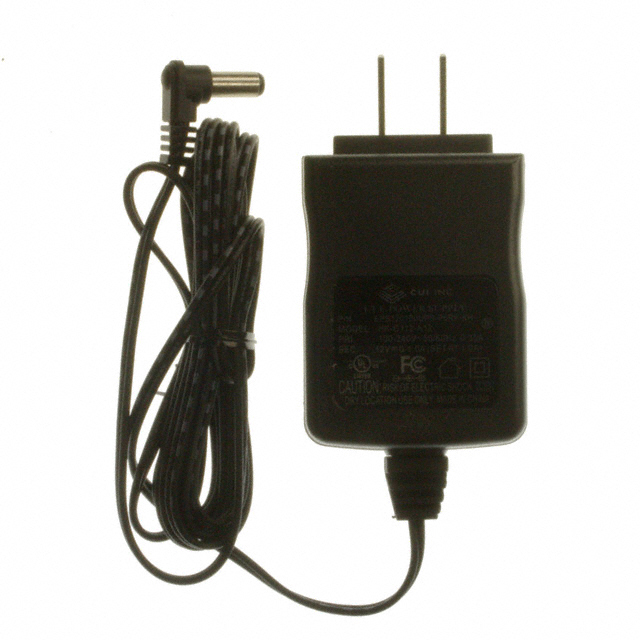

AC/DC WALL MOUNT ADAPTER 12V 12W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	No Load Power Consumption	Power (Watts)	Form	Input Type	Approval Agency	Output Connector	Output Connector [diameter]	Output Connector [z]	Operating Temperature [Max]	Operating Temperature [Min]	Region Utilized	Input Connector	Efficiency	Current - Output (Max) [Max]	Cord Length	Cord Length	Polarization	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Applications
CUI Inc. EPS120100UPS-P5RP-KH	264 VAC	90 VAC	12 V	500 mW	12 W	Wall Mount	Fixed Blade	cULus	Barrel Plug R/A	2.1 mm 5.5 mm	12 mm	40 °C	0 °C	North America	NEMA 1-15P	Level IV	1 A	1.83 m	72 in	Positive Center	2.43 "	61.8 mm	45.5 mm	30 mm	1.18 "	1.77 in	ITE (Commercial)
