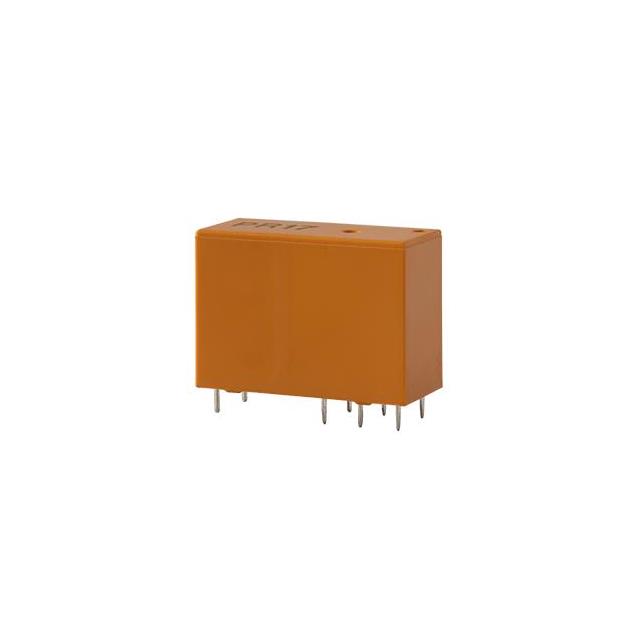

PR17-24V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPST 16A 24V
| Part | Coil Type | Contact Material | Termination Style | Load - Max Switching | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Rating (Current) | Must Release Voltage | Relay Type | Coil Voltage | Operate Time | Coil Current | Release Time | Must Operate Voltage | Contact Form | Mounting Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | Non Latching | Silver Alloy | PC Pin | 480 W 4000 VA | 30 VDC 250 VAC | -30 ░C | 70 °C | 16 A | 2.4 VDC | General Purpose | 24 VDC | 15 ms | 22.5 mA | 8 ms | 18 VDC | SPST-NO (1 Form A) | Through Hole | |
 Same Sky (Formerly CUI Devices) | Non Latching | Silver Alloy | PC Pin | 480 W 4000 VA | 30 VDC 250 VAC | -30 ░C | 70 °C | 16 A | 2.4 VDC | General Purpose | 24 VDC | 15 ms | 22.5 mA | 8 ms | 18 VDC | SPDT (1 Form C) | Through Hole | 1.067 kOhms |
Same Sky (Formerly CUI Devices) | Non Latching | Silver Alloy | PC Pin | 480 W 4000 VA | 30 VDC 250 VAC | -30 ░C | 70 °C | 16 A | 2.4 VDC | General Purpose | 24 VDC | 15 ms | 22.5 mA | 8 ms | 18 VDC | SPDT (1 Form C) | Through Hole | |
Same Sky (Formerly CUI Devices) | Non Latching | Silver Alloy | PC Pin | 480 W 4000 VA | 30 VDC 250 VAC | -30 ░C | 70 °C | 16 A | 2.4 VDC | General Purpose | 24 VDC | 15 ms | 22.5 mA | 8 ms | 18 VDC | SPST-NO (1 Form A) | Through Hole | 1.067 kOhms |
