1552 Series

Catalog

HEADERS & WIRE HOUSINGS 26P R/A MOLD LATCH .112" TAIL LENGTH

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Mating	Current Rating (Amps)	Style	Row Spacing - Mating	Row Spacing - Mating	Contact Length - Mating	Contact Length - Mating	Contact Type	Fastening Type	Contact Length - Post [x]	Contact Length - Post [x]	Termination	Contact Material	Features	Number of Rows [custom]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Connector Type	Contact Shape	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Color	Insulation Height [z]	Insulation Height [z]
3M Electronic Specialty 155226-5202-RB	200 µin	5.08 µm	26	Gold	1.25 A	Board to Cable/Wire	2 mm	0.079 in	3.81 mm	0.15 in	Male Pin	Latch Lock/Eject Hooks	0.112 in	2.84 mm	Solder	Copper Alloy	Keying Slot	2	Right Angle Through Hole	-55 C	105 ░C	Shrouded - 4 Wall	0.76 Ám	30 Áin	UL94 V-0	0.079 "	2 mm	All	Header	Square	Tin	6.28 mm	0.247 "	Black

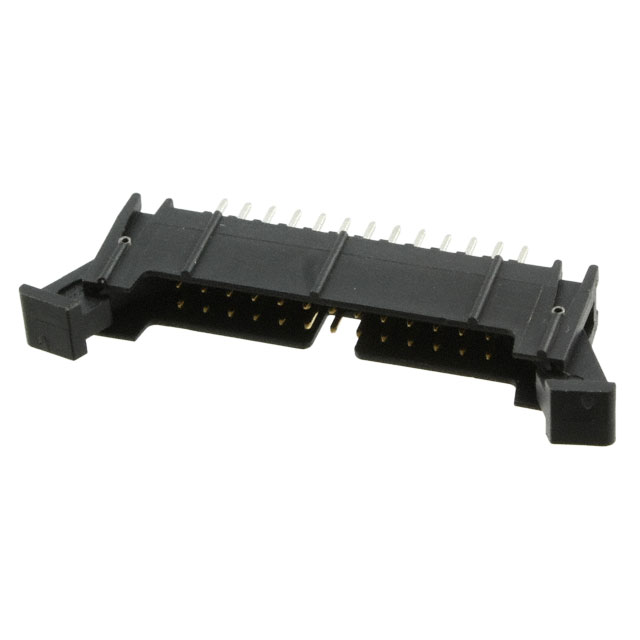

3M Electronic Specialty 155226-6202-RB	200 µin	5.08 µm	26	Gold	1.25 A	Board to Cable/Wire	2 mm	0.079 in	3.81 mm	0.15 in	Male Pin	Latch Lock/Eject Hooks	0.112 in	2.84 mm	Solder	Copper Alloy	Keying Slot	2	Through Hole	-55 C	105 ░C	Shrouded - 4 Wall	0.76 Ám	30 Áin	UL94 V-0	0.079 "	2 mm	All	Header	Square	Tin			Black	10.8 mm	0.425 in
3M Electronic Specialty 155226-2300-RB-WF	200 µin	5.08 µm	26	Gold	1.25 A	Board to Cable/Wire	2 mm	0.079 in	3.81 mm	0.15 in	Male Pin	Latch Lock/Eject Hooks			Solder	Copper Alloy	Keying Slot Pick and Place	2	Surface Mount	-55 C	105 ░C	Shrouded - 4 Wall	0.76 Ám	30 Áin	UL94 V-0	0.079 "	2 mm	All	Header	Square	Tin			Black	10.8 mm	0.425 in
3M Electronic Specialty 155220-2200-RA-WE			20	Gold	1.25 A	Board to Cable/Wire	2 mm	0.079 in	3.81 mm	0.15 in	Male Pin	Latch Lock/Eject Hooks			Solder	Copper Alloy	Keying Slot Pick and Place	2	Surface Mount	-55 C	105 ░C	Shrouded - 4 Wall	0.25 µm	10 µin	UL94 V-0	0.079 "	2 mm	All	Header	Square	Tin			Black	10.8 mm	0.425 in
3M Electronic Specialty 155212-5302-RA	200 µin	5.08 µm	12	Gold	1.25 A	Board to Cable/Wire	2 mm	0.079 in	3.81 mm	0.15 in	Male Pin	Latch Lock/Eject Hooks	0.112 in	2.84 mm	Solder	Copper Alloy	Keying Slot	2	Right Angle Through Hole	-55 C	105 ░C	Shrouded - 4 Wall	0.25 µm	10 µin	UL94 V-0	0.079 "	2 mm	All	Header	Square	Tin	6.28 mm	0.247 "	Black
3M Electronic Specialty 155224-5202-RB			24	Gold	1.25 A	Board to Cable/Wire	2 mm	0.079 in	3.81 mm	0.15 in	Male Pin	Latch Lock/Eject Hooks	0.112 in	2.84 mm	Solder	Copper Alloy	Keying Slot	2	Right Angle Through Hole	-55 C	105 ░C	Shrouded - 4 Wall	0.76 Ám	30 Áin	UL94 V-0	0.079 "	2 mm	All	Header	Square	Tin	6.28 mm	0.247 "	Black
