060-P189 Series

Catalog

HAMMER UNION PRESSURE SENSORS

Part	Termination Style	Applications	Operating Pressure	Operating Pressure	Features	Accuracy	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Maximum Pressure	Maximum Pressure

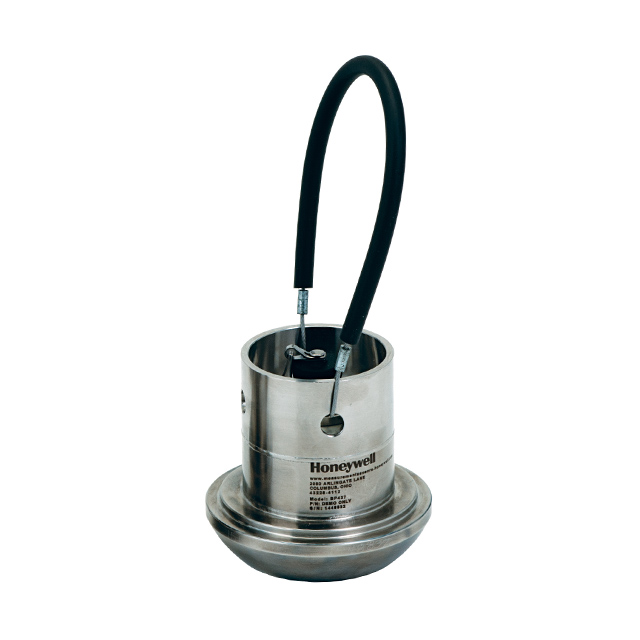

Honeywell Sensing and Productivity Solutions 060-P189-04	Connector	Industrial Automation	6000 PSI	41368.54 kPa	Temperature Compensated	0.2 %	4 mA	20 mA	9 V	28 V	Male - Tube	2 in	51 mm	Analog Current	125 °C	-40 C	Weco® 1502 Hammer Union	Vented Gauge	62052.82 kPa	9000 PSI
Honeywell Sensing and Productivity Solutions 060-P189-01	Connector	Industrial Automation	5000 PSI	34473.79 kPa	Temperature Compensated	0.2 %	4 mA	20 mA	9 V	28 V	Male - Tube	2 in	51 mm	Analog Current	125 °C	-40 C	Weco® 1502 Hammer Union	Vented Gauge	51710.68 kPa	7500 PSI

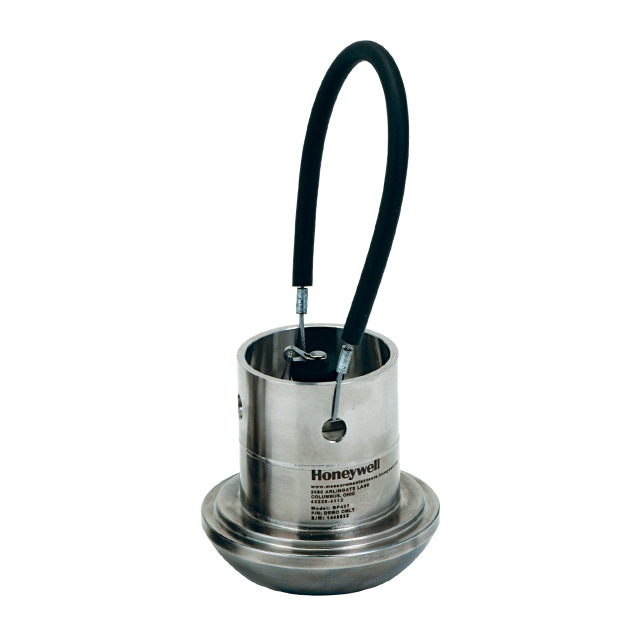

Honeywell Sensing and Productivity Solutions 060-P189-02	Connector	Industrial Automation	10000 PSI	68947.57 kPa	Temperature Compensated	0.2 %	4 mA	20 mA	9 V	28 V	Male - Tube	2 in	51 mm	Analog Current	125 °C	-40 C	Weco® 1502 Hammer Union	Vented Gauge			15000 PSI	103421.36 kPa
Honeywell Sensing and Productivity Solutions 060-P189-03	Connector	Industrial Automation	15000 PSI	103421.36 kPa	Temperature Compensated	0.2 %	4 mA	20 mA	9 V	28 V	Male - Tube	2 in	51 mm	Analog Current	125 °C	-40 C	Weco® 1502 Hammer Union	Vented Gauge			22500 PSI	155132.04 kPa
