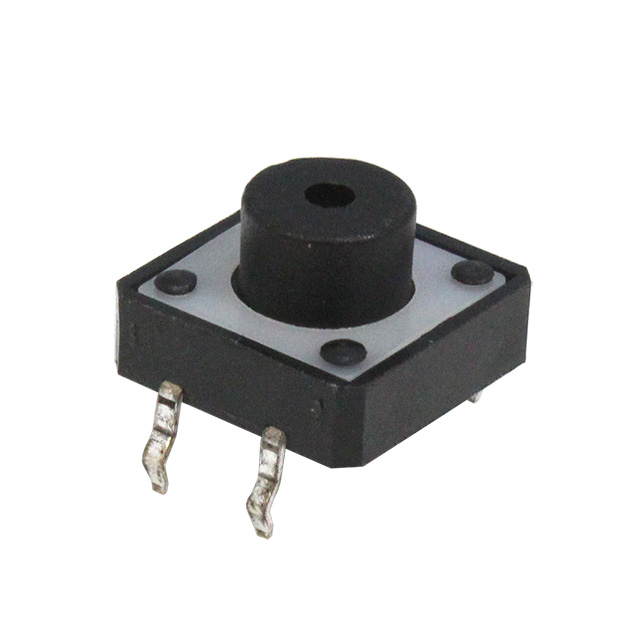

CT1103B Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 50V
| Part | Actuator Material | Switch Travel | Actuator Orientation | Illumination | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Switch Function | Outline [y] | Outline [x] | Operating Force | Actuator Height off PCB, Vertical | Contact Rating @ Voltage | Circuit | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | Nylon 6/6 Polyamide (PA66) | 0.3 mm | Top Actuated | Non-Illuminated | 85 °C | -40 C | Through Hole | PC Pin | Off-Mom | 12 mm | 12 mm | 180 gf | 7.5 mm | 0.05 A 50 VDC | SPST-NO | Standard |
