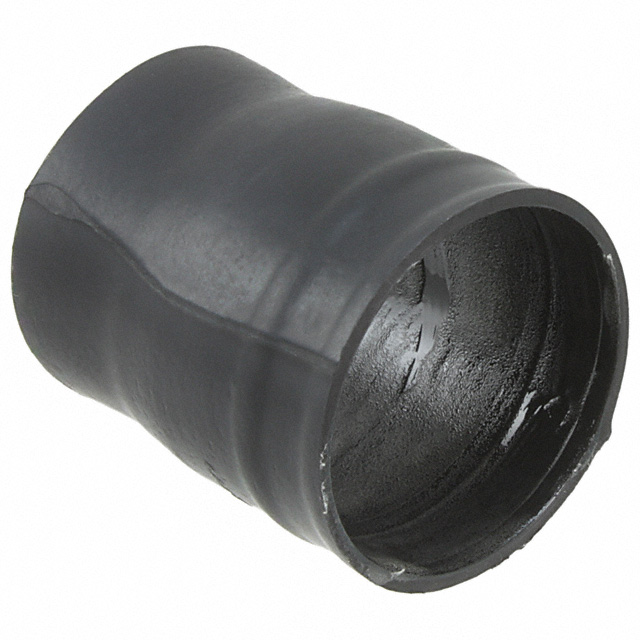

202D132 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

STD POLY MOLDED PARTS

Part	Material	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Large Recovered Length	Large Recovered Length	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length [custom]	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Total Length Recovered	Total Length Recovered	Color	Shell Size - Insert	Small Diameter Supplied	Large Diameter Recovered [diameter]	Large Diameter Supplied	Small Recovered Length
TE Connectivity Aerospace, Defense and Marine 202D132-3-60/42-0-CS5077	Polyolefin (PO) Semi-Rigid	0.26 "	6.6 mm	28.45 mm	1.12 in	1.09 in	27.69 mm	28.45 mm	1.12 in	16.51 mm	0.65 in	14.22 mm	0.56 in	Boot	2.16 in	54.86 mm	Black	32
TE Connectivity Aerospace, Defense and Marine 202D132-4-60/42-0-CS5077	Polyolefin (PO) Flexible	0.26 "	6.6 mm	28.45 mm	1.12 in	1.09 in	27.69 mm	28.45 mm	1.12 in	16.51 mm	0.65 in	14.22 mm	0.56 in	Boot	2.16 in	54.86 mm	Black	32
TE Connectivity Aerospace, Defense and Marine 202D132-12-60-0-CS5077	Fluoroelastomer (FKM) Flexible	0.26 "	6.6 mm	28.45 mm	1.12 in	1.09 in	27.69 mm		0.58 in	16.51 mm	0.65 in	14.22 mm	0.56 in	Boot	2.16 in	54.86 mm	Black	32	14.73 mm
TE Connectivity Aerospace, Defense and Marine 202D132-4-60/42-0	Polyolefin (PO) Flexible	0.26 "	6.6 mm		1.118 in	1.091 in	27.71 mm	28.4 mm	1.118 in				14.3 mm	Boot	2.161 in	54.89 mm	Black	32		0.563 "	28.4 mm
TE Connectivity Aerospace, Defense and Marine 202D132-4-60-0-CS5503	Polyolefin (PO) Flexible	0.26 "	6.6 mm	28.45 mm	1.12 in	1.09 in	27.69 mm	28.45 mm	1.12 in	16.51 mm	0.65 in	14.22 mm	0.56 in	Boot	2.16 in	54.86 mm	Black	32
TE Connectivity Aerospace, Defense and Marine 202D132-3/42-0	Polyolefin (PO) Semi-Rigid	0.26 "	6.6 mm		1.118 in	1.091 in	27.71 mm	28.4 mm	1.118 in	21.59 mm			14.3 mm	Boot	2.161 in	54.89 mm	Black	32		0.563 "	28.4 mm	0.85 in
TE Connectivity Aerospace, Defense and Marine 202D132-100-0	Polyolefin (PO) Semi-Flexible Halogen Free	0.26 "	6.6 mm	28.45 mm	1.12 in	1.09 in	27.69 mm		0.58 in			14.22 mm	0.56 in	Boot	2.16 in	54.86 mm	Black	32	14.73 mm
TE Connectivity Aerospace, Defense and Marine 202D132-25/42-0	Elastomer Fluid Resistant	0.26 "	6.6 mm	28.45 mm	1.12 in	1.09 in	27.69 mm	28.45 mm	1.12 in			14.22 mm	0.56 in	Boot	2.16 in	54.86 mm	Black	32
