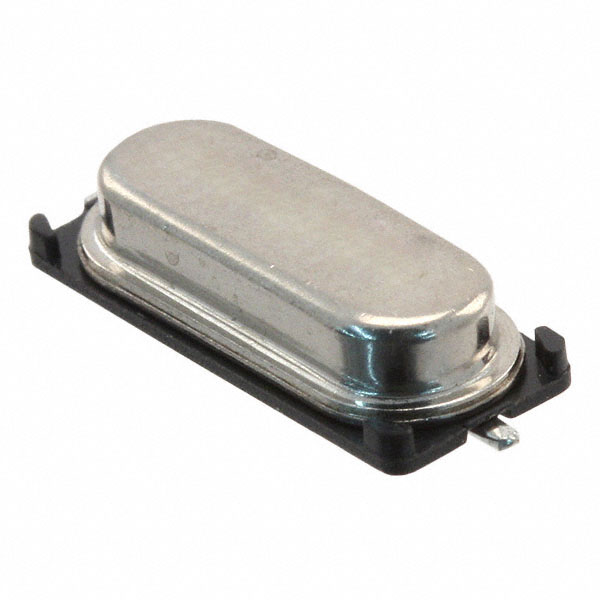

CSM-7SSX Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS CRYSTAL 12.0000MHZ 32PF SMD,CSM-7SSX,+/-50PPM,+/-30PPM,32PF,60 OHM,FUNDAMENTAL,-10C - 70C,HC49/US,0.449" L X 0.185" W (11.40MM X 4.70MM),0.102" (2.60MM)

Part	Height - Seated (Max) [z]	Height - Seated (Max) [z]	Frequency	Frequency Stability	Operating Mode	Operating Temperature [Max]	Operating Temperature [Min]	ESR (Equivalent Series Resistance)	Frequency Tolerance	Package / Case	Load Capacitance	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
ECS Inc. ECS-120-32-5PVX	2.6 mm	0.102 in	12 MHz	50 ppm	Fundamental	70 °C	-10 °C	60 Ohms	30 ppm	HC-49/US	32 pF	Surface Mount	MHz Crystal	0.189 in	4.8 mm	11.4 mm	0.449 "
ECS Inc. ECS-143-20-5PVX	2.6 mm	0.102 in	14.31818 MHz	50 ppm	Fundamental	70 °C	-10 °C	50 Ohms	30 ppm	HC-49/US	20 pF	Surface Mount	MHz Crystal	0.189 in	4.8 mm	11.4 mm	0.449 "
