M83-LFT2F Series
Manufacturer: Harwin Inc.
Beta
⌘K

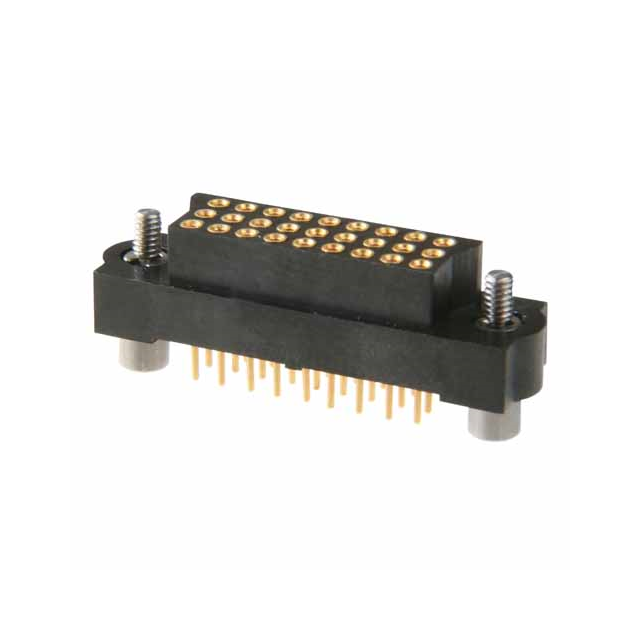

9 X 3-ROW FEMALE VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES
| Part | Insulation Material | Contact Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Applications | Contact Shape | Contact Type | Connector Type | Material Flammability Rating | Contact Finish - Mating | Features | Number of Rows [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mated Stacking Heights | Insulation Height | Insulation Height | Contact Finish - Post | Style | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post | Mounting Type | Voltage Rating | Row Spacing - Mating | Row Spacing - Mating | Termination | Number of Positions Loaded | Insulation Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Polyphenylene Sulfide (PPS) Glass Filled | Beryllium Copper | 10 Áin | 0.25 çm | Automotive General Purpose Military | Circular | Female Socket | Receptacle | UL94 V-0 | Gold | Jackscrews Mating Flange Mounting Flange | 3 | 12 Áin | 0.3 Ám | -55 C | 125 °C | 10.65 mm | 0.328 in | 8.33 mm | Gold | Board to Board Cable | 27 | 0.079 " | 2 mm | 4.4 mm | 0.173 in | Through Hole | 120 VDC | 2 mm | 0.079 in | Solder | All | Black |
