TMK316B Series
Manufacturer: Taiyo Yuden
Beta
⌘K

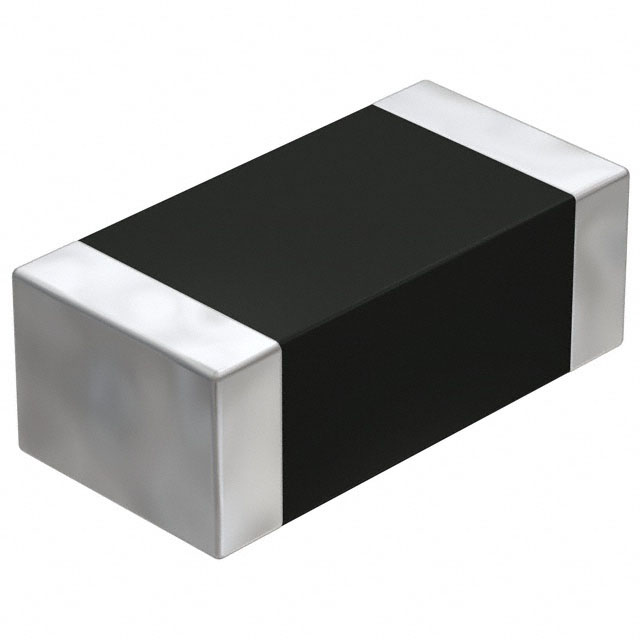

SMD MULTILAYER CERAMIC CAPACITOR, 2.2 ΜF, 25 V, 1206 [3216 METRIC], ± 10%, X5R
| Part | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Applications | Thickness (Max) [Max] | Thickness (Max) [Max] | Ratings | Package / Case | Tolerance | Capacitance | Temperature Coefficient | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | Automotive | 1.8 mm | 0.071 in | AEC-Q200 | 1206 (3216 Metric) | 10 % | 2.2 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | |
 Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | SMPS Filtering | 1.8 mm | 0.071 in | 1206 (3216 Metric) | 10 % | 10 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | ||
 Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | SMPS Filtering | 1.8 mm | 0.071 in | 1206 (3216 Metric) | 20 % | 4.7 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | ||
Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | Automotive | 1.8 mm | 0.071 in | AEC-Q200 | 1206 (3216 Metric) | 10 % | 4.7 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | |
 Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | SMPS Filtering | 1.9 mm | 0.075 in | 1206 (3216 Metric) | 20 % | 22 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | ||
Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | SMPS Filtering | 1.8 mm | 0.071 in | 1206 (3216 Metric) | 20 % | 3.3 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | ||
Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | Automotive SMPS Filtering | 1.8 mm | 0.071 in | AEC-Q200 | 1206 (3216 Metric) | 20 % | 2.2 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | Ultra Low ESR |
Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | SMPS Filtering | 1.8 mm | 0.071 in | 1206 (3216 Metric) | 10 % | 4.7 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | ||
Taiyo Yuden | 25 VDC | -55 C | 85 °C | MLCC Surface Mount | SMPS Filtering | 0.95 mm | 0.037 in | 1206 (3216 Metric) | 20 % | 2.2 µF | X5R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | ||
 Taiyo Yuden | 25 VDC | -55 C | 125 °C | MLCC Surface Mount | Automotive SMPS Filtering | 1.8 mm | 0.071 in | AEC-Q200 | 1206 (3216 Metric) | 10 % | 1 µF | X7R | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm |
