MFL Series
Current Sense Resistors - SMD MFL, 0805 SIZE, 1/2 Watt, 22 mohm, 100 TCR
Manufacturer: Eaton - Electronics Division
Catalog
Current Sense Resistors - SMD MFL, 0805 SIZE, 1/2 Watt, 22 mohm, 100 TCR
Beta
⌘K
Current Sense Resistors - SMD MFL, 0805 SIZE, 1/2 Watt, 22 mohm, 100 TCR
Current Sense Resistors - SMD MFL, 0805 SIZE, 1/2 Watt, 22 mohm, 100 TCR
Current Sense Resistors - SMD MFL, 0805 SIZE, 1/2 Watt, 22 mohm, 100 TCR
| Part | Power (Watts) | Power (Watts) | Features | Tolerance | Number of Terminations [custom] | Temperature Coefficient | Height - Seated (Max) [Max] | Height - Seated (Max) | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Resistance | Composition | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Package / Case | Package / Case | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 0.5 W | 0.5 W | Current Sense Moisture Resistant | 1 % | 2 | 200 ppm/°C | 0.028 in | 0.71 mm | 155 C | -55 C | 0805 | 10 mOhms | Metal Film | 2 mm | 0.079 in | 0.051 in | 1.3 mm | 0805 | ||

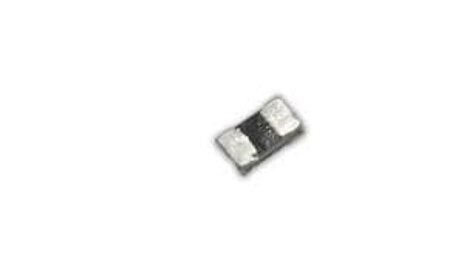

 Eaton - Electronics Division | 0.25 W | 0.25 W | Current Sense Moisture Resistant | 1 % | 2 | 100 ppm/°C | 0.024 in | 155 C | -55 C | 75 mOhms | Metal Film | 1.6 mm | 0.063 " | 0.035 " | 0.9 mm | 0603 | 1608 Metric | 0.6 mm | ||
 Eaton - Electronics Division | 0.25 W | 0.25 W | Current Sense Moisture Resistant | 1 % | 2 | 100 ppm/°C | 0.024 in | 155 C | -55 C | 47 mOhms | Metal Film | 1.6 mm | 0.063 " | 0.035 " | 0.9 mm | 0603 | 1608 Metric | 0.6 mm | ||
Eaton - Electronics Division | 0.5 W | 0.5 W | Current Sense Moisture Resistant | 1 % | 2 | 100 ppm/°C | 0.028 in | 0.71 mm | 155 C | -55 C | 0805 | 22 mOhms | Metal Film | 2 mm | 0.079 in | 0.051 in | 1.3 mm | 0805 |
