PC357 Series

Catalog

OPTOISO 3.75KV TRANSISTOR 4BESOP

Part	Output Type	Number of Channels [custom]	Package / Case	Current Transfer Ratio (Max)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output / Channel [custom]	Current Transfer Ratio (Min)	Voltage - Isolation	Supplier Device Package	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Input Type	Vce Saturation (Max) [Max]	Current Transfer Ratio (Max) [Max]

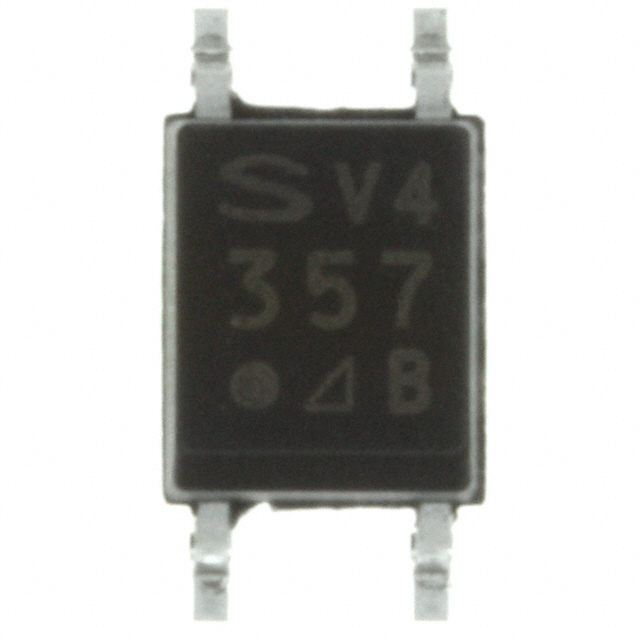

SHARP/Socle Technology PC357N6J000F	Transistor	1	4-SMD Gull Wing	400 %	4 µs	3 µs	50 mA	130 %	3750 Vrms	4-Mini-Flat	Surface Mount	-30 ░C	100 °C	50 mA	DC	200 mV

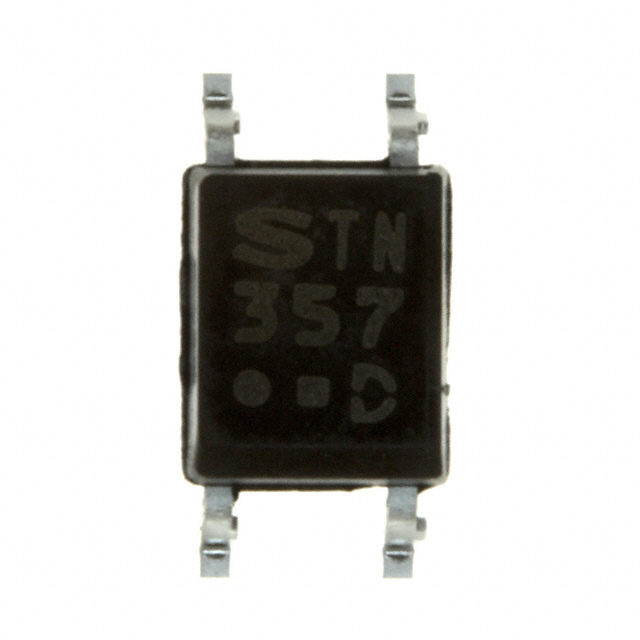

SHARP/Socle Technology PC357N4J000F	Transistor	1	4-SMD Gull Wing		4 µs	3 µs	50 mA	300 %	3750 Vrms	4-Mini-Flat	Surface Mount	-30 ░C	100 °C	50 mA	DC	200 mV	600 %

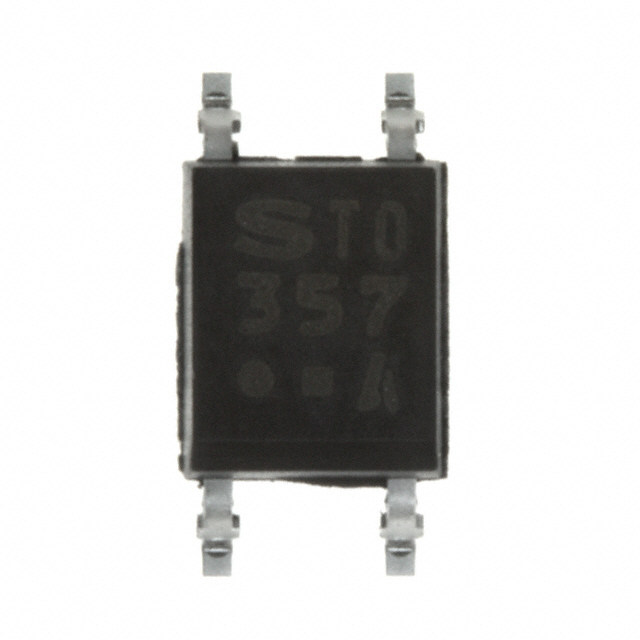

SHARP/Socle Technology PC357N1J000F	Transistor	1	4-SMD Gull Wing	160 %	4 µs	3 µs	50 mA	80 %	3750 Vrms	4-Mini-Flat	Surface Mount	-30 ░C	100 °C	50 mA	DC	200 mV
SHARP/Socle Technology PC357N2J000F	Transistor	1	4-SMD Gull Wing		4 µs	3 µs	50 mA	130 %	3750 Vrms	4-Mini-Flat	Surface Mount	-30 ░C	100 °C	50 mA	DC	200 mV	260 %

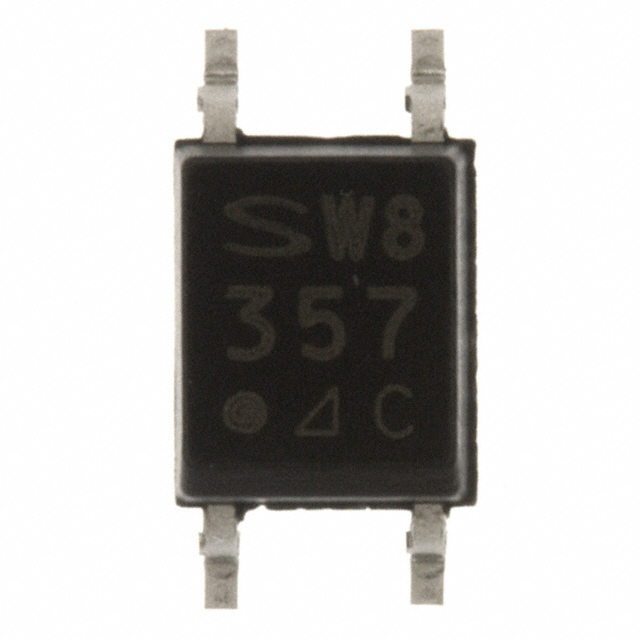

SHARP/Socle Technology PC357NJ0000F	Transistor	1	4-SMD Gull Wing		4 µs	3 µs	50 mA	50 %	3750 Vrms	4-Mini-Flat	Surface Mount	-30 ░C	100 °C	50 mA	DC	200 mV	600 %
SHARP/Socle Technology PC357N3J000F	Transistor	1	4-SMD Gull Wing	400 %	4 µs	3 µs	50 mA	200 %	3750 Vrms	4-Mini-Flat	Surface Mount	-30 ░C	100 °C	50 mA	DC	200 mV
