TR9KZ6316 Series
Manufacturer: GlobTek, Inc.
Beta
⌘K

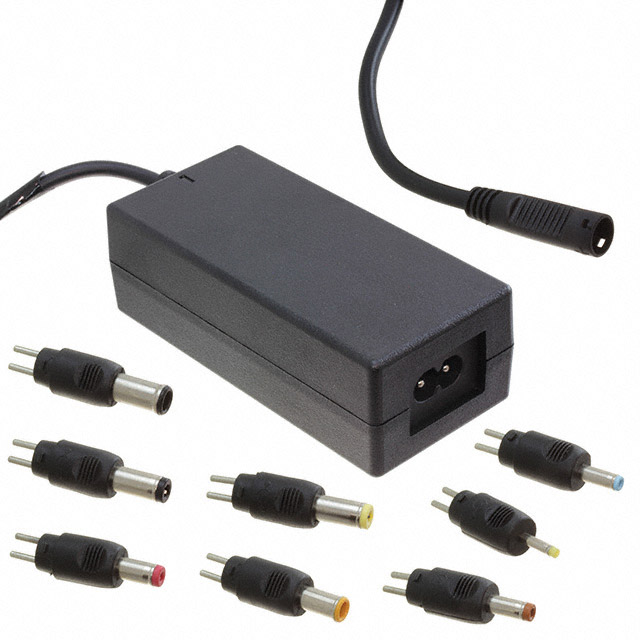

AC/DC DESKTOP ADAPTER 19V 120W
| Part | Voltage - Output | Operating Temperature [Min] | Operating Temperature [Max] | Input Type | Input Connector | Current - Output (Max) [Max] | Approval Agency | Form | Power (Watts) | Cord Length | Cord Length | No Load Power Consumption | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Region Utilized | Standard Number | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Output Connector | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 GlobTek, Inc. | 19 V | -20 ░C | 40 °C | Cord (Sold Separately) | IEC 320-C8 | 6.32 A | CB CCC CE EAC ETL PSE RCM S-Mark UkrSEPRO VCCI | Desktop (Class II) | 120 W | 1.2 m | 47.2 in | 150 mW | Household Appliances ITE (Commercial) Medical | 264 VAC | 90 VAC | International | 60335-1 60601-1-11 60601-1-2 60950-1 61347-1 62368-1 | 34 mm | 1.34 " | 5.88 " | 149.3 mm | 2.47 " | 62.8 mm | Barrel Plug Kit (1.3mm x 3.5mm | Level VI |
