846-026 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 26POS 0.125

...

Part	Material - Insulation	Termination Rows [custom]	Pitch	Pitch	Color	Contact Finish	Termination	Contact Type	Gender	Mounting Type	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Number of Rows [custom]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Termination Rows	Number of Rows	Features

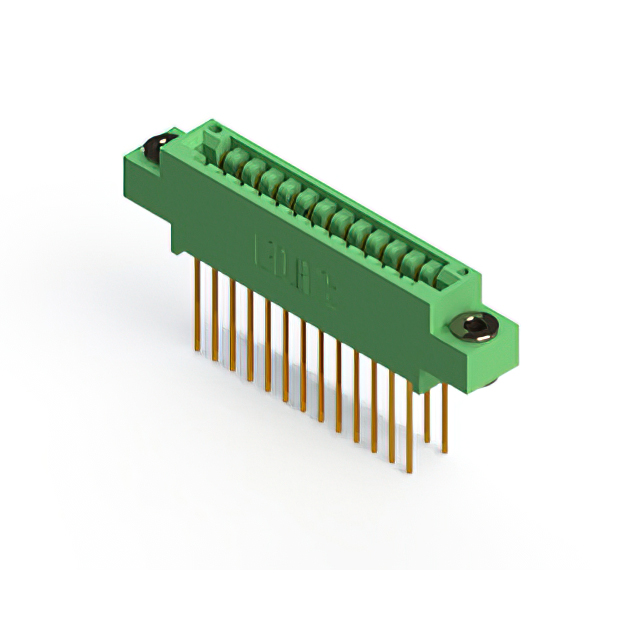

EDAC Inc. 846-026-541-803	Diallyl Phthalate (DAP)	2	3.18 mm	0.125 in	Green	Gold	Wire Wrap	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Floating Bobbin Top Mount Opening	0.116 "	2.95 mm	Dual

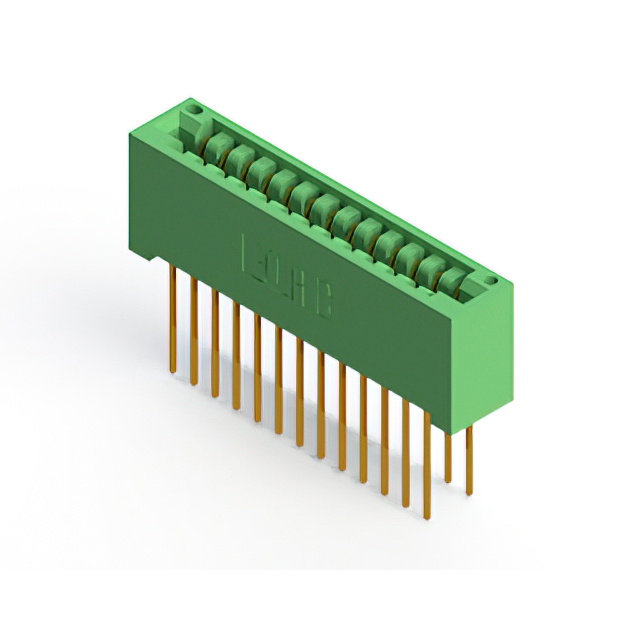

EDAC Inc. 846-026-540-201	Diallyl Phthalate (DAP)	2	3.18 mm	0.125 in	Green	Gold	Wire Wrap	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	13				Dual
EDAC Inc. 846-026-520-604	Diallyl Phthalate (DAP)		3.18 mm	0.125 in	Green	Gold	Solder	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	26		0.156 "	3.96 mm	Single	1	1

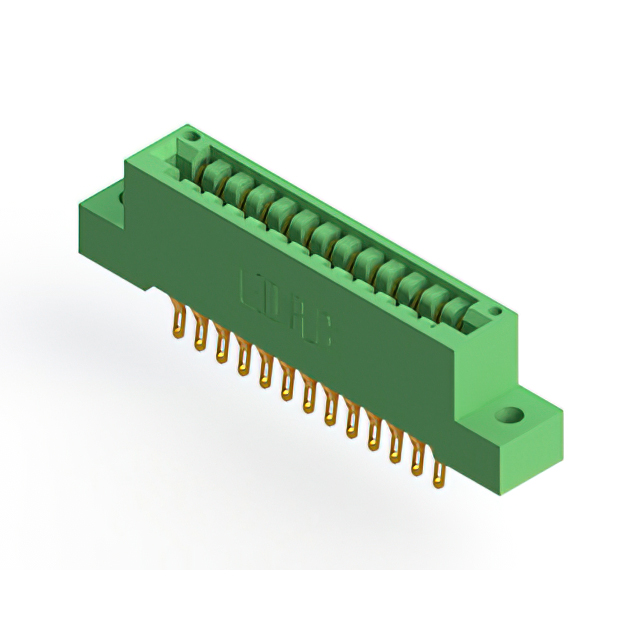

EDAC Inc. 846-026-555-202	Diallyl Phthalate (DAP)	2	3.18 mm	0.125 in	Green	Gold	Solder Eyelet(s)	Cantilever	Female	Board Edge Straddle Mount	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Dual			Card Extender
EDAC Inc. 846-026-559-608	Diallyl Phthalate (DAP)		3.18 mm	0.125 in	Green	Gold	Solder	Cantilever	Female	Right Angle Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	26	4-40 Threaded Insert Top Mount Opening			Single	1	1
EDAC Inc. 846-026-540-103	Diallyl Phthalate (DAP)		3.18 mm	0.125 in	Green	Gold	Wire Wrap	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	26	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Single	1	1

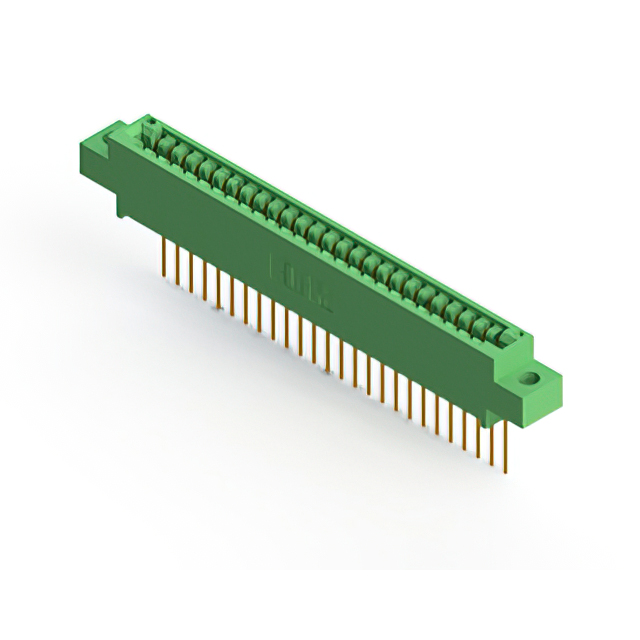

EDAC Inc. 846-026-541-604	Diallyl Phthalate (DAP)		3.18 mm	0.125 in	Green	Gold	Wire Wrap	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Single Edge		0.07 in 1.78 mm	0.054 in 1.37 mm	26		0.156 "	3.96 mm	Single	1	1

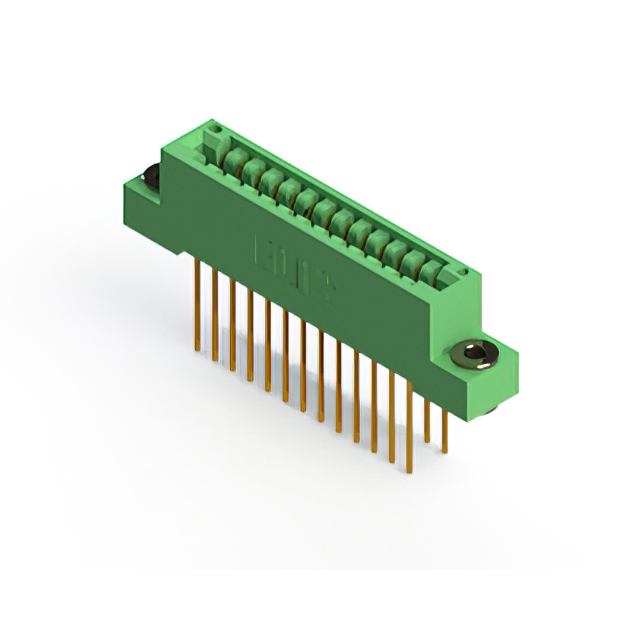

EDAC Inc. 846-026-541-203	Diallyl Phthalate (DAP)	2	3.18 mm	0.125 in	Green	Gold	Wire Wrap	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	13	Floating Bobbin Flush Mount	0.116 "	2.95 mm	Dual

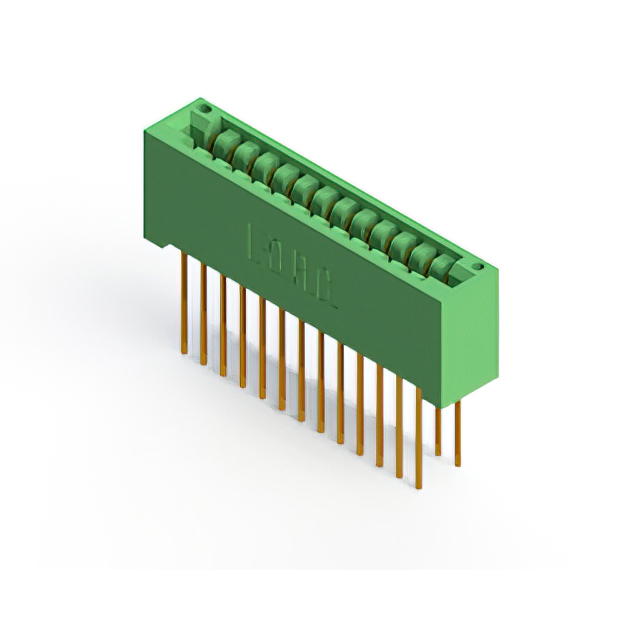

EDAC Inc. 846-026-541-201	Diallyl Phthalate (DAP)	2	3.18 mm	0.125 in	Green	Gold	Wire Wrap	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	13				Dual
EDAC Inc. 846-026-520-807	Diallyl Phthalate (DAP)	2	3.18 mm	0.125 in	Green	Gold	Solder	Cantilever	Female	Through Hole	Copper Alloy	0.25 Ám	10 Áin	26	125 °C	-40 C	Non Specified - Dual Edge	2	0.07 in 1.78 mm	0.054 in 1.37 mm	13	M3 Threaded Insert Top Mount Opening			Dual
