225973 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

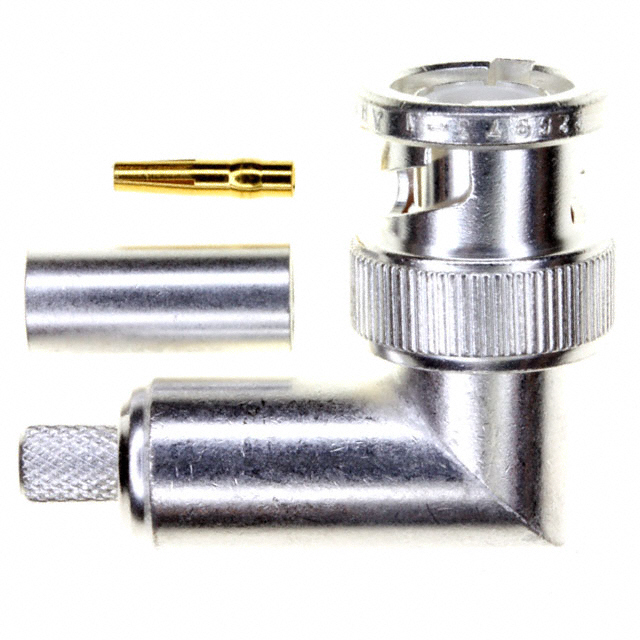

CABLE TERMINATED, MALE, BNC CONNECTOR, CRIMP, PLUG
| Part | Includes | Number of Ports | Shield Termination | Impedance | Operating Temperature [Max] | Operating Temperature [Min] | Center Contact Material | Cable Group | Dielectric Material | Contact Termination | Body Finish | Mating Cycles | Voltage Rating | Connector Style | Fastening Type | Frequency - Max [Max] | Connector Type | Body Material | Insertion Loss | Mounting Type | Center Contact Plating | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 Connector 1 Contact 1 Ferrule | 1 | Crimp | 50 Ohms | 85 °C | -55 °C | Brass | 58A 58B 58C RG-58 | Polytetrafluoroethylene (PTFE) | Crimp | Silver | 500 | 500 V | BNC | Bayonet Lock | 4 GHz | Male Pin Plug | Brass | 0.2 dB | Free Hanging (In-Line) Right Angle | Gold | Silver |
