FR20204HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K
RECEPTACLE, THR, SINGLE ROW, .10
| Part | Contact Shape | Contact Material | Insulation Material | Number of Positions Loaded | Fastening Type | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Mounting Type | Number of Positions | Contact Type | Insulation Height [z] | Insulation Height [z] | Contact Finish Thickness - Mating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows [custom] | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

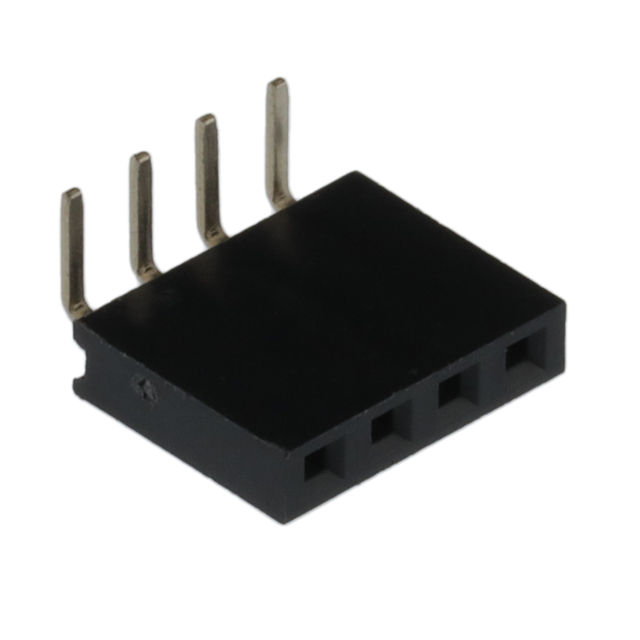

 METZ CONNECT USA Inc. | Square | Copper Alloy | Polyester Polyethylene Terephthalate (PET) | All | Push-Pull | 0.114 in | 2.9 mm | 1 | 0.1 " | 2.54 mm | Gold | Right Angle Through Hole | 4 | Female Socket | 2.39 mm | 0.094 in | Flash | Solder | -40 C | 105 ░C | Black | Receptacle | |||||

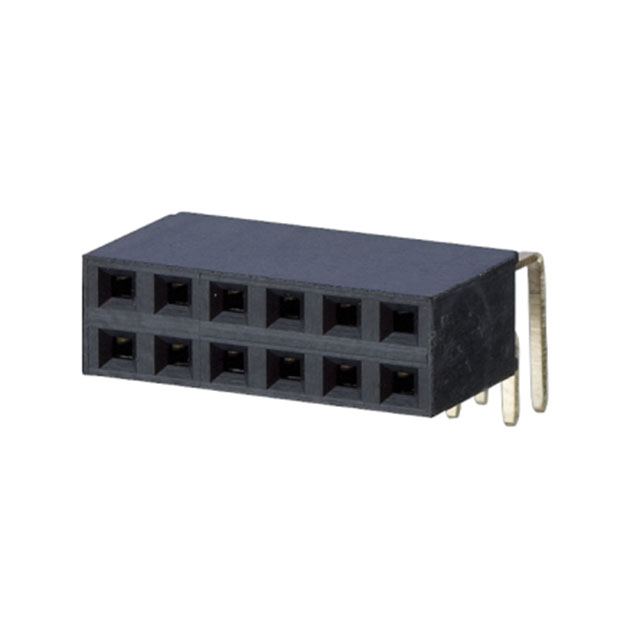

 METZ CONNECT USA Inc. | Square | Copper Alloy | Polyester Polyethylene Terephthalate (PET) | All | Push-Pull | 0.114 in | 2.9 mm | 0.1 " | 2.54 mm | Gold | Right Angle Through Hole | 8 | Female Socket | Flash | Solder | -40 C | 105 ░C | Black | Receptacle | 0.1 in | 2.54 mm | 2 | 0.197 " | 5 mm |
