399-10 Series
Manufacturer: Preci-Dip
Beta
⌘K

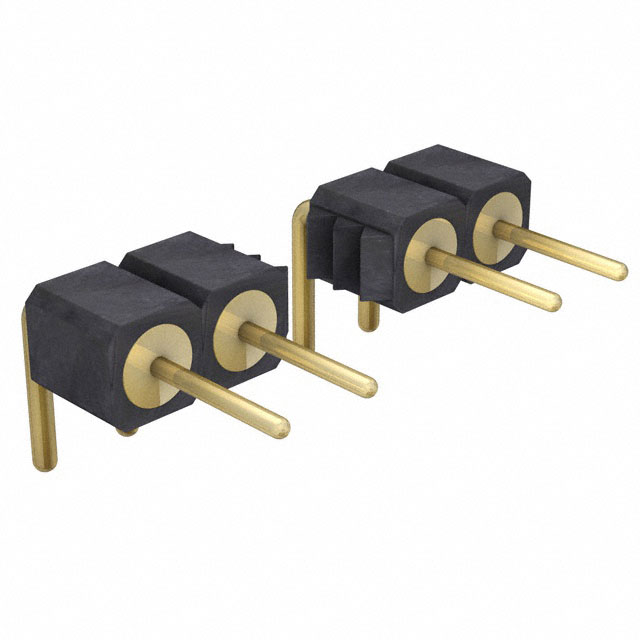

CONN HEADER R/A 22POS 2.54MM
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Termination | Number of Positions Loaded | Current Rating (Amps) | Voltage Rating | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Number of Rows | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insulation Color | Connector Type | Insulation Height | Insulation Height | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Post | Contact Length - Mating | Contact Length - Mating | Fastening Type | Contact Shape | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Shrouding | Mounting Type | Insulation Material | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Preci-Dip | 10 Áin | 0.25 çm | 22 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |
Preci-Dip | 10 Áin | 0.25 çm | 51 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |
Preci-Dip | 10 Áin | 0.25 çm | 13 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |
Preci-Dip | 10 Áin | 0.25 çm | 36 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |
 Preci-Dip | 10 Áin | 0.25 çm | 4 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |
Preci-Dip | 10 Áin | 0.25 çm | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | ||
Preci-Dip | 10 Áin | 0.25 çm | 53 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |
Preci-Dip | 10 Áin | 0.25 çm | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | 33 | |
Preci-Dip | 10 Áin | 0.25 çm | 43 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester | |
Preci-Dip | 10 Áin | 0.25 çm | 10 | Solder | All | 3 A | 150 VDC | Gold | -55 C | 125 °C | Male Pin | 1 | 0.25 µm | 10 µin | Brass | Black | Header | 0.1 in | 2.54 mm | 0.126 " | 3.2 mm | Gold | 4 mm | 0.157 in | Push-Pull | Circular | UL94 V-0 | 0.1 " | 2.54 mm | Unshrouded | Right Angle Through Hole | Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester |
