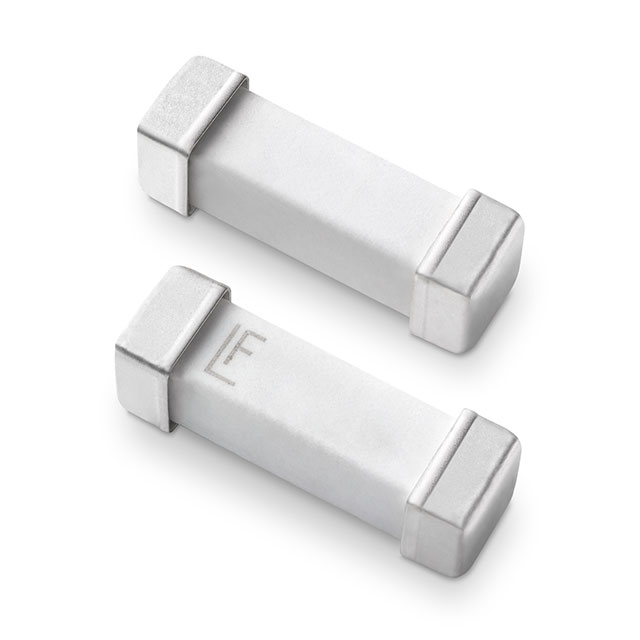

04431.25ERE Series

FUSE 250V TL HBC NANO2 ROHS 1.25A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

FUSE 250V TL HBC NANO2 ROHS 1.25A

Part	Melting I˛t	Response Time	Mounting Type	Package / Case	Voltage Rating - AC	Approval Agency	Breaking Capacity @ Rated Voltage	DC Cold Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Current Rating (Amps)
Littelfuse/Commercial Vehicle Products 04431.25ERE	3.97	Slow Blow	Surface Mount	2-SMD Square End Block	250 V	CQC cURus VDE	200 A	0.1 Ohms	0.397 "	0.12 "	3.05 mm	0.12 in	10.08 mm	3.05 mm	Board Mount	125 °C	-45 °C	250 V	1.25 A

Catalog

FUSE 250V TL HBC NANO2 ROHS 1.25A

Key Features

• 250 VAC/VDC voltage rating with 200 A interrupting rating

• Slo-Blo® Fuse

• RoHS-compliant

• Fully compatible with leadfree solder alloys and higher temperature profiles associated with lead-free assembly

Description

The 443E Series is a Nano2®, 250 V fuse. It is a surface mount Universal Modular Fuse (UMF) that complies with IEC 60127-4. It is RoHS-compliant and fully compatible with lead-free solder alloy and higher temperature profiles associated with lead-free assembly.
