1057290 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

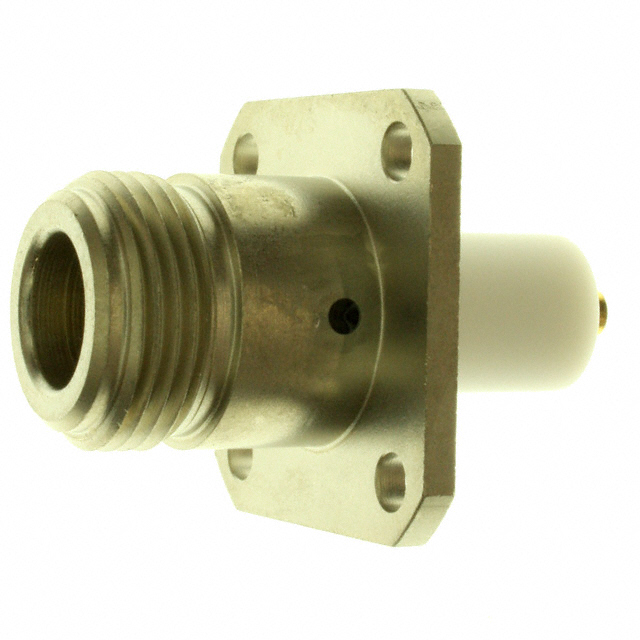

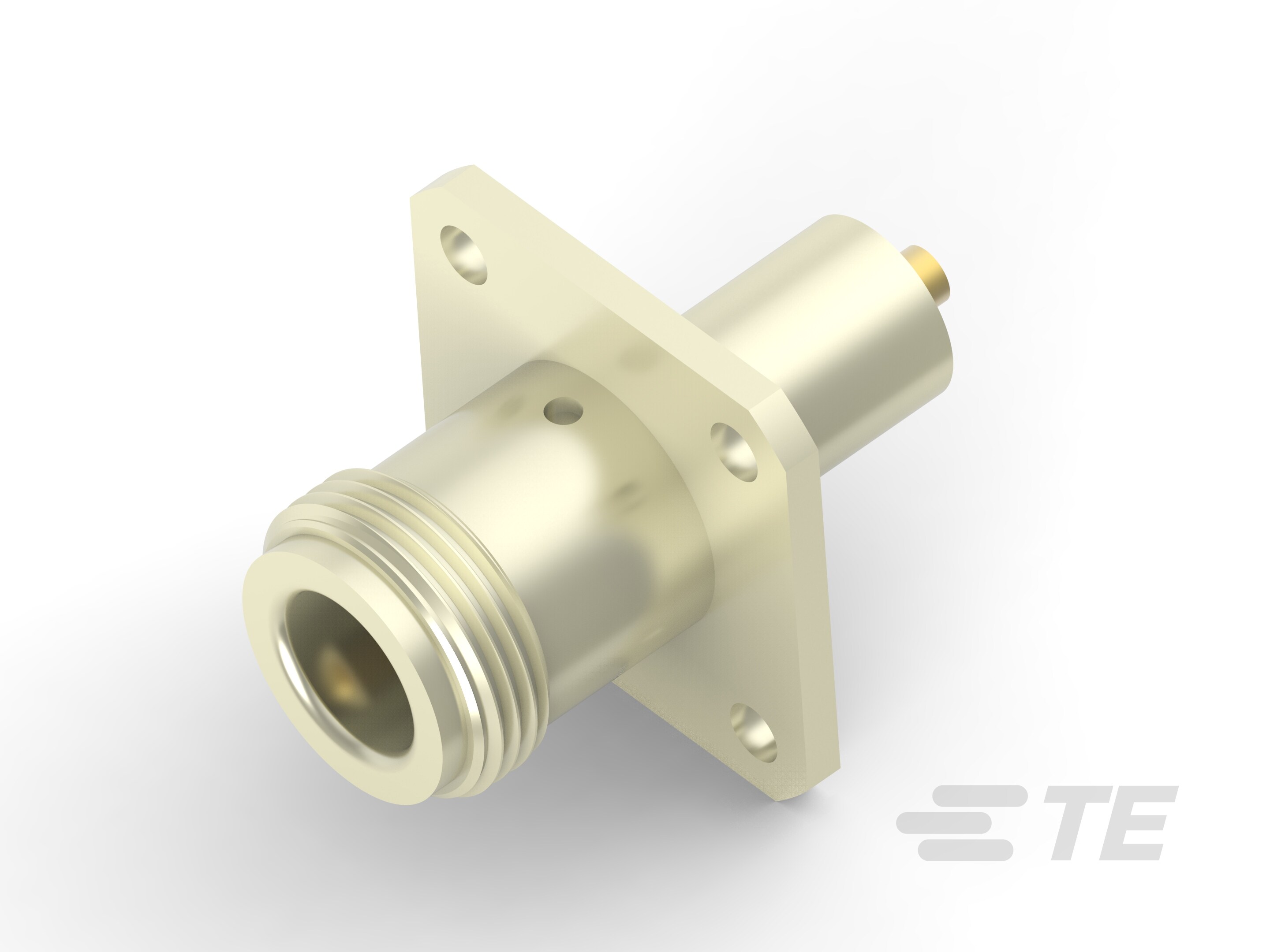

CONN N RCPT STR 50 OHM SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mating Cycles | Dielectric Material | Body Finish | Body Material | Center Contact Plating | Center Contact Material | Mounting Feature | Shield Termination | Connector Type | Impedance | Housing Color | Frequency - Max [Max] | Fastening Type | Connector Style | Number of Ports | Mounting Type | Features | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 ░C | 165 °C | 250 V | 500 | Polytetrafluoroethylene (PTFE) | Nickel | Brass | Gold | Beryllium Copper | Flange | Solder | Receptacle Female Socket | 50 Ohms | Silver | 11 GHz | Threaded | N Type | 1 | Panel Mount | Extended Insulation | Solder |
