737-008 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 8POS 0.156

Part	Termination Rows	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Rows	Pitch	Pitch	Contact Type	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Card Type	Contact Material	Number of Positions	Read Out	Gender	Number of Positions/Bay/Row	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]

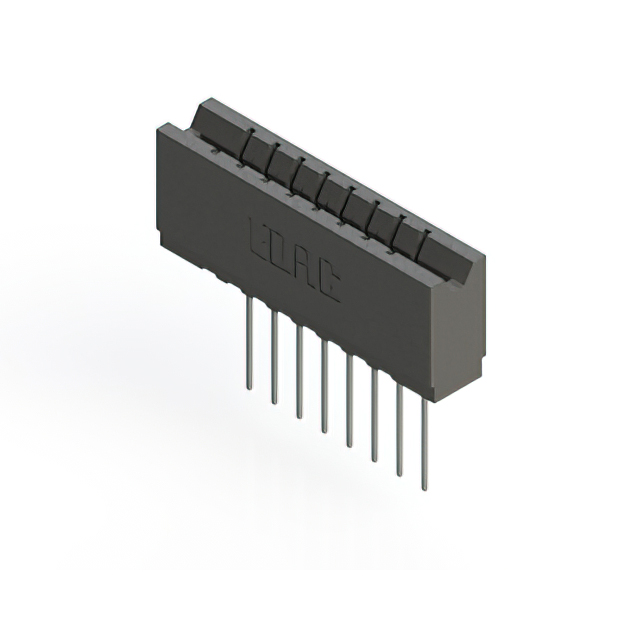

EDAC Inc. 737-008-541-106	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C
EDAC Inc. 737-008-520-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C
EDAC Inc. 737-008-541-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C
EDAC Inc. 737-008-545-106	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C

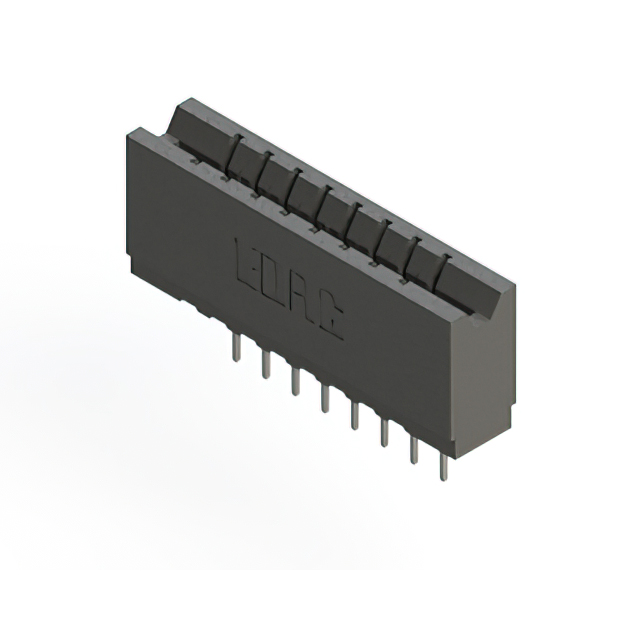

EDAC Inc. 737-008-522-106	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C

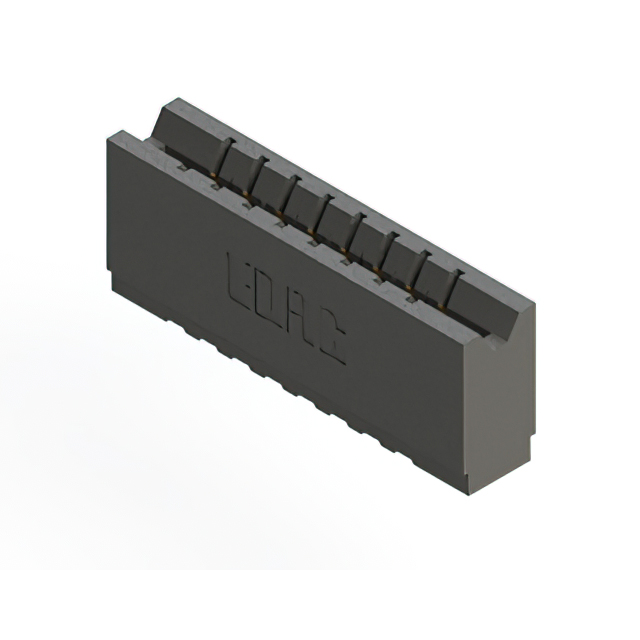

EDAC Inc. 737-008-525-106	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C

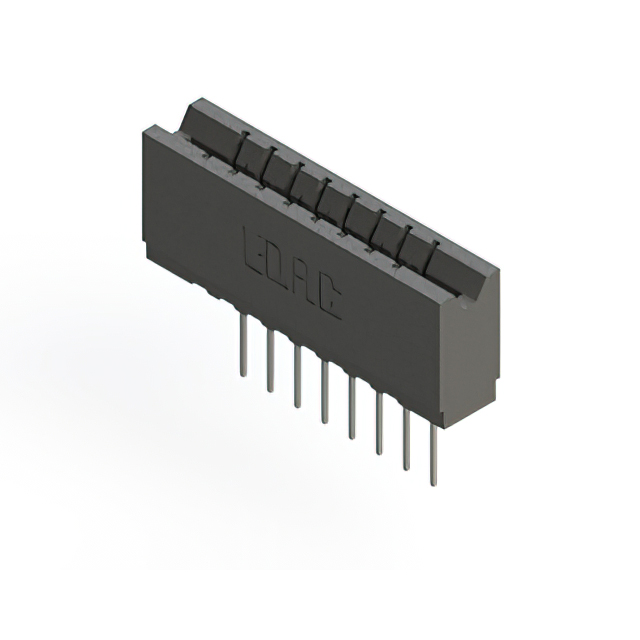

EDAC Inc. 737-008-540-106	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C

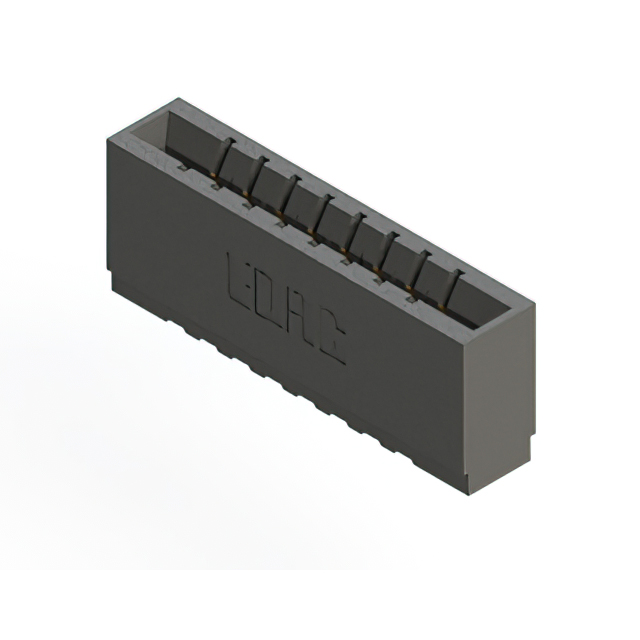

EDAC Inc. 737-008-525-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C
EDAC Inc. 737-008-540-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C
EDAC Inc. 737-008-522-101	1	Polyester Thermoplastic	30 Áin	0.76 Ám	Black	1	3.96 mm	0.156 in	Cantilever	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Non Specified - Single Edge	Copper Alloy	8	Single	Female	8	Through Hole	-40 C	105 ░C
