745183 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

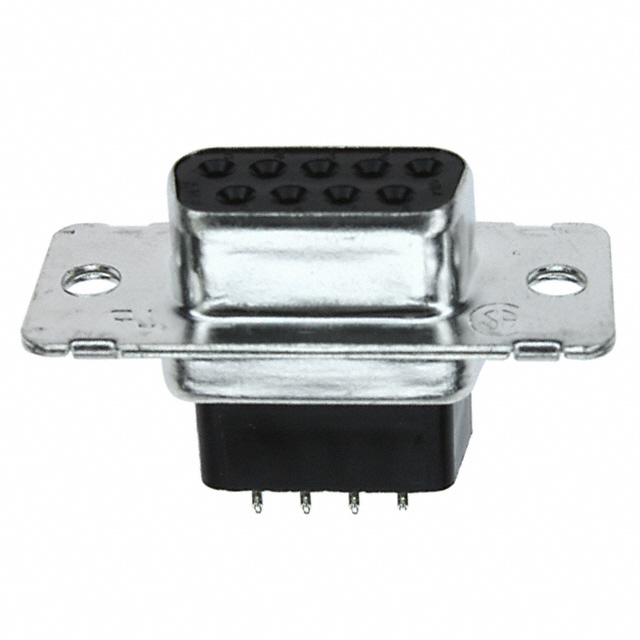

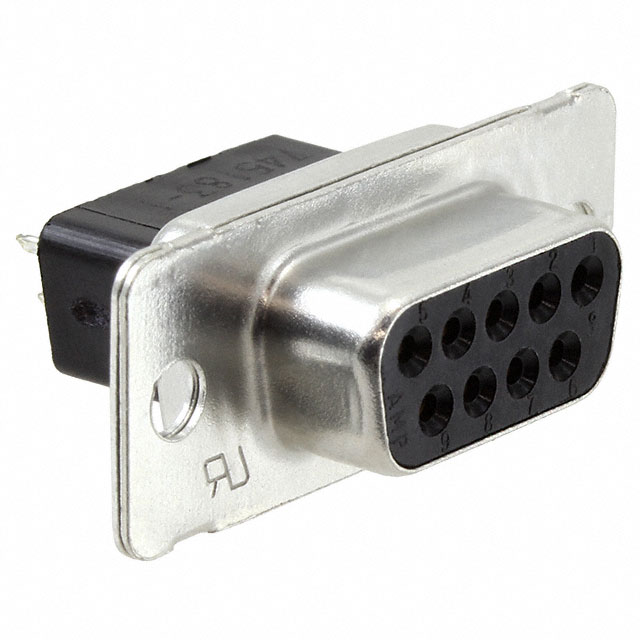

D SUB CONNECTOR, STANDARD, 9POS, RCPT
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Material | Color | Dielectric Material | Number of Rows [custom] | Termination | Connector Style | Flange Feature | Number of Positions | Contact Finish Thickness | Mounting Type | Current Rating (Amps) | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Type | Contact Finish | Material Flammability Rating | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Black | Thermoplastic | 2 | Solder | D-Sub | Housing/Shell (Unthreaded) | 9 | Flash | Through Hole | 6 A | 1 | DE E | Receptacle Female Sockets | Gold | UL94 V-0 | Signal |
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Black | Thermoplastic | 2 | Solder | D-Sub | Housing/Shell (Unthreaded) | 9 | Through Hole | 6 A | 1 | DE E | Receptacle Female Sockets | Gold | UL94 V-0 | Signal | |
 TE Connectivity AMP Connectors | -55 C | 105 ░C | 125 VDC | Phosphor Bronze | Black | Thermoplastic | 2 | Solder | D-Sub | Housing/Shell (Unthreaded) | 9 | Through Hole | 6 A | 1 | DE E | Receptacle Female Sockets | Gold | UL94 V-0 | Signal |
