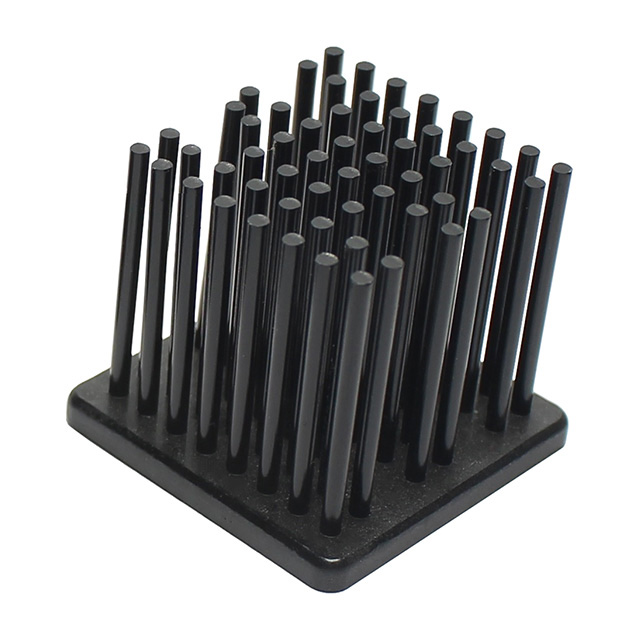

APR29 Series

Manufacturer: CTS Thermal Management Products

Catalog

HEATSINK FORGED BLK ANO TOP MNT

Part	Shelf Life	Thermal Resistance @ Natural	Thermal Resistance @ Forced Air Flow	Fin Height	Fin Height	Package Cooled	Shape	Attachment Method	Material Finish	Width	Width	Material	Type	Length	Length	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]	Fin Height [custom]	Fin Height [z]	Fin Height [z]
CTS Thermal Management Products APR29-29-21CB/A01	24 Months	11.63 °C/W	3.47 °C/W	0.811 in	20.6 mm	ASIC BGA CPU LGA	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	28.6 mm	1.126 "	Aluminum Alloy	Top Mount	1.126 in	28.6 mm
CTS Thermal Management Products APR29-29-23CB/A01	24 Months	11.21 °C/W	3.26 °C/W			ASIC BGA CPU LGA	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	28.6 mm	1.126 "	Aluminum Alloy	Top Mount	1.126 in	28.6 mm	22.61 mm	0.89 in
CTS Thermal Management Products APR29-29-12CB/A01	24 Months	12.58 °C/W	4.25 °C/W			ASIC BGA CPU LGA	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	28.6 mm	1.126 "	Aluminum Alloy	Top Mount	1.126 in	28.6 mm			0.457 in	11.6 mm
CTS Thermal Management Products APR29-29-28CB/A01	24 Months	10.43 °C/W	2.94 °C/W			ASIC BGA CPU LGA	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	28.6 mm	1.126 "	Aluminum Alloy	Top Mount	1.126 in	28.6 mm					27.6 mm	1.087 in
CTS Thermal Management Products APR29-29-15CB/A01	24 Months	12.28 °C/W			14.6 mm	ASIC BGA CPU LGA	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	28.6 mm	1.126 "	Aluminum Alloy	Top Mount	1.126 in	28.6 mm			0.575 in
CTS Thermal Management Products APR29-29-18CB/A01	24 Months	11.91 °C/W	3.73 °C/W	0.693 in	17.6 mm	ASIC BGA CPU LGA	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	28.6 mm	1.126 "	Aluminum Alloy	Top Mount	1.126 in	28.6 mm
CTS Thermal Management Products APR29-29-33CB/A01	24 Months	9.87 °C/W	2.7 °C/W	1.283 in	32.6 mm	ASIC BGA CPU LGA	Pin Fins Square	Thermal Tape Adhesive (Included)	Black Anodized	28.6 mm	1.126 "	Aluminum Alloy	Top Mount	1.126 in	28.6 mm
