3500 Series
Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power
Manufacturer: Murata Power Solutions Inc.
Catalog
Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power
Beta
⌘K
Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power
Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power
Power Inductors - SMD 1.5uH 6.5A Flat Coil SM Power
| Part | Mounting Type | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Shielding | Inductance | Current Rating (Amps) | Type | Tolerance | DC Resistance (DCR) | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

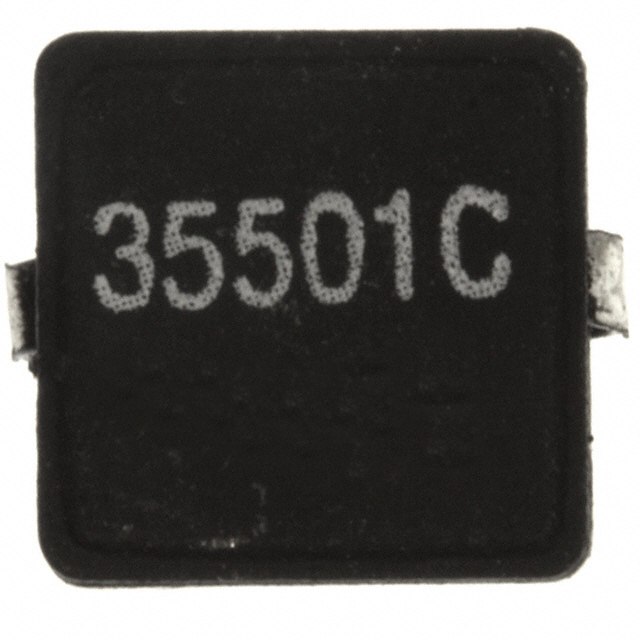

 Murata Power Solutions Inc. | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 500 nH | 11.5 A | Wirewound | 25 % | ||

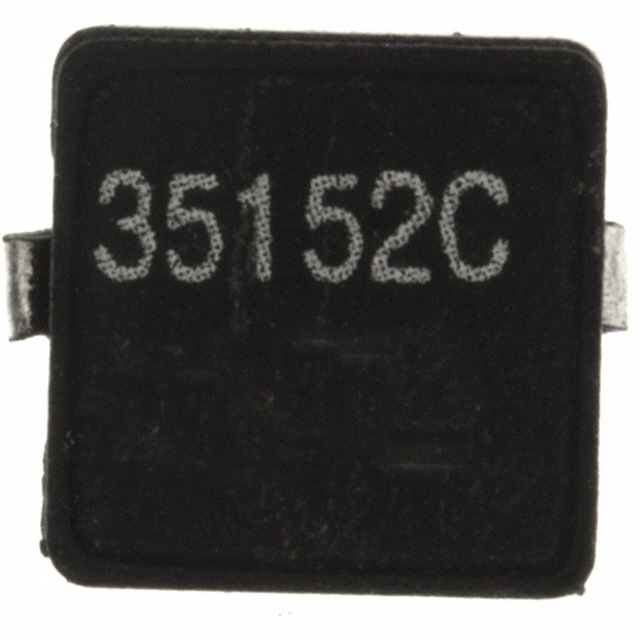

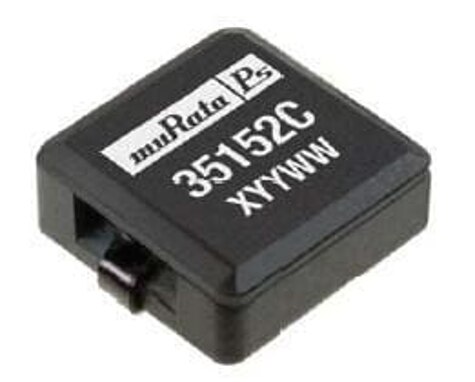

 Murata Power Solutions Inc. | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 1.5 µH | 6.5 A | Wirewound | 25 % | 19 mOhm | |
 Murata Power Solutions Inc. | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 250 nH | 15.5 A | Wirewound | 25 % | 4.5 mOhm | |

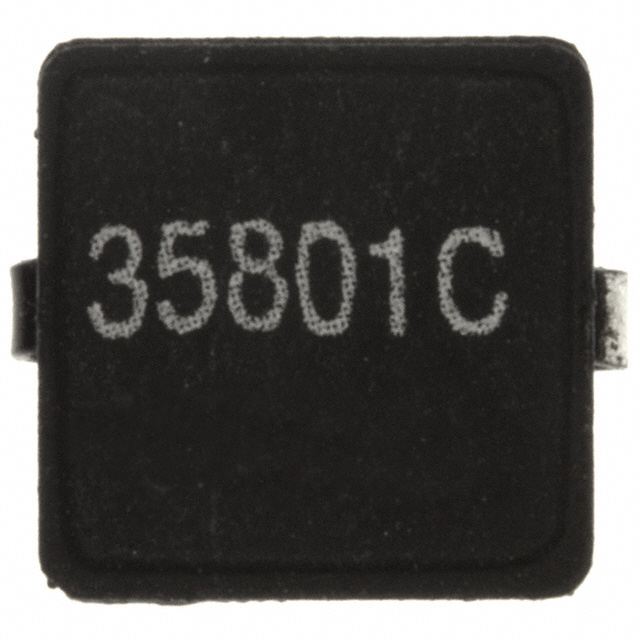

 Murata Power Solutions Inc. | Surface Mount | Nonstandard | 125 °C | -40 °C | 6.8 mm | 0.268 in | 6.8 mm | 0.268 in | 3.2 mm | 0.126 in | Unshielded | 800 nH | 9.5 A | Wirewound | 25 % | 10 mOhm |
