015133 Series

Specialized Cables PICOCLASP 1X08P 600MM OTS ASSY

Manufacturer: Molex

Catalog

Specialized Cables PICOCLASP 1X08P 600MM OTS ASSY

Catalog

Specialized Cables PICOCLASP 1X08P 600MM OTS ASSY

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Pitch - Cable [custom]	Pitch - Cable [custom]	Number of Rows	Connector Type	Color	Length	Length	Length	Number of Positions	Cable Termination	Length [x]	Length [x]	Length [x]
Molex 0151330600	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual	50 mm	0.164 ft	1.97 in	6	Crimp

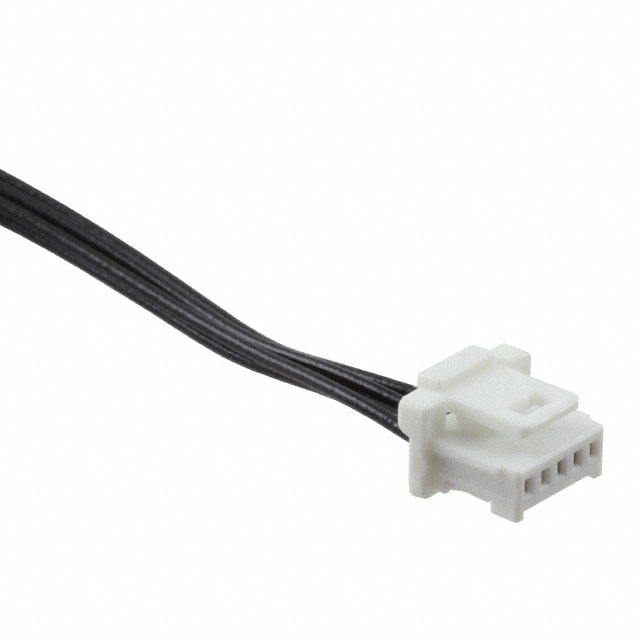

Molex 0151330506	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual	600 mm	1.97 ft		5	Crimp

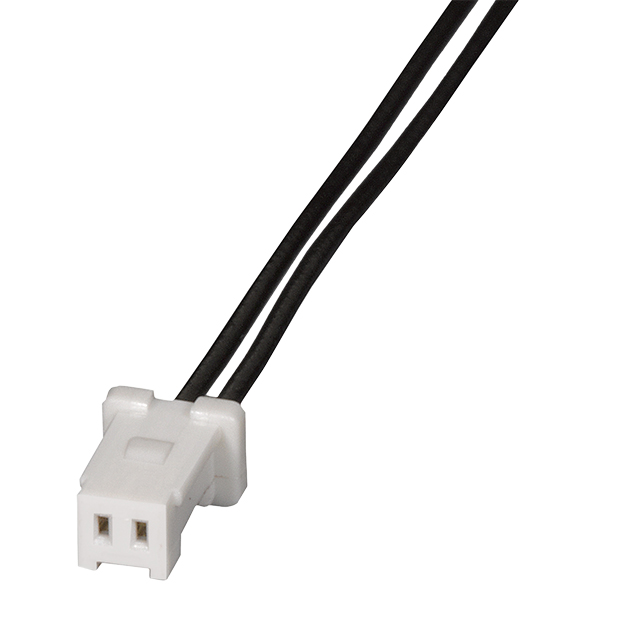

Molex 0151330205	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual				2	Crimp	0.45 m	1.48 '
Molex 0151330602	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual	150 mm	0.492 ft	5.91 in	6	Crimp
Molex 0151330502	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual	150 mm	0.492 ft	5.91 in	5	Crimp
Molex 0151330706	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual	600 mm	1.97 ft		7	Crimp

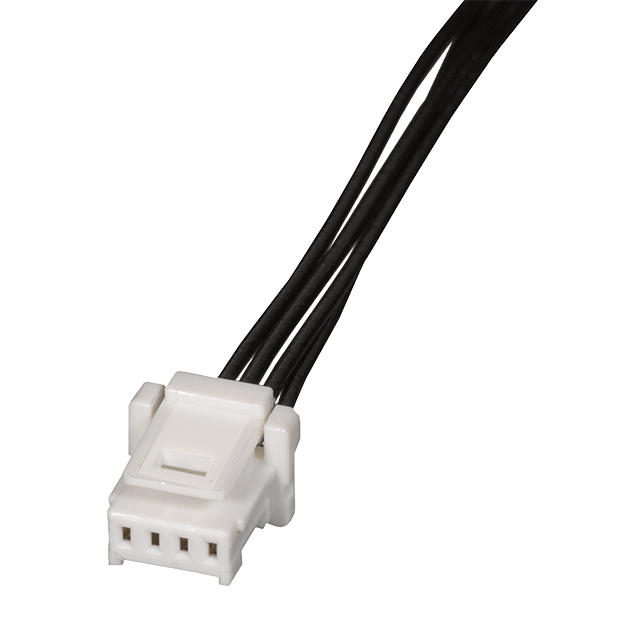

Molex 0151330406	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual	600 mm	1.97 ft		4	Crimp
Molex 0151330403	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual				4	Crimp	300 mm	0.984 ft	11.81 in

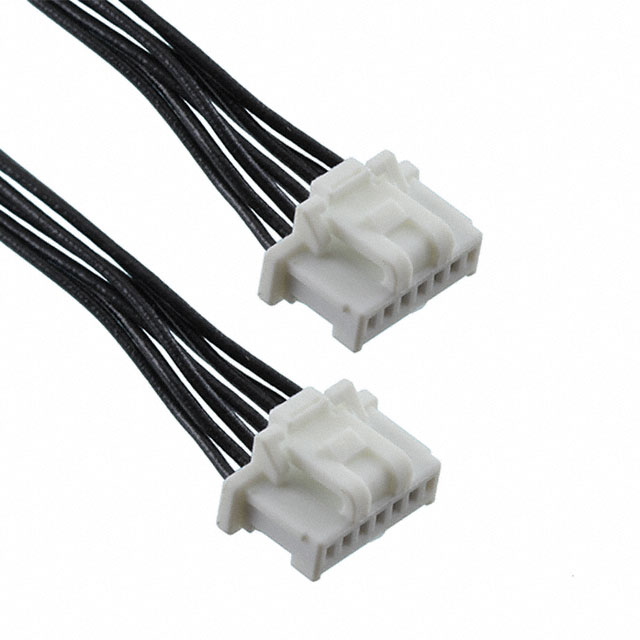

Molex 0151330705	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual				7	Crimp	0.45 m	1.48 '
Molex 0151330200	1 Ám	39.4 Áin	Tin	0.039 in	1 mm	1	Socket to Socket	Black Individual	50 mm	0.164 ft	1.97 in	2	Crimp
