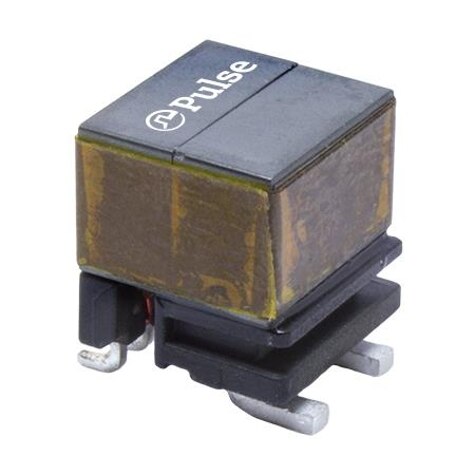

CURRENT SENSE, EP10, Series
Current Transformers 11mH 3KVdc AEC-Q200 30A DCR=0.5mOhms
Manufacturer: Pulse Electronics
Catalog
Current Transformers 11mH 3KVdc AEC-Q200 30A DCR=0.5mOhms
Beta
⌘K
Current Transformers 11mH 3KVdc AEC-Q200 30A DCR=0.5mOhms
Current Transformers 11mH 3KVdc AEC-Q200 30A DCR=0.5mOhms
Current Transformers 11mH 3KVdc AEC-Q200 30A DCR=0.5mOhms
| Part | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Frequency Range | Inductance | Type | DC Resistance (DCR) [custom] | DC Resistance (DCR) [custom] | Current Rating (Amps) | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 125 | 1 | 14.4 mm | 0.567 in | 12.8 mm | 12.2 mm | 0.48 in | 0.504 in | Surface Mount | 20 kHz | 11 mH | Invasive | 4 Ohm | 500 µOhm | 30 A | Gull Wing |
