TRA6927 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

OMNI,PH,NMO,698/1710 MHZ WHT,3 DBI,100W,

Part	VSWR	Antenna Type	Frequency Range [Max]	Frequency Range [Min]	Gain	Mounting Type	Frequency Group	Frequency (Center/Band)	Number of Bands	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Termination	Power - Max [Max]	RF Family/Standard	Applications

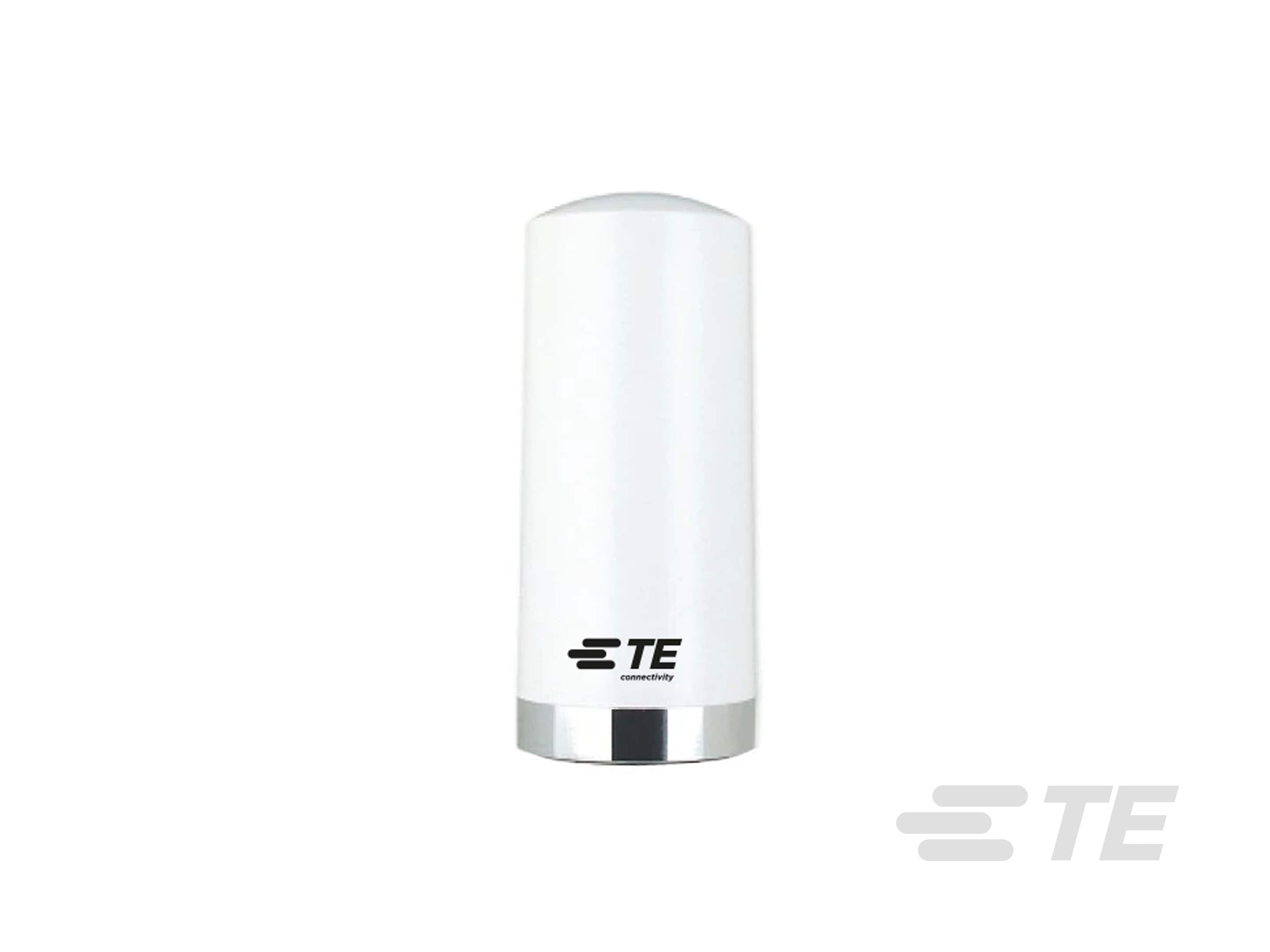

TE Connectivity AMP Connectors TRA6927M3NW-001	2.5	Whip Straight	2.7 GHz 960 MHz	1.71 GHz 698 MHz	5.5 dBi	Base Mount	Wide Band	829 MHz 2200 GHz	1	3.3 in	83.82 mm	NMO	100 W

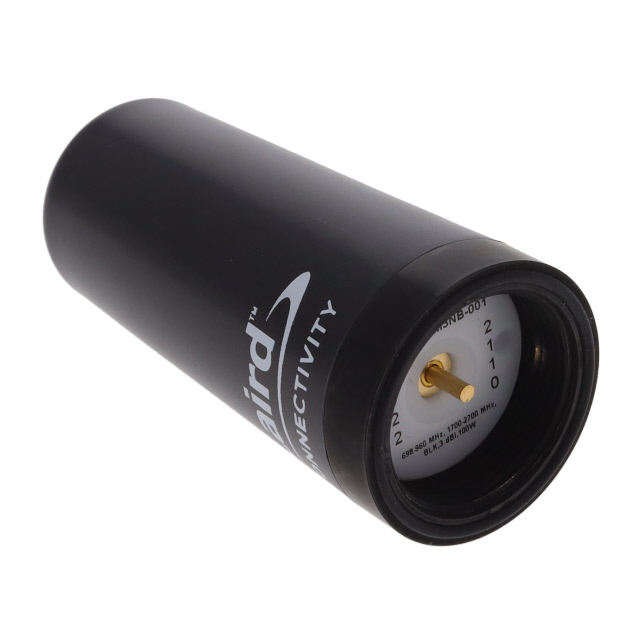

TE Connectivity AMP Connectors TRA6927M3NB-001	2.5	Dome	2.7 GHz 960 MHz	1.71 GHz 698 MHz	5.5 dBi	Base Mount	Wide Band	829 MHz 2200 GHz	1	3.3 in	83.82 mm	NMO	100 W
TE Connectivity AMP Connectors TRA6927M3PBN-001	2 2.5	Dome	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	0 dBi 1.7 dBi 2.9 dBi	Panel Mount	Wide Band	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	3.3 in	83.82 mm	N Type Female	100 W	Cellular WiFi	GSM LTE WiMax™

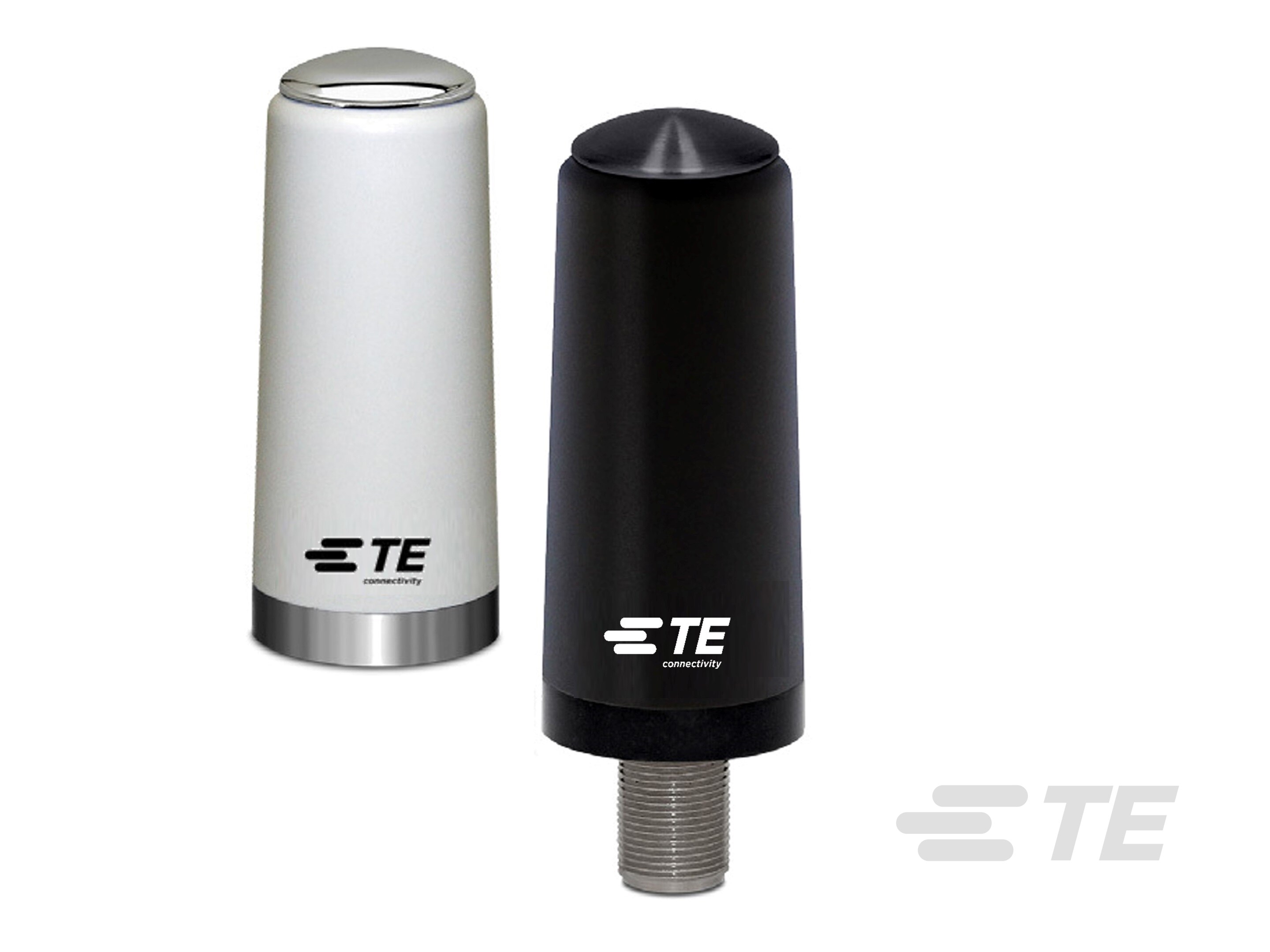

TE Connectivity AMP Connectors TRA6927M3PWN-001	2 2.5	Dome	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	0 dBi 1.7 dBi 2.9 dBi	Panel Mount	Wide Band	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	3.3 in	83.82 mm	N Type Female	100 W	Cellular WiFi	GSM LTE WiMax™
TE Connectivity AMP Connectors TRA6927M3PBN-001	2 2.5	Dome	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	0 dBi 1.7 dBi 2.9 dBi	Panel Mount	Wide Band	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	3.3 in	83.82 mm	N Type Female	100 W	Cellular WiFi	GSM LTE WiMax™

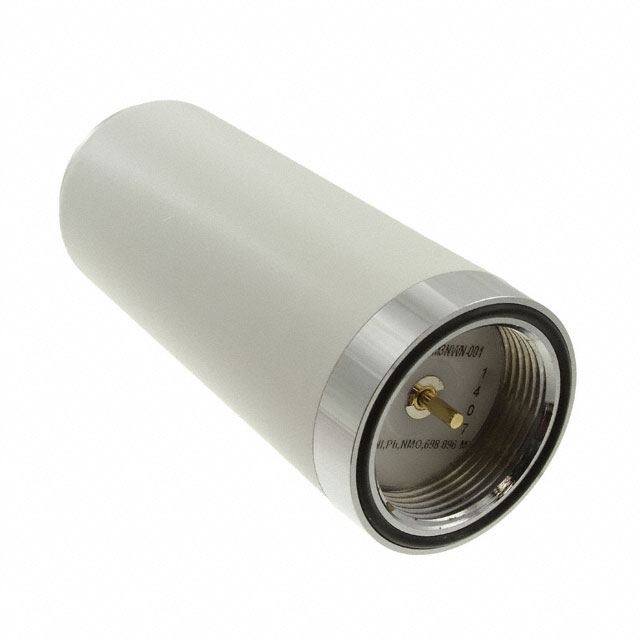

TE Connectivity AMP Connectors TRA6927M3NWN-001	2 2.5	Dome	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	0 dBi 1.7 dBi 2.9 dBi	Base Mount	Wide Band	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	3.3 in	83.82 mm	NMO	100 W	Cellular WiFi	GSM LTE WiMax™
TE Connectivity AMP Connectors TRA6927M3PWN-001	2 2.5	Dome	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	0 dBi 1.7 dBi 2.9 dBi	Panel Mount	Wide Band	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	3.3 in	83.82 mm	N Type Female	100 W	Cellular WiFi	GSM LTE WiMax™
TE Connectivity AMP Connectors TRA6927M3NWN-001	2 2.5	Dome	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	0 dBi 1.7 dBi 2.9 dBi	Base Mount	Wide Band	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	3.3 in	83.82 mm	NMO	100 W	Cellular WiFi	GSM LTE WiMax™
TE Connectivity AMP Connectors TRA6927M3NBN-001	2 2.5	Dome	1.99 GHz 2.7 GHz 960 MHz	1.71 GHz 2.1 GHz 698 MHz	0 dBi 1.7 dBi 2.9 dBi	Base Mount	Wide Band	1.8 GHz 1.9 GHz 2.3 GHz 2.5 GHz 2.6 GHz 700 MHz 850 MHz 900 MHz	2	3.3 in	83.82 mm	NMO	100 W	Cellular WiFi	GSM LTE WiMax™
TE Connectivity AMP Connectors TRA6927M3NW-001	2.5	Whip Straight	2.7 GHz 960 MHz	1.71 GHz 698 MHz	5.5 dBi	Base Mount	Wide Band	829 MHz 2200 GHz	1	3.3 in	83.82 mm	NMO	100 W
