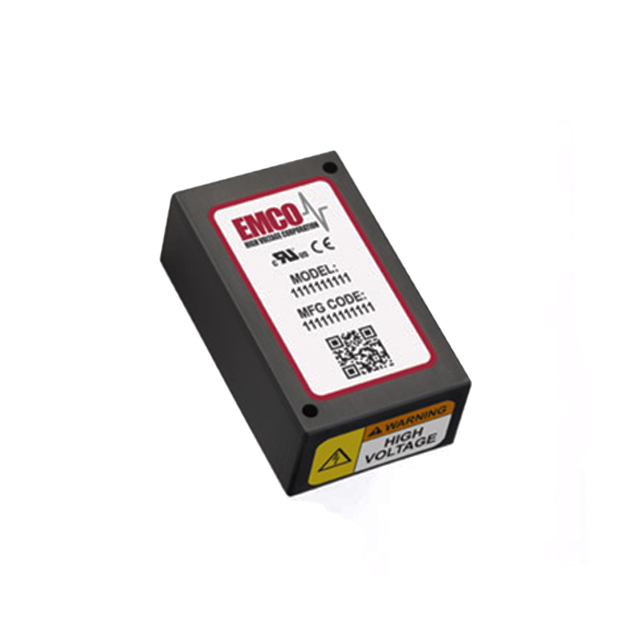

E Series
Manufacturer: XP Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE SINGLE O/P, DC-HV DC PCB MOUNT, 3W, 3000V
| Part | Features | Voltage - Input (Min) [Min] | Type | Number of Outputs | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Voltage - Output 1 | Voltage - Isolation | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Mounting Type | Voltage - Input (Max) [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP Power | Proportional Output | 0.7 V | High Voltage - Isolated Module | 1 | ITE (Commercial) | -10 °C | 60 °C | 5-DIP Module | 3000 V | 3.5 kV | 1 mA | 2.5 " | 1.5 " | 63.5 mm | 38.1 mm | 0.85 " | 21.6 mm | Through Hole | 15 V | 3 W |
