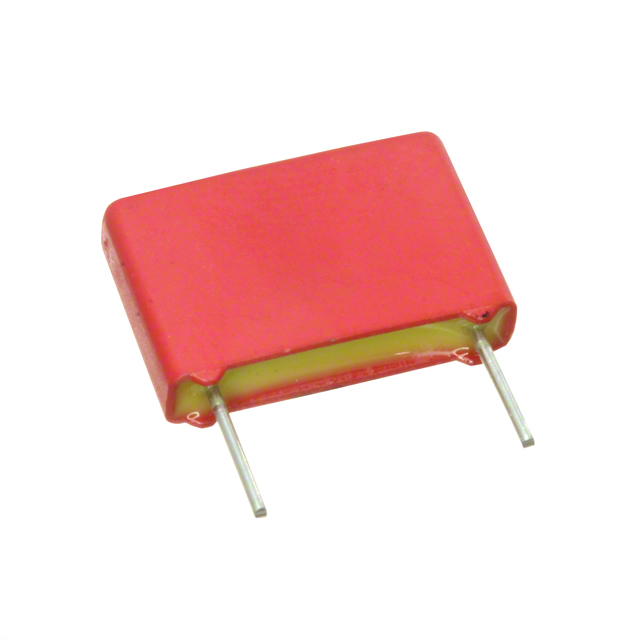

FKP 3 Series
Manufacturer: WIMA
Beta
⌘K
FILM CAPACITORS FKP 3 330 PF 100 VDC 3X8.5X10 PCM 7.5
| Part | Capacitance | Lead Spacing | Lead Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Voltage Rating - AC | Termination | Package / Case | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Applications | Mounting Type | Tolerance | Dielectric Material | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.0033 µF | 0.394 in | 10 mm | 100 °C | -55 C | 400 V | 250 V | PC Pins | Radial | 0.374 " | 9.5 mm | DV/DT High Frequency High Pulse Switching | Through Hole | 5 % | Polypropylene (PP) | 13 mm | 4 mm | 0.512 " | 0.157 " |
