FB Series

Catalog

FERRITE BEADS 963-LBMGA160808T601R RPLCMT PN 0603 600OHM 25% HI CURR

Part	DC Resistance (DCR) (Max) [Max]	Current Rating (Max) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Filter Type	Height (Max) [z]	Height (Max) [z]	Impedance @ Frequency	Number of Lines	Package / Case	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Ratings	Size / Dimension [y]	Height (Max) [z]	Height (Max)	Height (Max) [Max] [z]	Height (Max) [Max] [z]	DC Resistance (DCR) (Max)
Taiyo Yuden FBMH1608HM601-T8	170 mOhm	900 mA	0.031 in	1.6 mm	0.8 mm	0.063 "	Power Line	0.9 mm	0.035 in	600 Ohms	1	1608 Metric	0603	Surface Mount	125 °C	-40 C
Taiyo Yuden FBMH2012HM121-TV	32 mOhm	2.5 A	0.049 "	2 mm		0.079 in	Power Line	1.05 mm	0.041 in	120 Ohms	1		0805	Surface Mount	125 °C	-40 C	AEC-Q200	1.25 mm
Taiyo Yuden FBMJ3216HS480NT8	5 mOhm	6 A	0.063 "	3.2 mm		0.126 "	Power Line	1.3 mm		48 Ohms	1		1206 (3216 Metric)	Surface Mount	125 °C	-40 C		1.6 mm	0.051 in

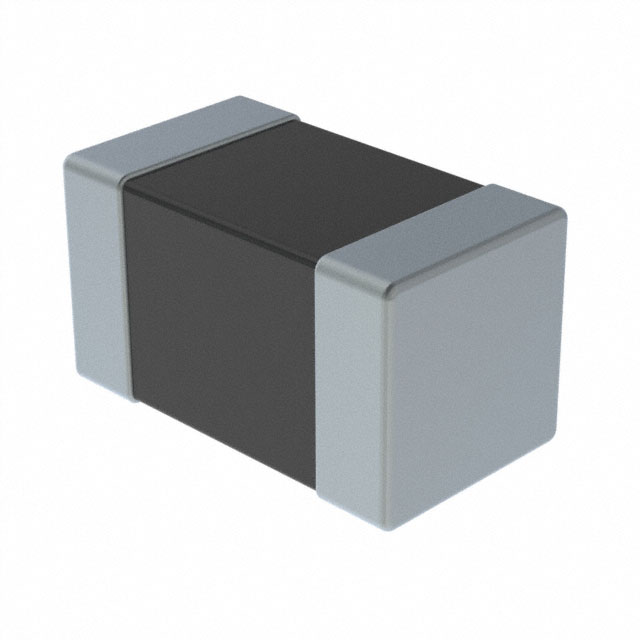

Taiyo Yuden FBMH4525HM102NTV	60 mOhm	3 A					Power Line			1 kOhms	1	4525 Metric	1810	Surface Mount	125 °C	-40 C	AEC-Q200			2.8 mm	0.11 in
Taiyo Yuden FBMH3225HM202NT	130 mOhm	1.2 A	0.098 in	3.2 mm		0.126 "	Power Line			2 kOhms	1	3225 Metric	1210	Surface Mount	125 °C	-40 C		2.5 mm		2.8 mm	0.11 in
Taiyo Yuden FBMH2016HM121NTV	15 mOhm		0.063 "	2 mm		0.079 in	Power Line	1.8 mm		120 Ohms	1		0806 (2016 Metric)	Surface Mount	125 °C	-40 C	AEC-Q200	1.6 mm			0.071 in
Taiyo Yuden FBMJ3216HM600-T	10 mOhm	4 A	0.063 "	3.2 mm		0.126 "	Power Line	1.3 mm		60 Ohms	1		1206 (3216 Metric)	Surface Mount	125 °C	-40 C		1.6 mm	0.051 in
Taiyo Yuden FBMH1608HM102-TV	350 mOhm	600 mA	0.031 in 0.032 in	1.6 mm	0.8 mm	0.063 "	Power Line	0.9 mm	0.035 in	1 kOhms	1	1608 Metric	0603	Surface Mount	125 °C	-40 C	AEC-Q200	0.8 mm
Taiyo Yuden FBMH3216HM221NTV	20 mOhm	4 A	0.063 "	3.2 mm		0.126 "	Power Line	1.8 mm		220 Ohms	1		1206 (3216 Metric)	Surface Mount	125 °C	-40 C	AEC-Q200	1.6 mm			0.071 in
Taiyo Yuden FBMJ1608HS220NTR		7.5 A	0.031 in	1.6 mm	0.8 mm	0.063 "	Power Line			22 Ohms	1	1608 Metric	0603	Surface Mount	125 °C	-40 C					0.039 in	1 mm	4 mOhm
