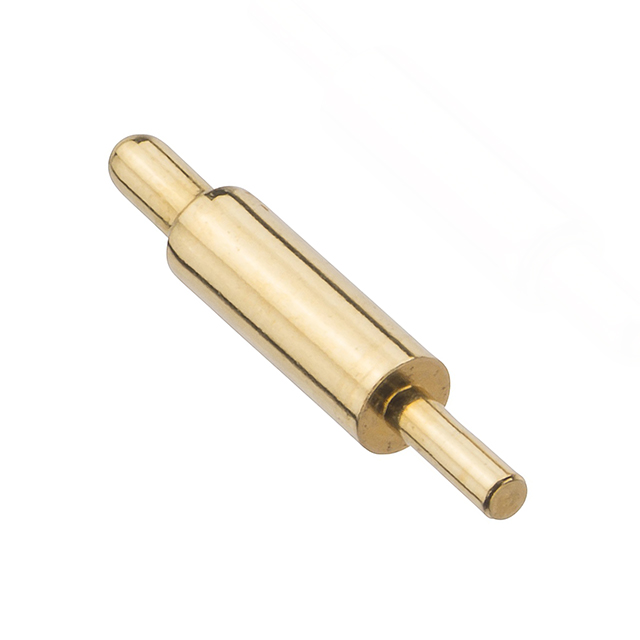

P70-23000 Series
Manufacturer: Harwin Inc.
Beta
⌘K
CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Material | Contact Finish | Maximum Working Height [Max] | Maximum Working Height [Max] | Minimum Working Height [z] | Minimum Working Height [z] | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Recommended Working Height | Recommended Working Height | Operating Force - Mid Compression | Plunger Size [diameter] | Plunger Size [diameter] | Mounting Type | Contact Type | Pad Layout Dimension [diameter] | Pad Layout Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 85 °C | -40 C | 2 A | Brass | Gold | 0.205 in | 5.21 mm | 0.181 in | 4.6 mm | 16 µin | 0.41 µm | 10000 | 4.9 mm | 0.193 in | 84.64 gf | 0.035 in | 0.9 mm | Through Hole | Sleeve & Plunger (Pogo Pins) | 1.8 mm | 0.071 in |
