M2015S2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Actuator Material | Electrical Life | Actuator Length | Switch Function | Voltage Rating - DC | Features | Termination Style | Circuit | Voltage Rating - AC | Bushing Thread | Current Rating (Amps) | Illumination | Actuator Type | Panel Cutout Dimensions [diameter] | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

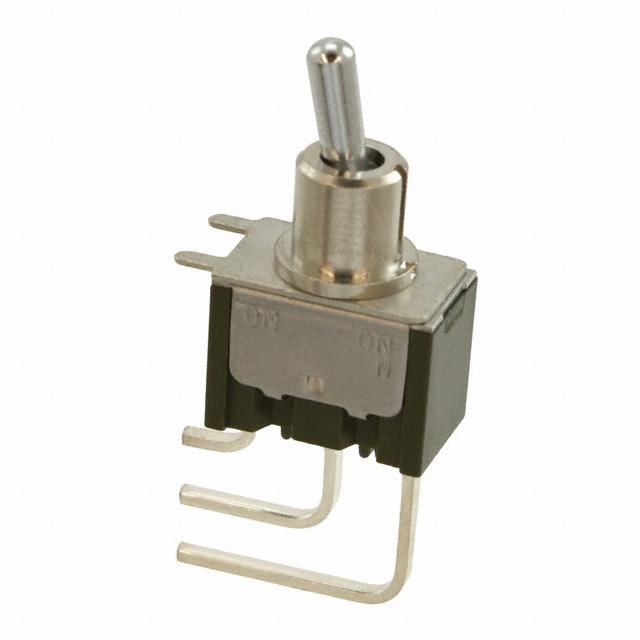

 NKK Switches | Brass Chrome Plated | 25000 Steps | 6.86 mm | On-Mom | 30 V | Epoxy Sealed Terminals | PC Pin | SPDT | 125 V | Unthreaded | 3 A 6 A | Non-Illuminated | Standard Round | 6.5 mm | Right Angle Through Hole Vertical | 85 °C | -30 ░C | |

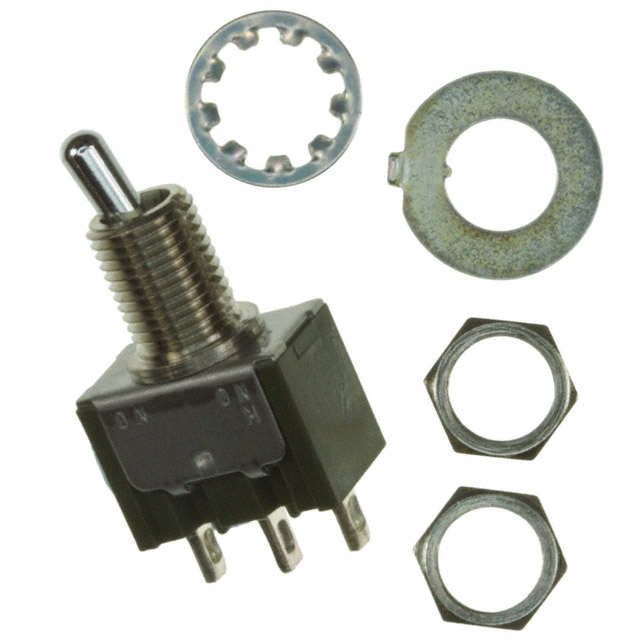

 NKK Switches | Brass Chrome Plated | 25000 Steps | On-Mom | 30 V | Epoxy Sealed Terminals | Solder Lug | SPDT | 125 V | 1/4-40 | 3 A 6 A | Non-Illuminated | Standard Round | 6.5 mm | Panel Mount | 85 °C | -30 ░C | 5.08 mm |
