NP0115A Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSH SPST-NO 0.4VA 28V
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Actuator Marking | Circuit | Type | Current Rating (Amps) | Color - Actuator/Cap | Illumination Type, Color | Voltage Rating - AC | Mounting Type | Illumination Voltage (Nominal) | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

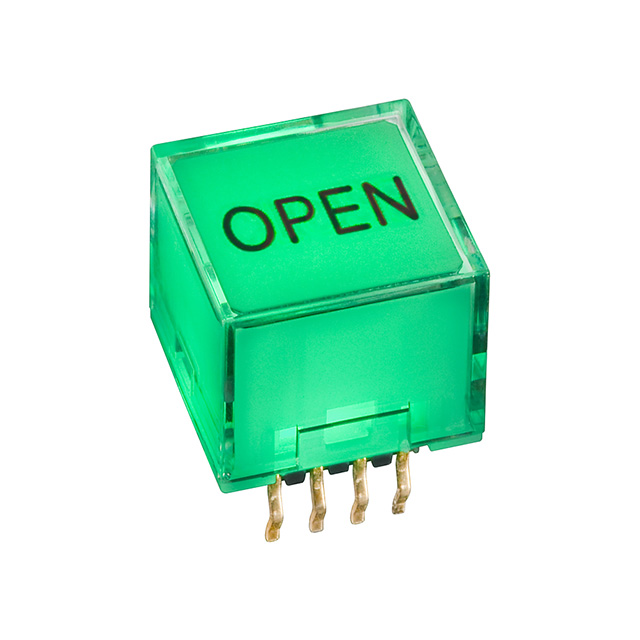

 NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | OPEN/CLOSE | SPST-NO | Illuminated Standard | 0.4 VA | Green Red | Green/Red LED | 28 V | Through Hole | 2 VDC 3.5 VDC | Alternating Legend Button Square | 50 °C | -25 °C | Off-Mom | PC Pin |
 NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | OPEN/CLOSE | SPST-NO | Illuminated Standard | 0.4 VA | Amber Blue | Amber Blue LED | 28 V | Through Hole | 2 VDC 3.2 VDC | Alternating Legend Button Square | 50 °C | -25 °C | Off-Mom | PC Pin |

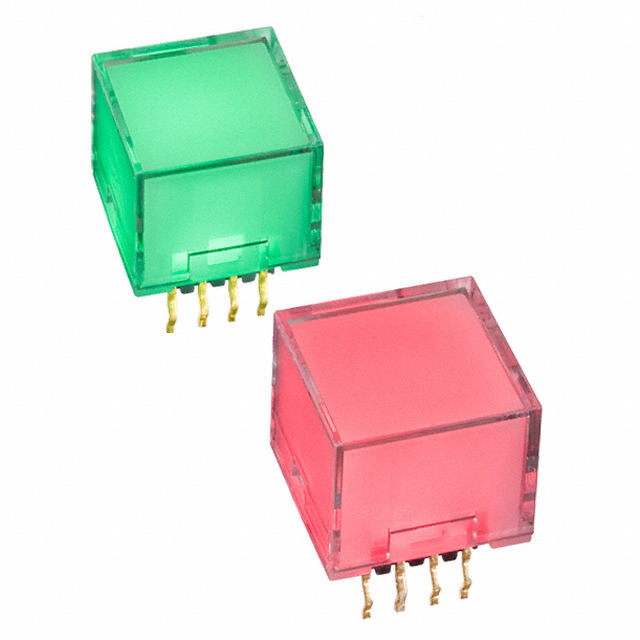

 NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | No Marking | SPST-NO | Illuminated Standard | 0.4 VA | Clear | Green/Red LED | 28 V | Through Hole | 2 VDC 3.5 VDC | Button Square | 50 °C | -25 °C | Off-Mom | PC Pin |
 NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | No Marking | SPST-NO | Illuminated Standard | 0.4 VA | Green/Red LED | 28 V | Through Hole | 2 VDC 3.5 VDC | Button Square | 50 °C | -25 °C | Off-Mom | PC Pin | |
 NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | No Marking | SPST-NO | Standard | 0.4 VA | Black | 28 V | Through Hole | Button Square | 70 °C | -25 °C | Off-Mom | PC Pin | ||

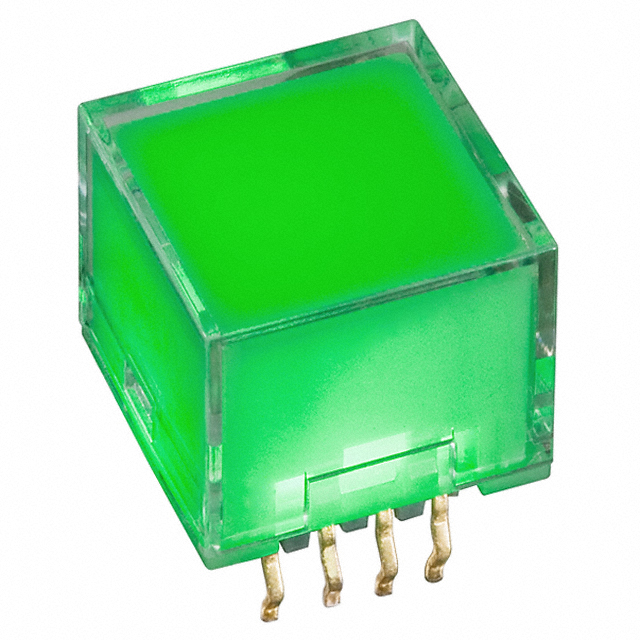

 NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | No Marking | SPST-NO | Illuminated Standard | 0.4 VA | Clear | Green LED | 28 V | Through Hole | 3.5 VDC | Button Square | 50 °C | -25 °C | Off-Mom | PC Pin |
NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | No Marking | SPST-NO | Illuminated Standard | 0.4 VA | Green LED | 28 V | Through Hole | 3.5 VDC | Button Square | 50 °C | -25 °C | Off-Mom | PC Pin | |
NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | START/STOP (Alternating) | SPST-NO | Illuminated Standard | 0.4 VA | Amber Blue | Amber Blue LED | 28 V | Through Hole | 2 VDC 3.2 VDC | Alternating Legend Button Square | 50 °C | -25 °C | Off-Mom | PC Pin |
NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | No Marking | SPST-NO | Standard | 0.4 VA | 28 V | Through Hole | Button Square | 70 °C | -25 °C | Off-Mom | PC Pin | |||
NKK Switches | 500000 Cycles | 500000 Cycles | 28 V | ON/OFF | SPST-NO | Illuminated Standard | 0.4 VA | Amber Blue | Amber Blue LED | 28 V | Through Hole | 2 VDC 3.2 VDC | Alternating Legend Button Square | 50 °C | -25 °C | Off-Mom | PC Pin |
