PRPC035 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 35POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Material	Insulation Material	Current Rating (Amps)	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish - Post	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Mounting Type	Shrouding	Fastening Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Type	Number of Rows	Insulation Color	Insulation Height	Insulation Height	Style	Contact Shape	Number of Positions	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Overall Contact Length
Sullins Connector Solutions PRPC035SFAN-RC	Flash	Flash	8.08 mm	0.318 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A	13.63 mm	0.537 in	Gold	All	3.05 mm	0.12 in	Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin	1	Black	0.098 "	2.5 mm	Board to Board Cable	Square	35

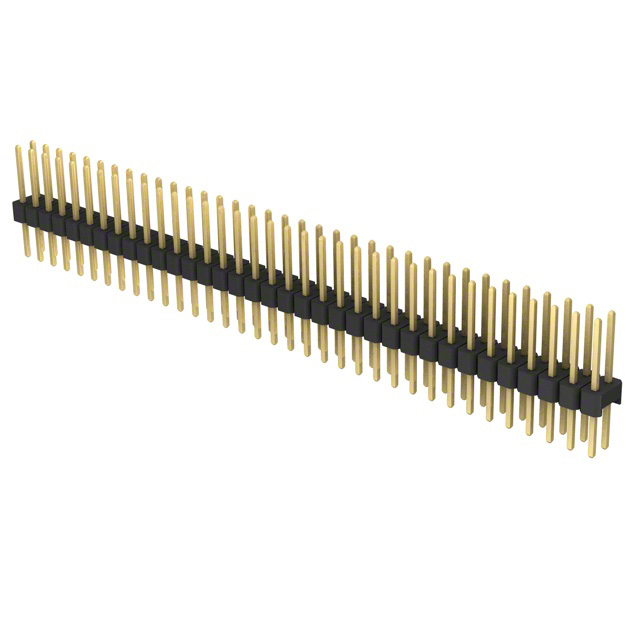

Sullins Connector Solutions PRPC035DFBN-RC	Flash	Flash	8.08 mm	0.318 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A			Gold	All	5.58 mm	0.22 in	Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin		Black	0.098 "	2.5 mm	Board to Board Cable	Square	70	0.637 in	16.17 mm	2	0.1 in	2.54 mm

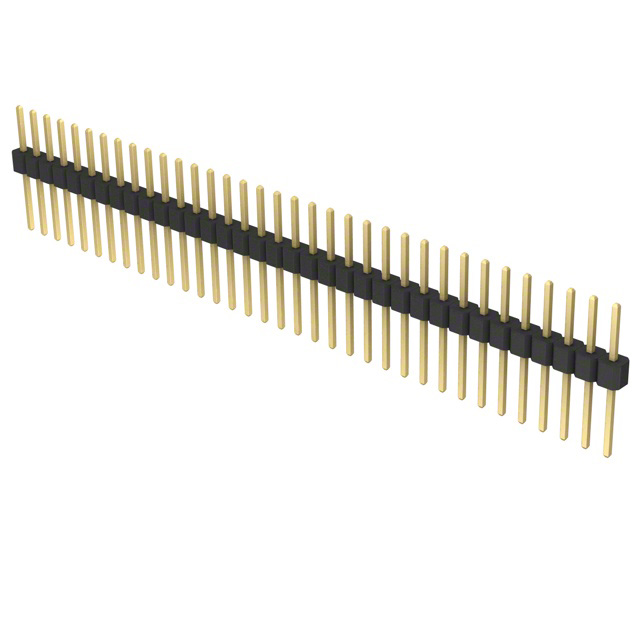

Sullins Connector Solutions PRPC035SACN-RC	Flash	Flash	5.84 mm	0.23 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A	16.47 mm	0.648 in	Gold	All	8.13 mm	0.32 in	Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin	1	Black	0.098 "	2.5 mm	Board to Board Cable	Square	35

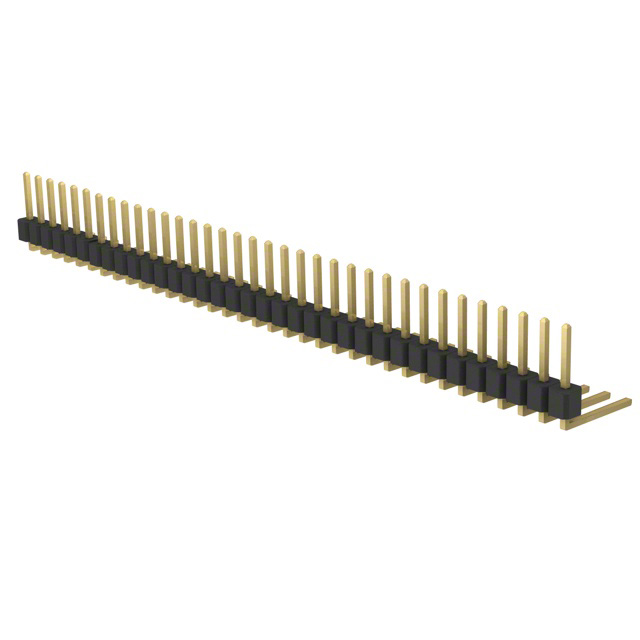

Sullins Connector Solutions PRPC035SBCN-M71RC	Flash	Flash	5.84 mm	0.23 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A			Gold	All	8.13 mm	0.32 in	Right Angle Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin	1	Black	0.098 "	2.5 mm	Board to Board Cable	Square	35
Sullins Connector Solutions PRPC035DFAN-RC	Flash	Flash	8.08 mm	0.318 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A	13.63 mm	0.537 in	Gold	All	3.05 mm	0.12 in	Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin		Black	0.098 "	2.5 mm	Board to Board Cable	Square	70			2	0.1 in	2.54 mm
Sullins Connector Solutions PRPC035DABN-RC	Flash	Flash	5.84 mm	0.23 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A			Gold	All	5.84 mm	0.23 "	Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin		Black	0.098 "	2.5 mm	Board to Board Cable	Square	70	14.18 mm		2	0.1 in	2.54 mm	0.558 in
Sullins Connector Solutions PRPC035SAAN-RC	Flash	Flash	5.84 mm	0.23 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A			Gold	All	3.05 mm	0.12 in	Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin	1	Black	0.098 "	2.5 mm	Board to Board Cable	Square	35	11.39 mm					0.448 in
Sullins Connector Solutions PRPC035DAAN-RC	Flash	Flash	5.84 mm	0.23 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A			Gold	All	3.05 mm	0.12 in	Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin		Black	0.098 "	2.5 mm	Board to Board Cable	Square	70	11.39 mm		2	0.1 in	2.54 mm	0.448 in

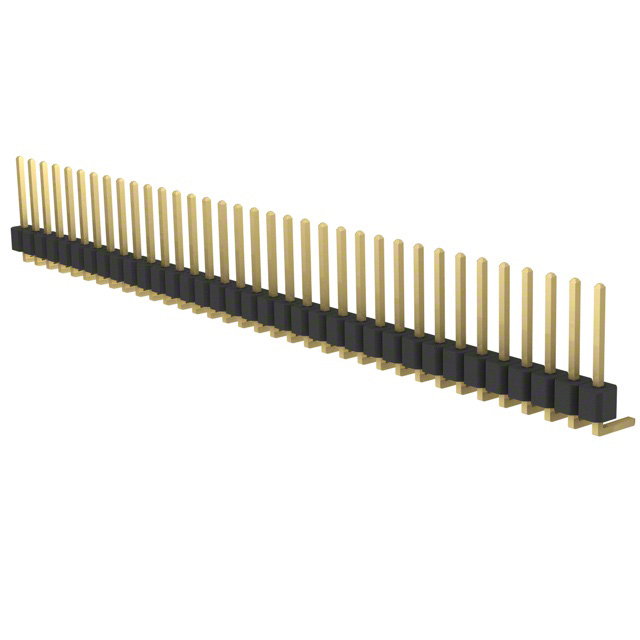

Sullins Connector Solutions PRPC035SGAN-M71RC	Flash	Flash	8.08 mm	0.318 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A			Gold	All	3.05 mm	0.12 in	Right Angle Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin	1	Black	0.098 "	2.5 mm	Board to Board Cable	Square	35

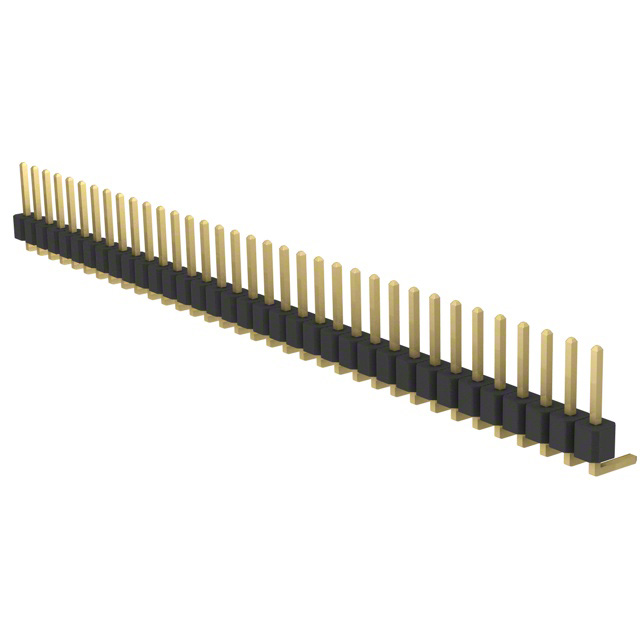

Sullins Connector Solutions PRPC035SBAN-M71RC	Flash	Flash	5.84 mm	0.23 in	UL94 V-0	Brass	Polybutylene Terephthalate (PBT)	3 A			Gold	All	3.05 mm	0.12 in	Right Angle Through Hole	Unshrouded	Push-Pull	Gold	0.1 "	2.54 mm	Solder	-40 C	105 ░C	Header Breakaway	Male Pin	1	Black	0.098 "	2.5 mm	Board to Board Cable	Square	35
