628-24W Series
Manufacturer: EDAC Inc.
Beta
⌘K

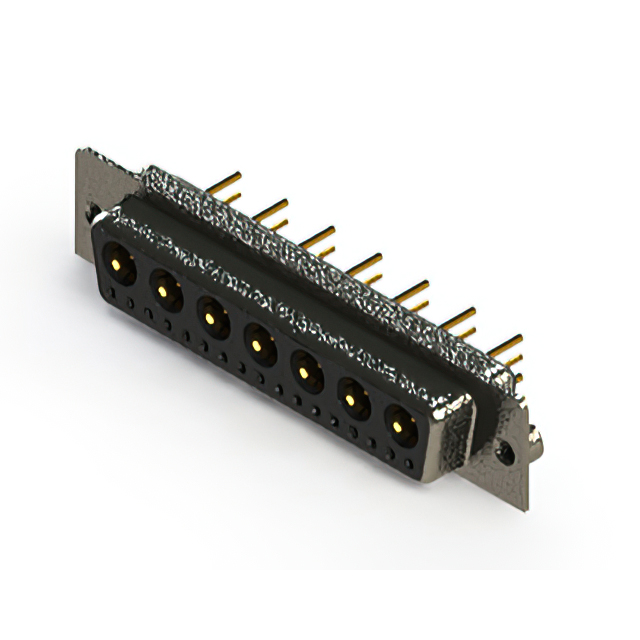

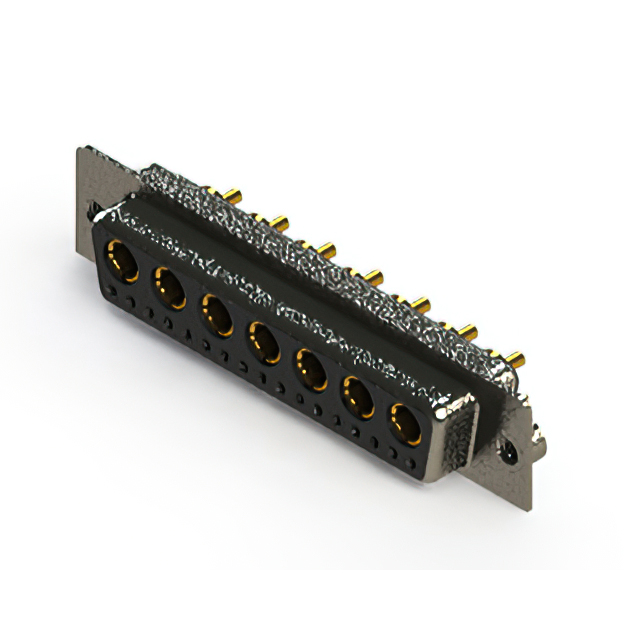

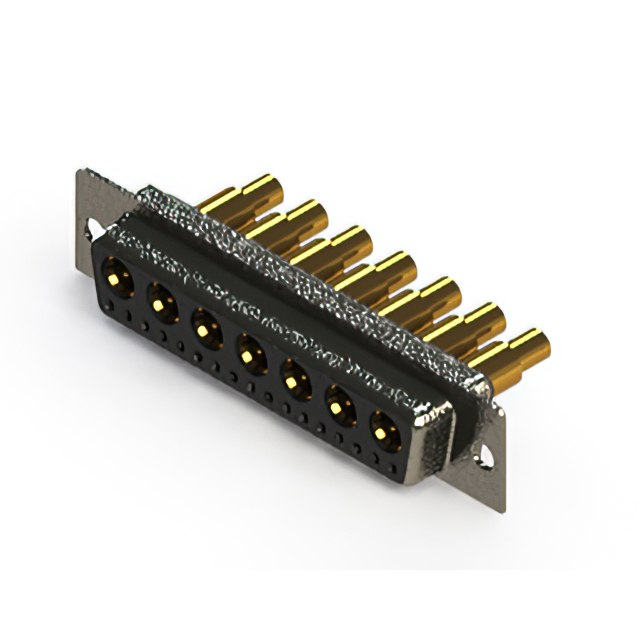

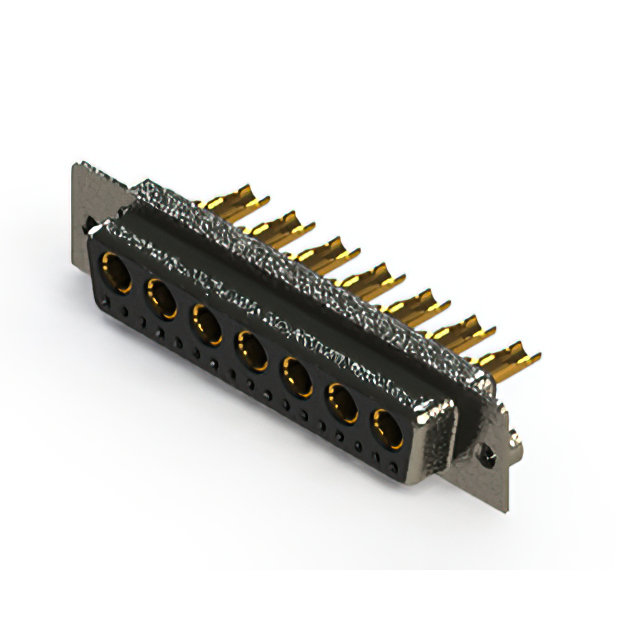

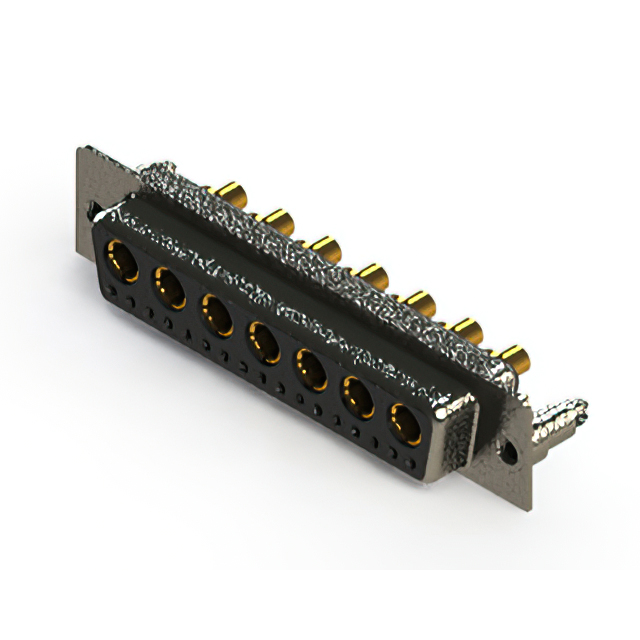

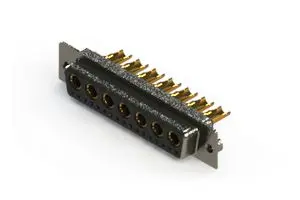

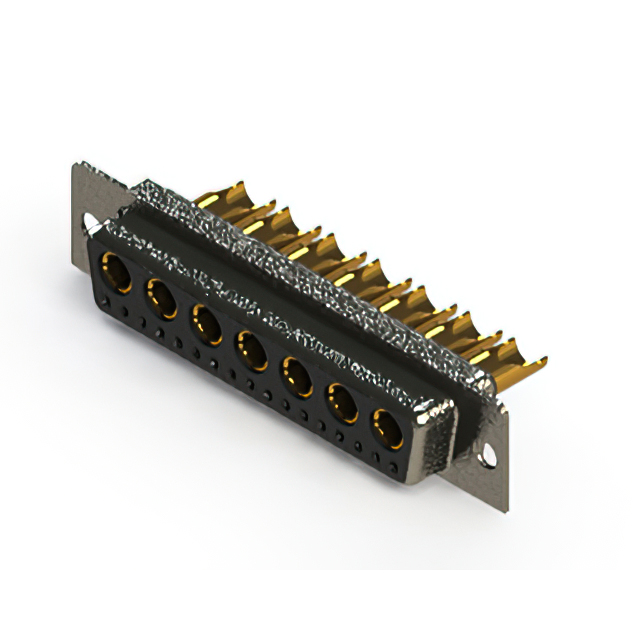

CONN D-SUB RCPT 24POS VERT SLDR
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Connector Type | Flange Feature | Mounting Type | Features | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Material Flammability Rating | Connector Style | Termination | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Number of Positions [custom] | Number of Positions [custom] | Contact Finish | Shell Material, Finish | Contact Type | Current Rating (Amps) | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | 4-40 | Through Hole | Board Lock Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | Solder | 20A 5A | 30 Áin | 0.76 Ám | 2 | 7 | 17 | Gold | Nickel Plated Steel | Signal and Power | ||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | M3 | Through Hole | Board Lock Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | Solder | 30 Áin | 0.76 Ám | 2 | 7 | 17 | Gold | Signal and Power | 5 A 30 A | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | 7 | 17 | Gold | Nickel Plated Steel | Signal and Power | 5 A 40 A | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | M3 | Through Hole | Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | Solder | 10A 5A | 2 | 7 | 17 | Gold | Nickel Plated Steel | Signal and Power | Flash | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | Board Side (4-40) | Through Hole | Board Lock Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | Solder | 30 Áin | 0.76 Ám | 2 | 7 | 17 | Gold | Signal and Power | 5 A 30 A | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | Board Side (M3) | Free Hanging (In-Line) | Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | 7 | 17 | Gold | Signal and Power | 5 A 30 A | ||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | Board Side (4-40) | Through Hole | Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | Solder | 10A 5A | 2 | 7 | 17 | Gold | Nickel Plated Steel | Signal and Power | Flash | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | Board Side (M3) | Free Hanging (In-Line) | Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | 20A 5A | 2 | 7 | 17 | Gold | Nickel Plated Steel | Signal and Power | Flash | ||||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | Board Side (M3) | Through Hole | Board Lock Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | Solder | 20A 5A | 30 Áin | 0.76 Ám | 2 | 7 | 17 | Gold | Signal and Power | |||
 EDAC Inc. | 125 VDC | Polyester Thermoplastic | -55 C | 125 °C | Black | Copper Alloy | Receptacle Female Sockets | Board Side (4-40) | Free Hanging (In-Line) | Shielded | 5 | D DD | 24W7 | UL94 V-0 | Combo D-Sub | 30 Áin | 0.76 Ám | 2 | 7 | 17 | Gold | Signal and Power | 5 A 40 A |
