726-017 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 17POS 0.125

Part	Material - Insulation	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row [custom]	Pitch	Pitch	Mounting Type	Contact Type	Read Out	Gender	Color	Number of Rows	Card Type	Termination

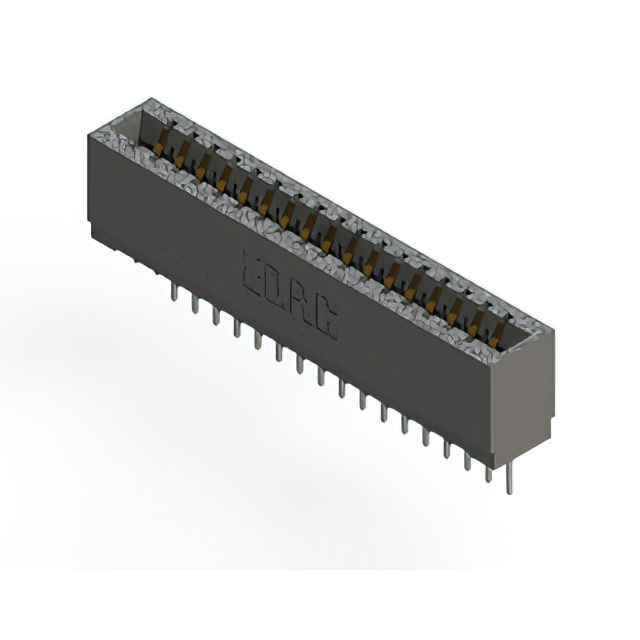

EDAC Inc. 726-017-527-101	Polyester Thermoplastic	1	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30 Áin	0.76 Ám	17	3.18 mm	0.125 in	Through Hole	Cantilever	Single	Female	Black	1	Non Specified - Single Edge	Press-Fit
EDAC Inc. 726-017-541-101	Polyester Thermoplastic	1	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30 Áin	0.76 Ám	17	3.18 mm	0.125 in	Through Hole	Cantilever	Single	Female	Black	1	Non Specified - Single Edge	Press-Fit Wire Wrap

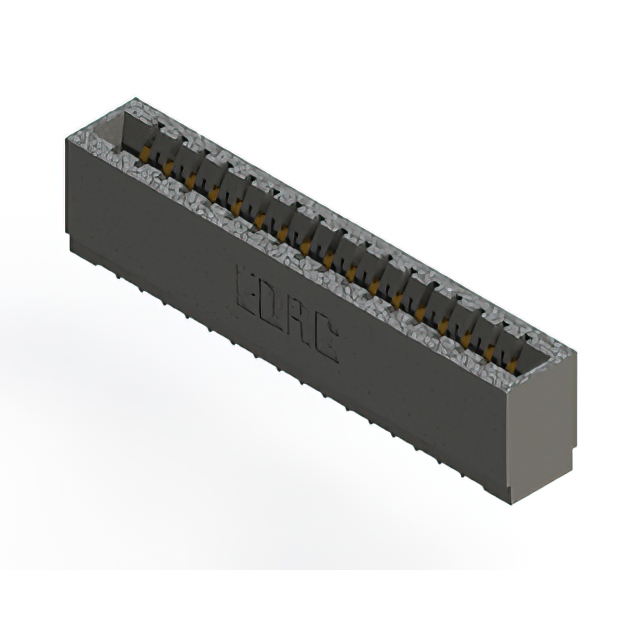

EDAC Inc. 726-017-520-101	Polyester Thermoplastic	1	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30 Áin	0.76 Ám	17	3.18 mm	0.125 in	Through Hole	Cantilever	Single	Female	Black	1	Non Specified - Single Edge	Press-Fit

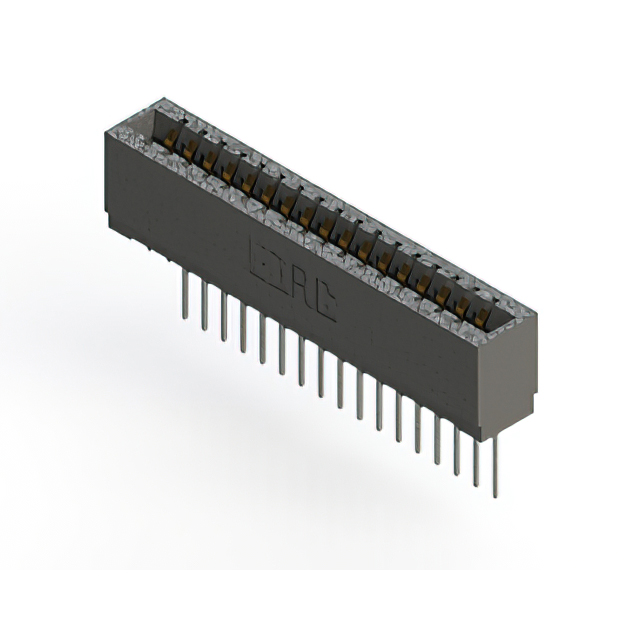

EDAC Inc. 726-017-545-101	Polyester Thermoplastic	1	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30 Áin	0.76 Ám	17	3.18 mm	0.125 in	Through Hole	Cantilever	Single	Female	Black	1	Non Specified - Single Edge	Press-Fit Wire Wrap

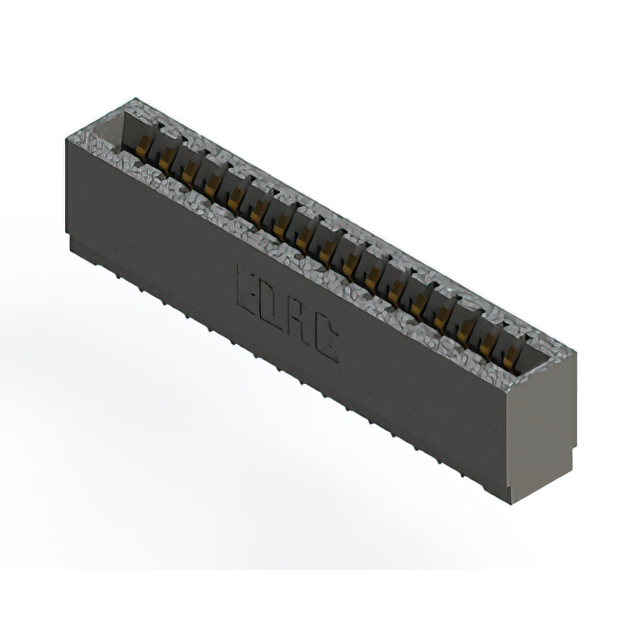

EDAC Inc. 726-017-525-101	Polyester Thermoplastic	1	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30 Áin	0.76 Ám	17	3.18 mm	0.125 in	Through Hole	Cantilever	Single	Female	Black	1	Non Specified - Single Edge	Press-Fit
EDAC Inc. 726-017-540-101	Polyester Thermoplastic	1	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30 Áin	0.76 Ám	17	3.18 mm	0.125 in	Through Hole	Cantilever	Single	Female	Black	1	Non Specified - Single Edge	Press-Fit Wire Wrap

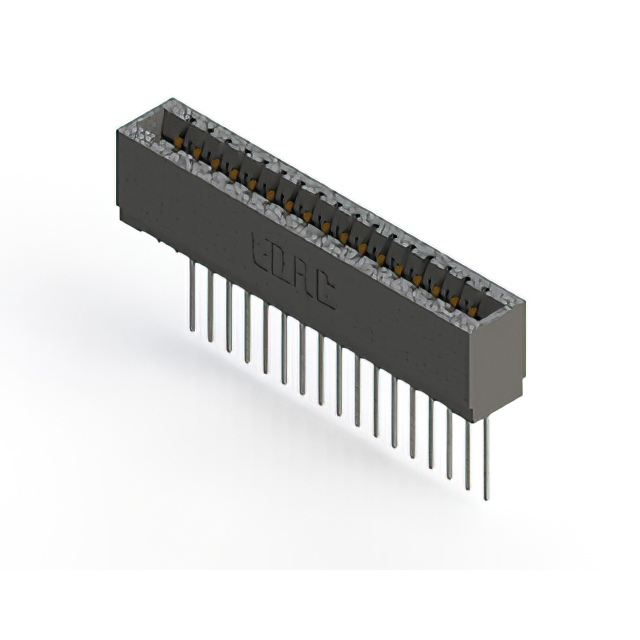

EDAC Inc. 726-017-553-101	Polyester Thermoplastic	1	-40 C	105 ░C	Copper Alloy	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	30 Áin	0.76 Ám	17	3.18 mm	0.125 in	Through Hole	Cantilever	Single	Female	Black	1	Non Specified - Single Edge	Press-Fit Wire Wrap
